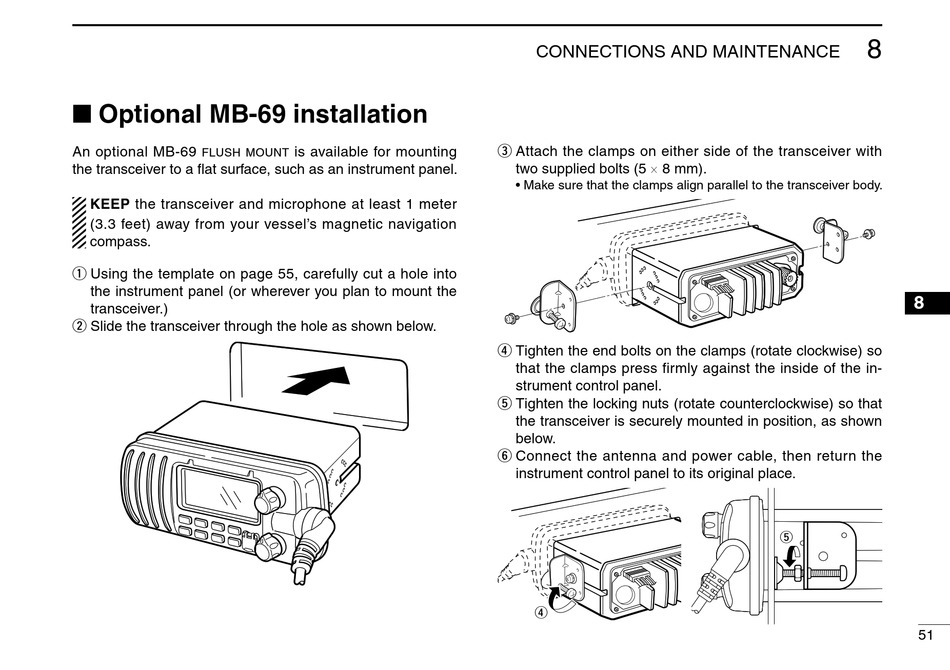

n Optional MB-69 installation
An optional MB-69
flush mount
the transceiver to a flat surface, such as an instrument panel.
KEEP the transceiver and microphone at least 1 meter
(3.3 feet) away from your vessel's magnetic navigation
compass.
q Using the template on page 55, carefully cut a hole into
the instrument panel (or wherever you plan to mount the
transceiver.)
w Slide the transceiver through the hole as shown below.
is available for mounting

CONNECTIONS AND MAINTENANCE

e Attach the clamps on either side of the transceiver with
two supplied bolts (5 × 8 mm).
• Make sure that the clamps align parallel to the transceiver body.
r Tighten the end bolts on the clamps (rotate clockwise) so
that the clamps press firmly against the inside of the in-
strument control panel.
t Tighten the locking nuts (rotate counterclockwise) so that
the transceiver is securely mounted in position, as shown
below.
y Connect the antenna and power cable, then return the
instrument control panel to its original place.
r
8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
t
51
