Media Take-Up Unit - Canon imagePrograf iPF9400 User Manual

iPF9400
e Leg Covers
Covers for Stand L and Stand R.
f Stopper
Locks the Stand casters.
Always release the Stopper before moving the printer. Moving the printer while the Stopper is locked may scratch
the casters or the floor.
g Accessory Pocket
Stores printer accessories.

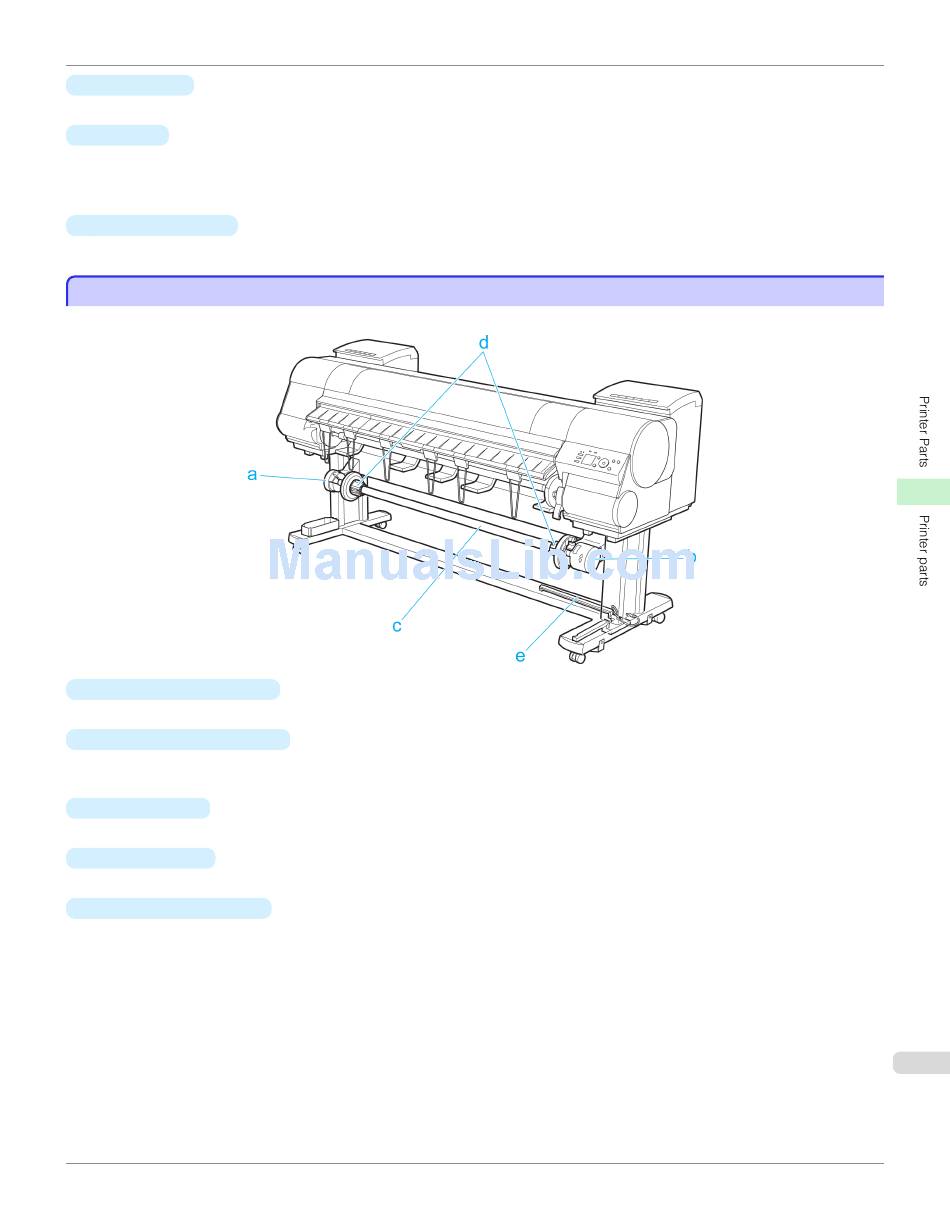

Media Take-up Unit

Media Take-up Unit

a Left Media Take-up Unit
Load the Rewind Spool here.
b Right Media Take-up Unit
Load the Rewind Spool here. Includes the Media Take-up Unit Power button, ▲ and ▼ buttons to advance or
rewind paper, and a power cord.
c Rewind Spool
Winds documents printed on rolls.
d 3-inch Adapter
When rewinding rolls with 3-inch paper cores, attach the adapter to the Rewind Spool.
e Media Take-up Sensor
A sensor for automatically rewinding rolls.
