iPF9400
15

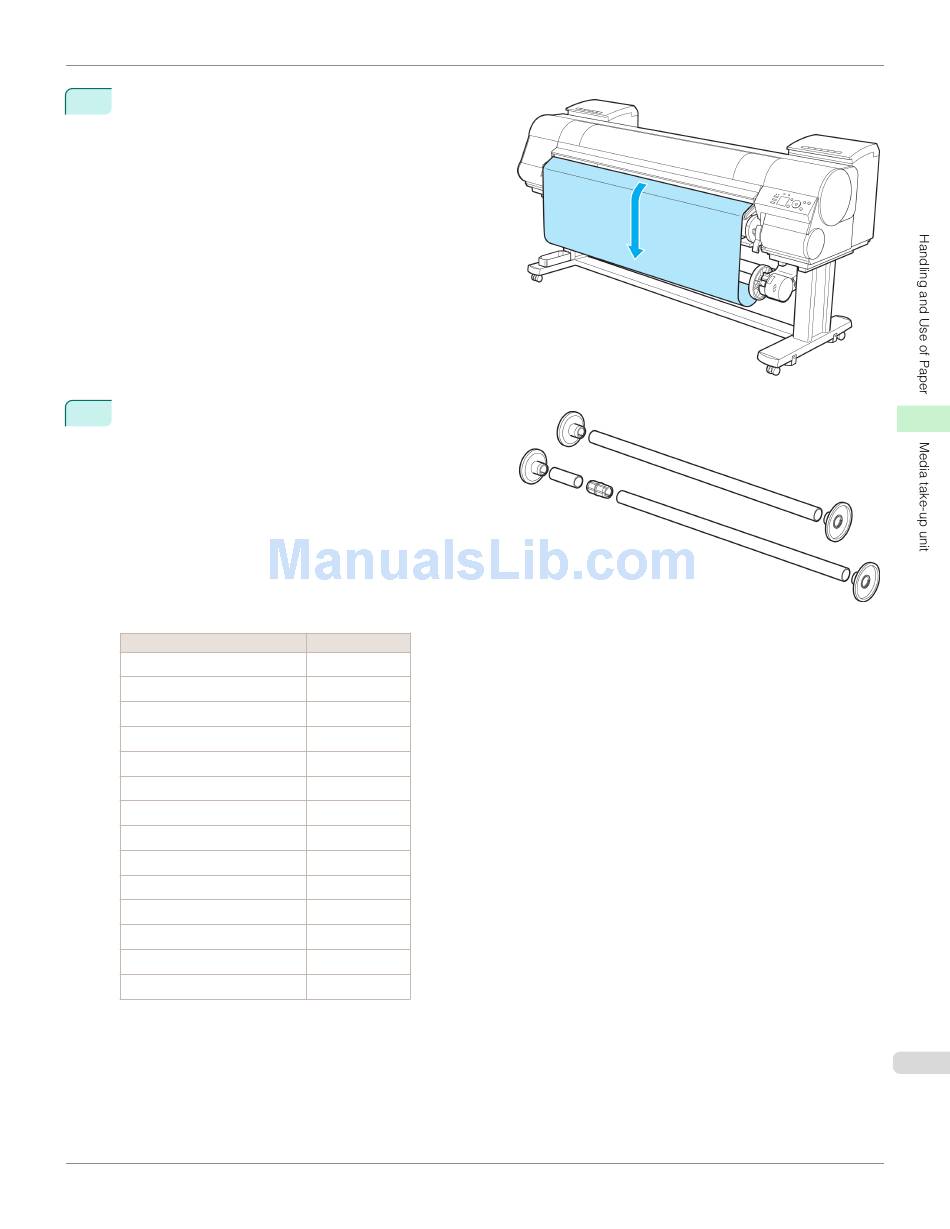

You can unwind rolls by holding down ▼ on the control
panel.
16
Refer to the following table and securely insert the
Weight Flange and Weight Joint suitable for the type
and width of roll into the Weight Roll.
The following list identifies Weight Roll and Weight
Flange you can use. A Color Label is applied to each
Weight Roll.
Weight Roll
Roll Width
B2 Width: 515.0 mm (20.3 in)
B1 Width: 728.0 mm (28.7 in)
B0 Width: 1,030.0 mm (40.6 in)
A1 Width: 594.0 mm (23.4 in)
A0 Width: 841.0 mm (33.1 in)
431.8 mm (17 in)
609.6 mm (24 in)
762.0 mm (30 in)
914.4 mm (36 in)
1,066.8 mm (42 in)
1,117.6 mm (44 in)
1270.0 mm (50 in)
1371.6 mm (54 in)
1524.0 mm (60 in)
User's Guide
Weight Roll to Use
D
A+E
A+G
E
B+E
C
E
B+D
G
C+E
D+E
D+F
E+F
E+G
Loading the Rewind Spool on the Media Take-up Unit
