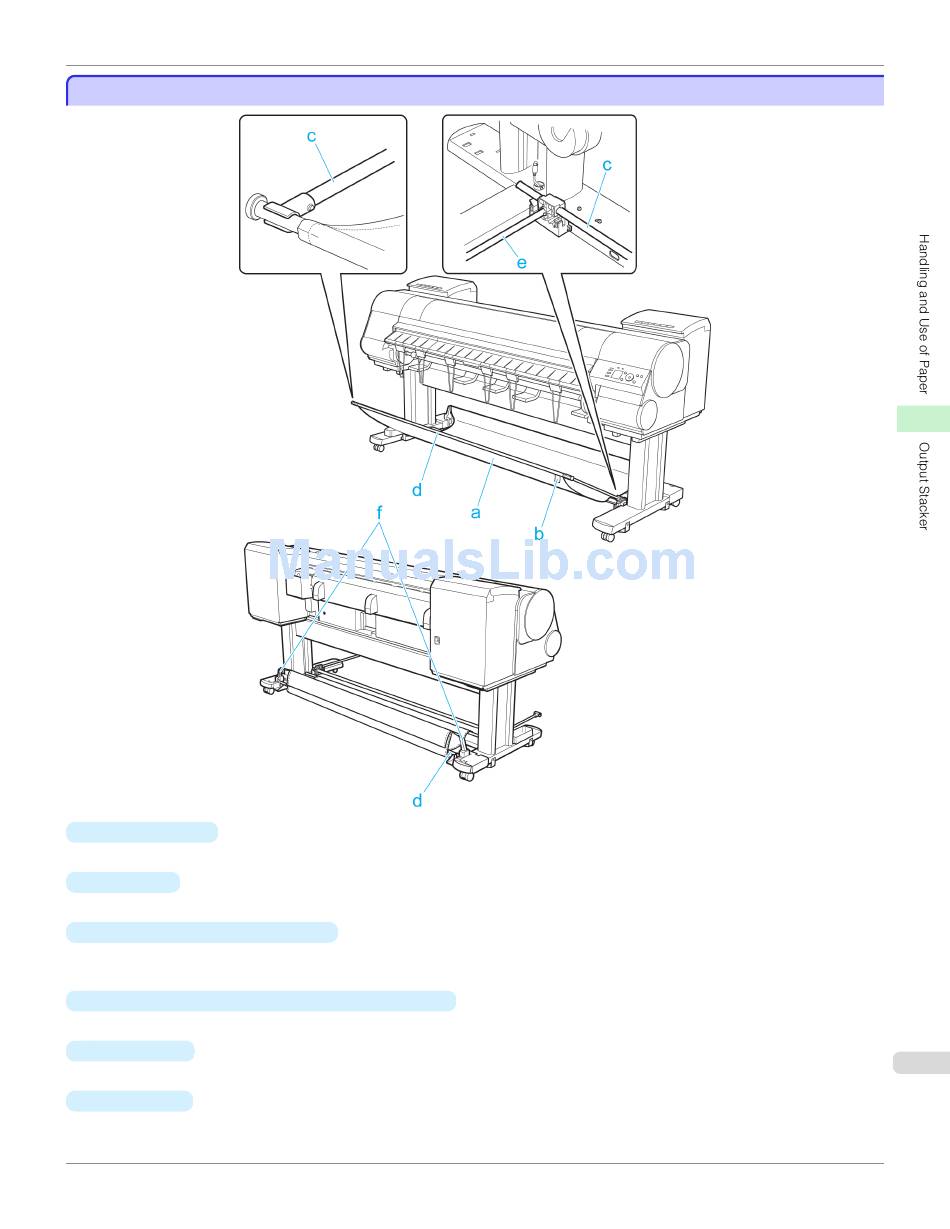

Parts of the Output Stacker

Parts of the Output Stacker

a Output Stacker
A cloth tray that catches ejected documents.
b White tag
A point of reference for attaching the Output Stacker in the right direction.
c Basket Arm R and Basket Arm L
Holds the Basket Rod (tag side) attached to the Output Stacker. When the Output Stacker is not used, push it
down and store it next to the Stand Leg.
d Basket Rod (tag side) and Basket Rod (cord side)
Holds the cloth Output Stacker securely in specific positions.
e Basket Rod
Keeps Basket Arm R and Basket Arm L at the same angle.
f Rod Holder
Holds the middle of the Basket Rod (cord side).
