7. Remove the system board:
a. Grasp the memory controller chip heatsink and the processor heatsink and slide the
system board toward the front of the server. This releases the system board from its
chassis standoffs.
b. Lift up the processor side of the system board and slide it free of the PCI/AGP cage bay.

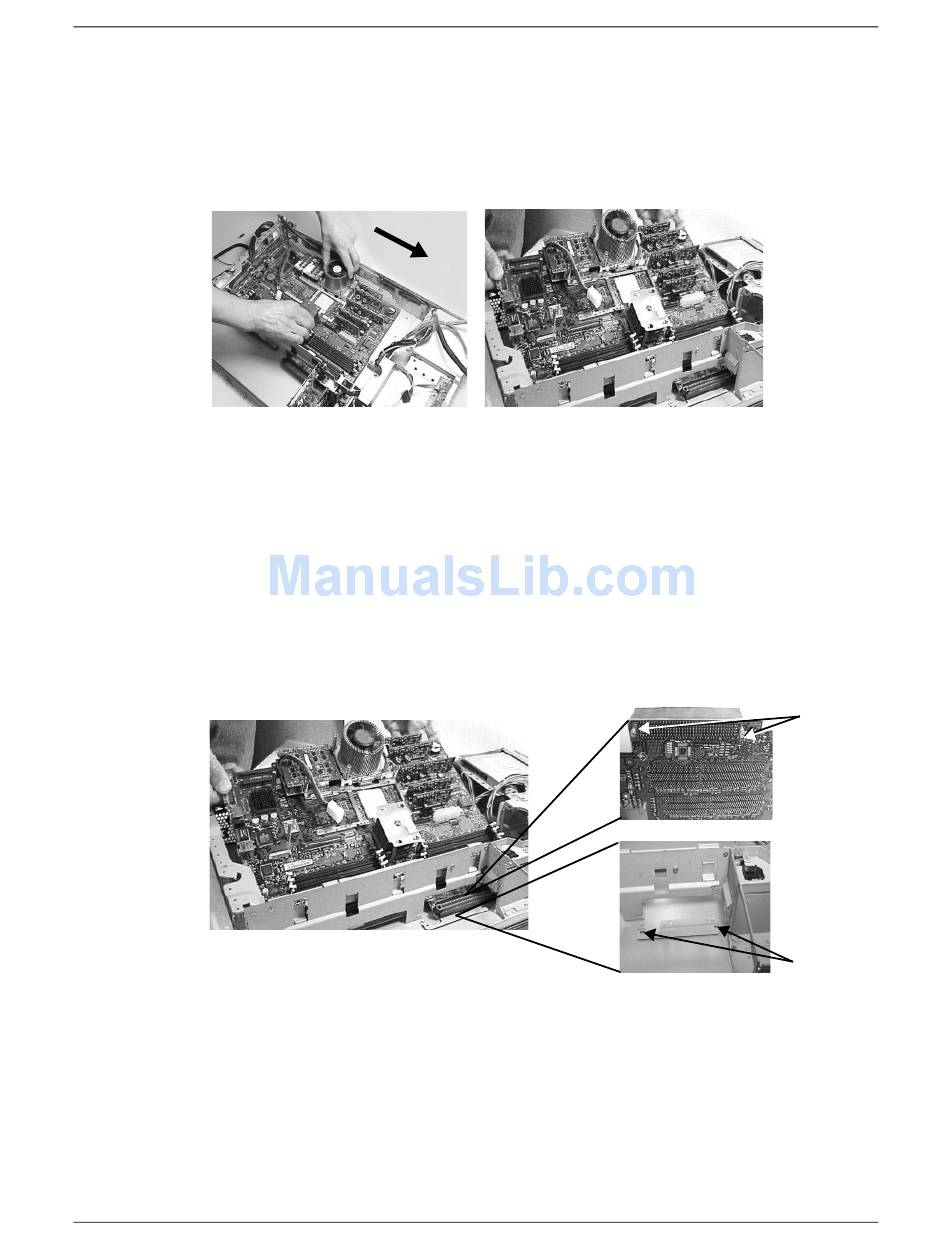

Remove the System Board from the Server

Replacing the System Board
To replace the system board, follow these steps:
1. Remove the old system board.
2. Grasp the new system board by its edges and carefully align it in the server:
❏
Angle the board to enable the PCI connector to slide into the PCI/AGP cage bay area.
❏
Align the system board keyholes with their corresponding standoffs on the chassis.
❏
Slide the PCI connector posts (1) on the system board into their slots (2) on the server
chassis.

Align the System Board in the Server

HP Integrity rx2600 server and HP workstation zx6000 Operation and Maintenance Guide
Removing and Replacing Components
1
2
101
