Removing and Replacing Components
Six System Board Mounting Screws
5. Disconnect all cables that are connected to the system board. To help with re-assembly, make
note of which cables were connected to which connector.
NOTE: To access the three power cables near the PCI/AGP cage, you must lift up the connector
bridge for the PCI/AGP cage fan.
6. Unscrew the system board mounting screw. A screw symbol is adjacent to the mounting
screw.

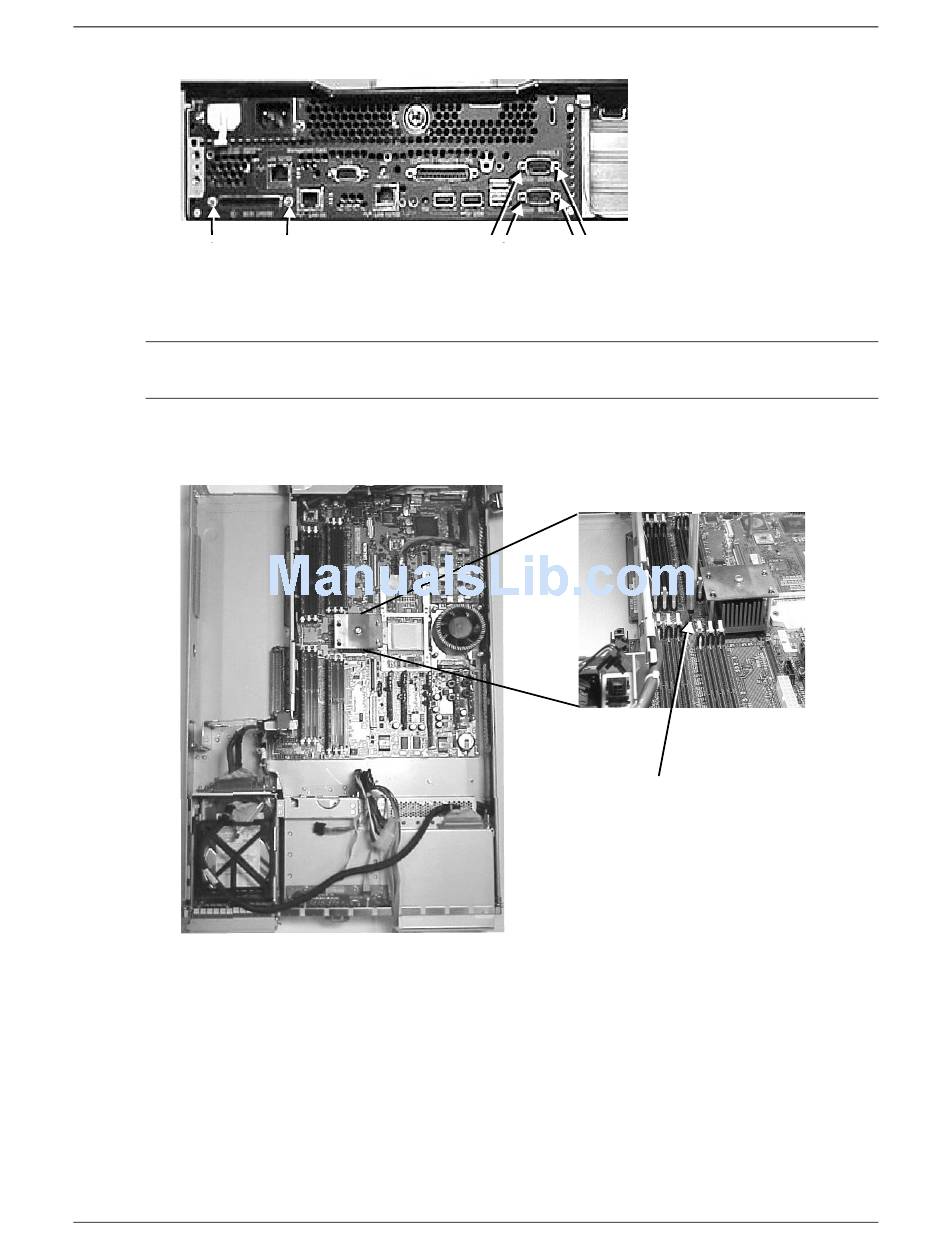

Unscrew the System Board Mounting Screw
100
System's Front
HP Integrity rx2600 server and HP workstation zx6000 Operation and Maintenance Guide
