Removing and Replacing Components

Removing and Replacing the LED Status Panel

The LED status panel card contains the server LEDs and the e-buzzer.
CAUTION: Some system settings are saved to the LED status panel. If you are replacing both the LED
status panel and the system board, they must be replaced one at a time to avoid loss of system settings.
First replace one component, then power on the server and boot to the EFI prompt. After confirming that
the first component has been replaced successfully, power off the server and replace the second
component.
Removing the LED Status Panel
To remove the LED status panel, follow these steps:
1. Power off the server, disconnect all power cables, and remove the server covers.
2. Disconnect the LED status panel controller cable.

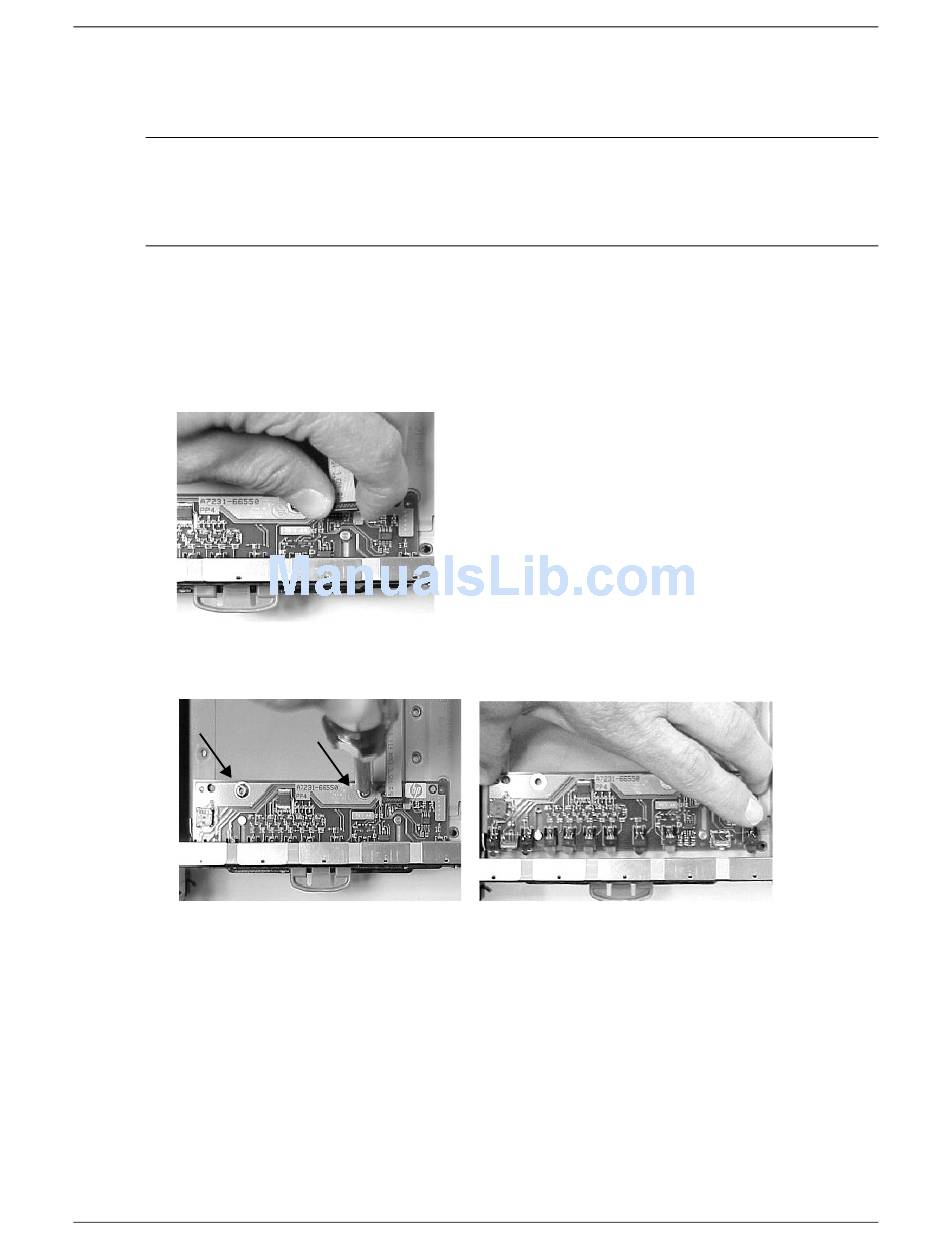

Disconnect the LED Status Card Controller Cable

3. Unscrew the two LED status panel mounting screws and remove the panel.

Remove the LED Status Card

Replacing the LED Status Panel
To replace the LED status panel, follow these steps:
1. Replace the LED status panel in the server and screw in the two LED status panel mounting
screws.
2. Connect the LED status panel controller cable.
3. Replace the server covers and reconnect all power cables. Power on the server and verify that
the system and power LEDs light up.
