Removing and Replacing Components

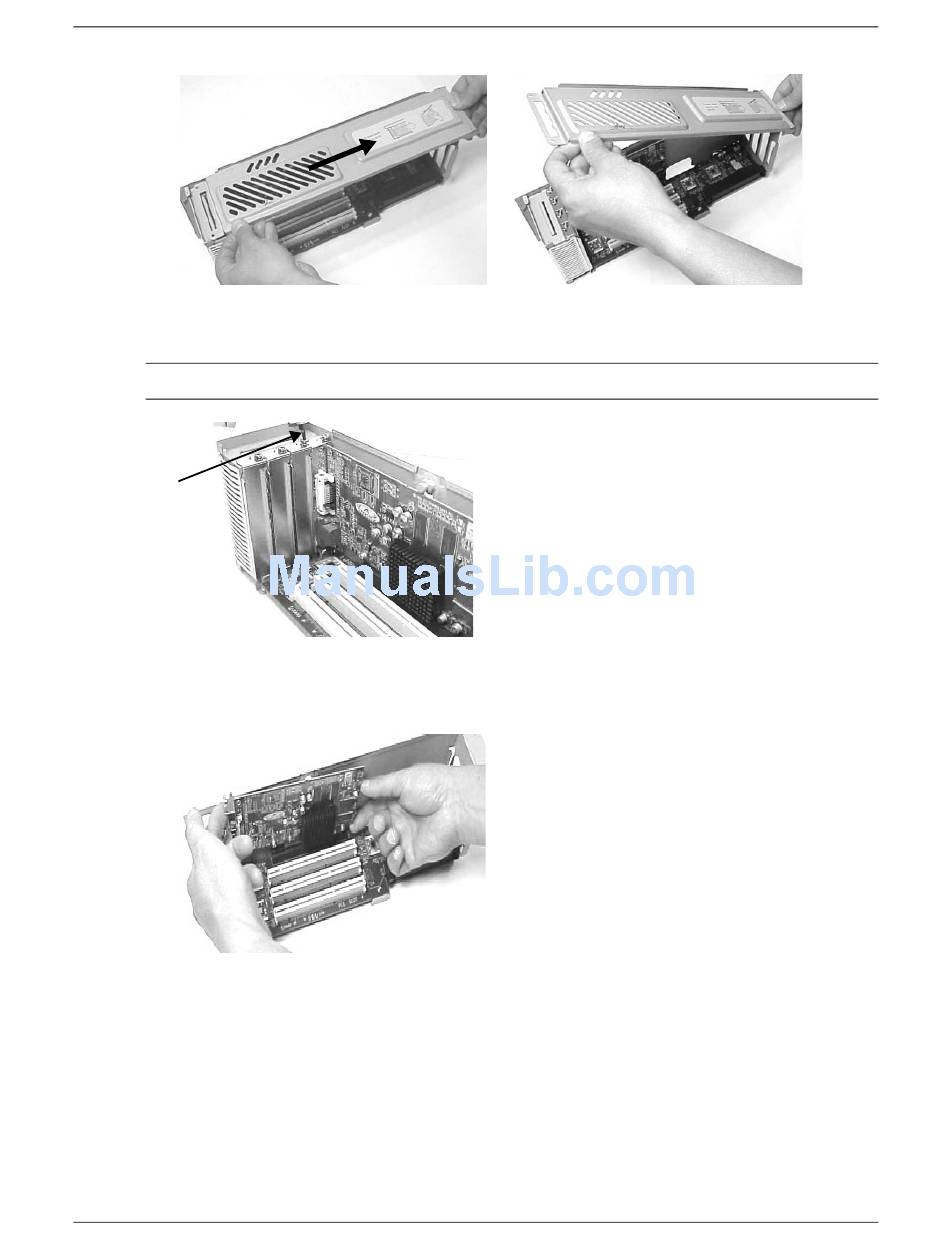

Removing the PCI/AGP Cage Cover

4. Unscrew the bulkhead screw that holds the accessory card in place.
NOTE: If you are removing an audio card, unplug the audio cable from the card.

Removing the Bulkhead Screw

5. Grasp the bulkhead end of the card and the opposite edge and lift the card out of the slot. If
you are not installing a new card in the same slot, install a blank in the slot.

Removing the Accessory Card

Replacing an Accessory or Graphics Card
To replace an accessory or graphics card, follow these steps:
1. Remove the PCI/AGP cage.
2. Remove any bulkhead blank from the slot to be used.
3. Insert the card:
84 HP Integrity rx2600 server and HP workstation zx6000 Operation and Maintenance Guide
