Front Panel

The front panel on the rx2600 and zx6000 has the following features:
■
Power LED is green when the power is on, or the power button is pushed in. If the power is
on and the button is pushed in, the light stays on even after the server is powered off. When
the button is released, the green light turns off.
■
Power Butter turns the server power on and off.
■
LAN LED indicates communication over the Gigabit or Management LAN.
■
System and Diagnostic LEDs identify errors on zx6000 workstations with no iLO MP card.
■
Locator LED and Button (rack-mount configuration only) identify the rack position of the
server.
■
Disk Activity LEDs on each hard drive turn green when the disk is accessed.
■
e-buzzer icon indicates the position of the internal speaker.
7
6
5
4
3
1

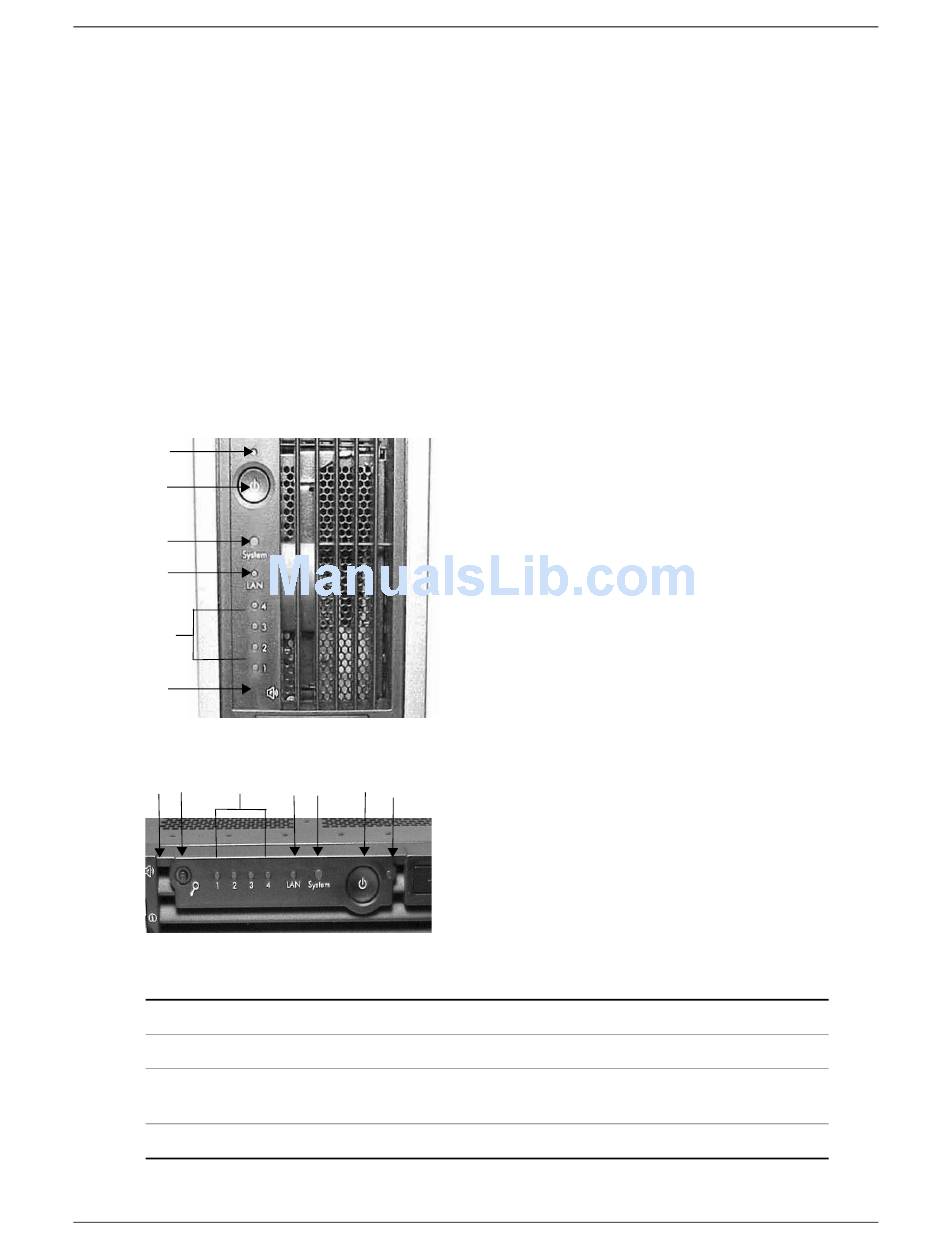

Front Panel, Pedestal Configuration

3
2
1

Front Panel, Rack-mounted Configuration

1 e-buzzer Icon
2 Locator LED and Button (rack-mounted server only)
3 Diagnostic LEDs 1-4 (active only on zx6000
workstations with no iLO MP card installed)
4 LAN LED
HP Integrity rx2600 server and HP workstation zx6000 Operation and Maintenance Guide
6 7
4 5
5 System LED
6 Power Button
7 Power LED
Overview
19
