a. Grasp the bulkhead end of the card and its opposite edge and insert the card into the slot.
If you are replacing a card, put the new card into the same slot from which you removed
the old card.
b. Secure the card by attaching the screw that was used to hold the blank in place.

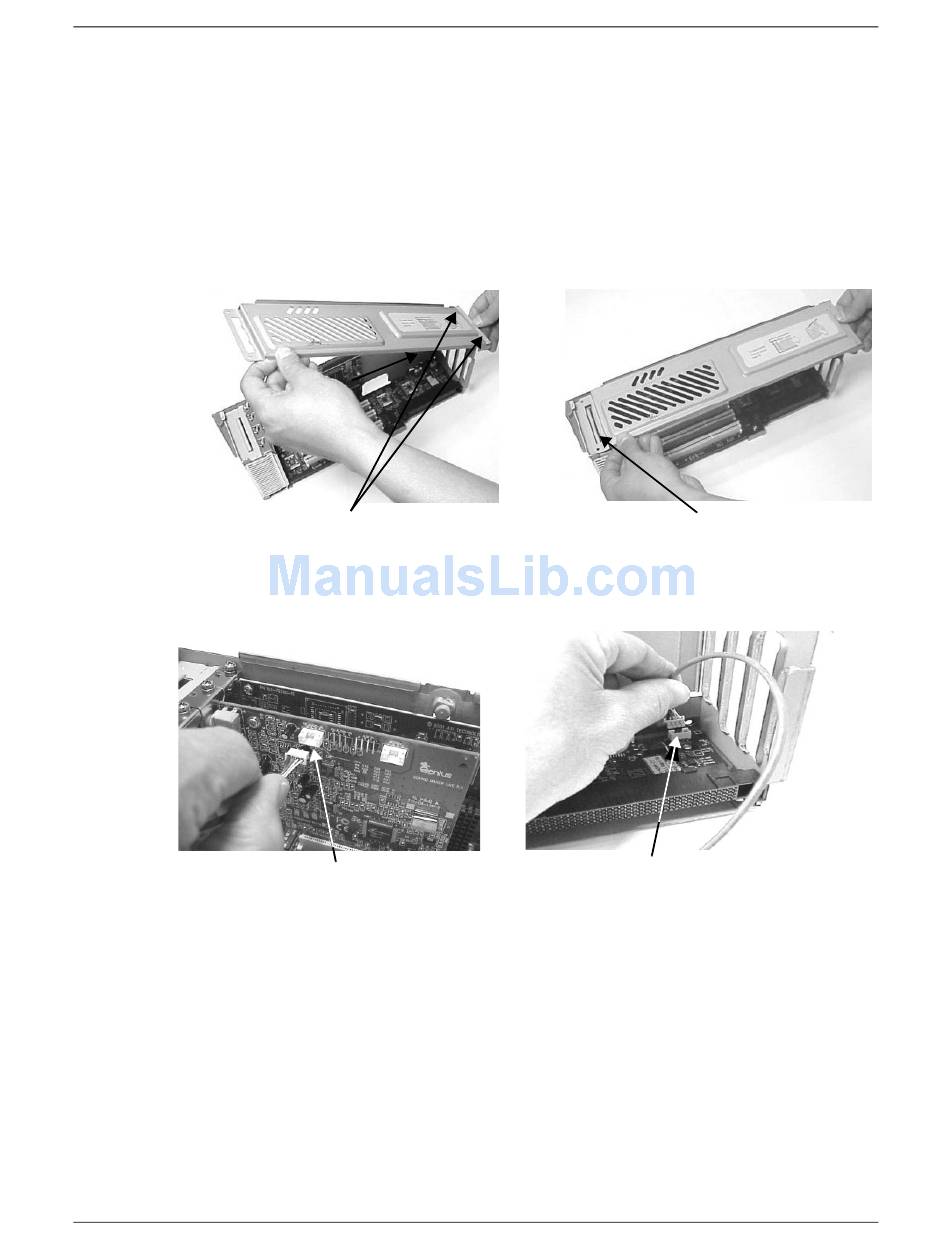

4. Attach the cover to the cage:
a. Slide the retaining tabs on the fan end of the cover into the retaining slots and press the
cover down on the accessory boards.
b. Slide the tab at the bulkhead end of cage (1) into the slot on the cover (2).

Replacing the PCI/AGP Cage Board Cover

5. If you are replacing an audio card, attach the audio cable to the card (1) and to the connector
on the PCI/AGP backplane (2).

Connecting the Audio Cable

6. Place the PCI/AGP cage back in the server and secure it:
a. Align the PCI/AGP cage in the server.
b. Depress the release lever to lock the cage in place.
c. If you have an AGP card installed, secure the plastic shipment retainer.
7. Replace the covers, reconnect all of the power and external cables and power on the server.
8. Verify that new cards have been correctly installed:
❏
Run the
HP Integrity rx2600 server and HP workstation zx6000 Operation and Maintenance Guide
1
1
info io
command at the EFI shell prompt or,
Removing and Replacing Components
2
