Chapter 4 - MultiVOIP Software

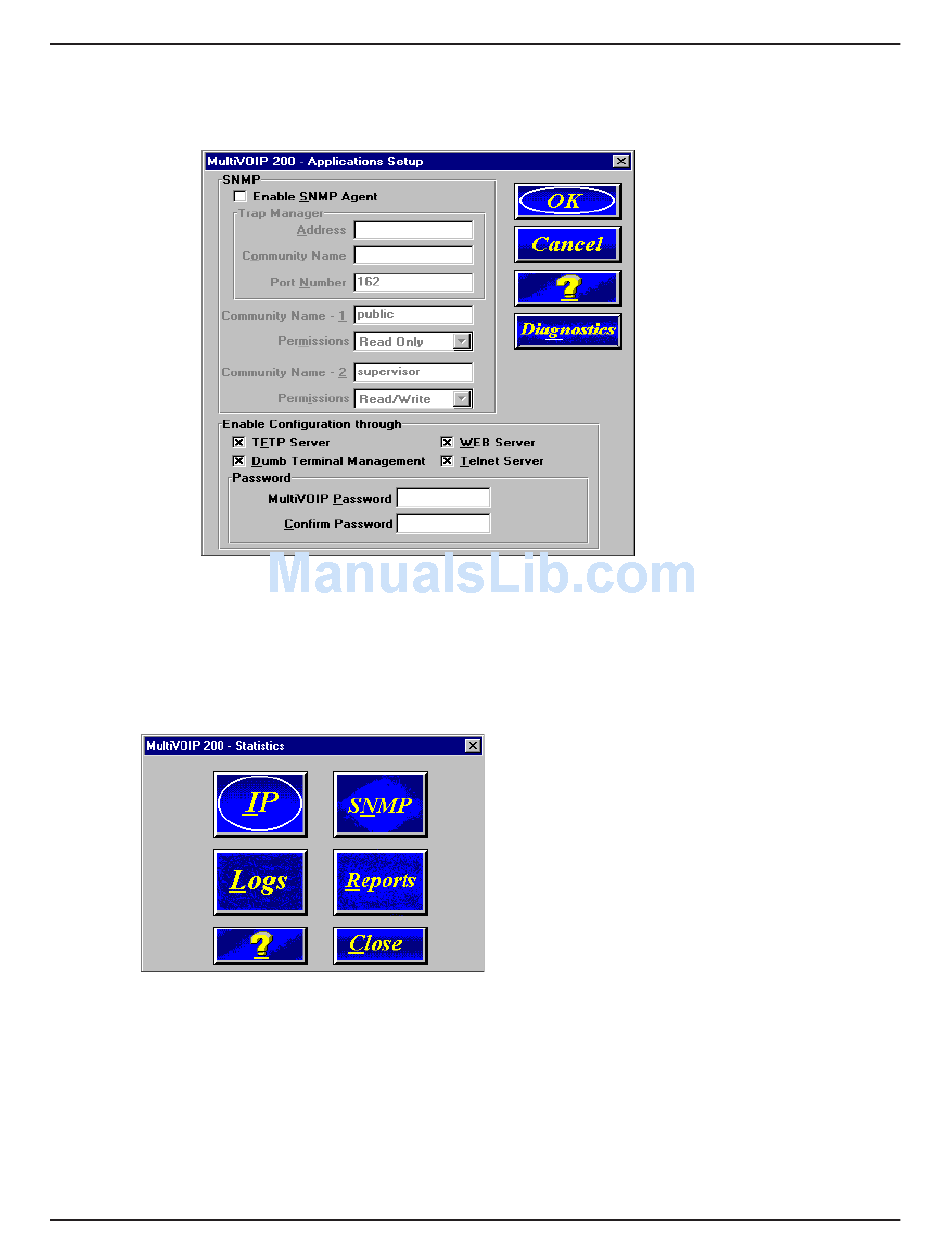

The Password group enables you to enter a password, up to 13 alphanumeric characters, to be used

for Internet Security. Once the password is entered (in the MultiVOIP Password box) and confirmed

(in the Confirm Password box), remote users will be queried to enter the password before gaining

access to the MultiVOIP.

For more information on using these applications, refer to Chapter 5, Remote Configuration and

Management.

Viewing Statistics

The Statistics dialog box enables you to view statistics for major events of the MultiVOIP operation.

This dialog box is accessed by clicking the Statistics button on the MultiVOIP 200 Setup menu.

Statistics can be a helpful troubleshooting tool. For example, viewing the Voice Channel statistics you

can see the attempted and completed calls, call duration, average call length, bytes/packets sent and

received, and so on.

IP is a connection-less network protocol residing in the network layer of a conventional OSI layered

model (for more information on this model, refer to

Appendix

A). Depending on what is going on at

the application layer, IP will typically use one of two transport layer protocols: User Datagram

Protocol (UDP), a connection-less transport layer protocol used with TFTP or SNMP; and Transport
