Multitech MVP200 User Giude page 27

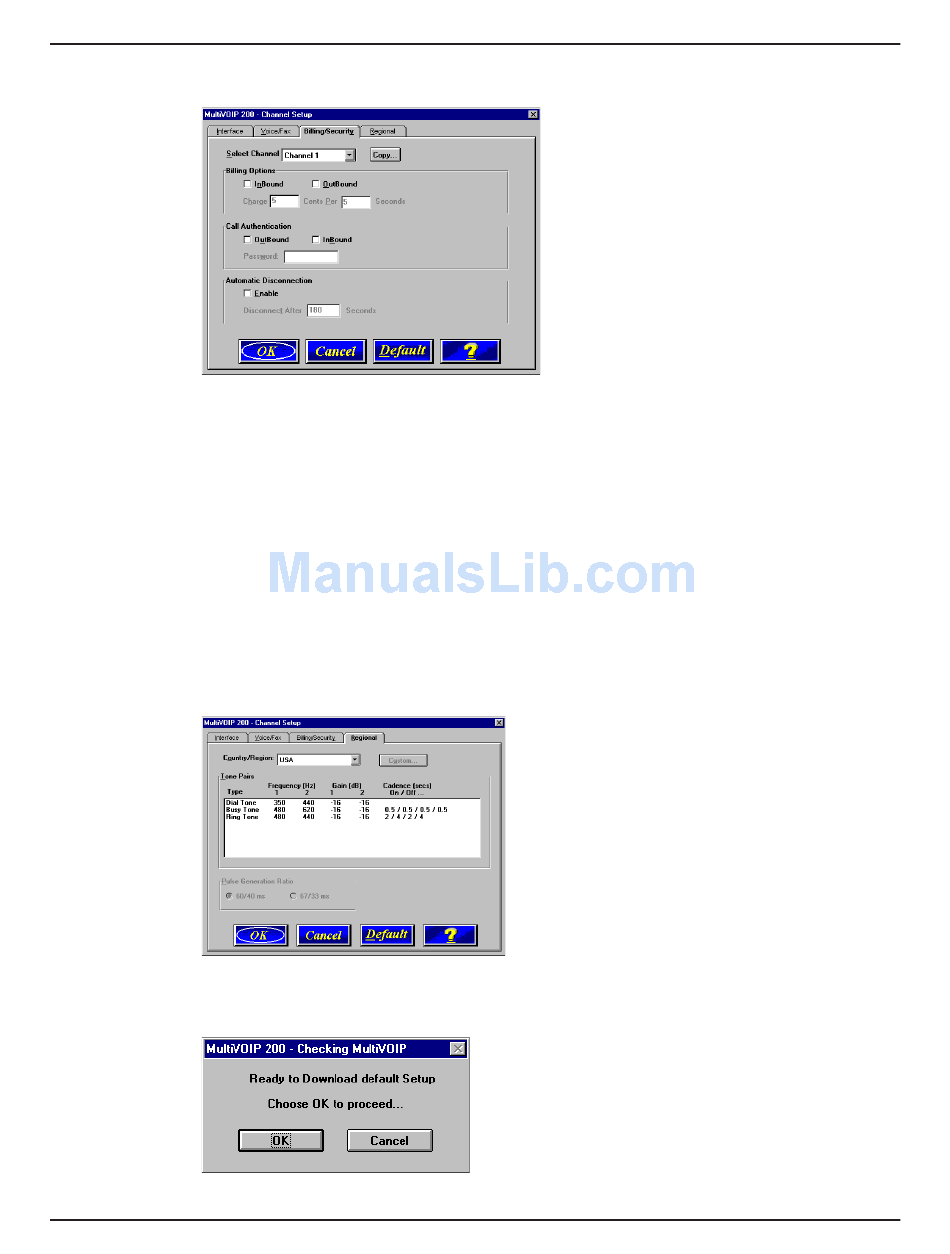

20. The Billing/Security tab displays the parameters for automatic disconnection, billing options,
and dialing options.
21. You can set up billing options for inbound and outbound calls by selecting them in the Billing
Options group and then entering the charge in cents per number of seconds.
22. The Call Authentication option enables password protection for outbound and inbound calls
on the selected voice/fax channel. If you enable password protection on inbound or outbound
calls, you need to also enter a password of up to 14 numeric characters in the Password box.
23. The Automatic Disconnect option limits call duration to the number of seconds entered in the
Disconnect After box. The default value of 180 seconds can be changed to any other value
up to 65,535 (roughly 18.2 hours).
If your country/region is not the default USA, click the Regional tab and proceed to step 23.
Otherwise, proceed to step 24 to begin building your phone directory database.
24. To change the Tone Pairs on the Regional tab, select your country or region from the Coun-
try/Region list. See Chapter 4 for more information.
The Tone Pairs group parameters change per your choice. Click OK when finished.
25. The following dialog box displays.
Click OK. The upgrade process begins. Each component is loaded in succession.
Chapter 3 - Software Loading and Configuration
27
