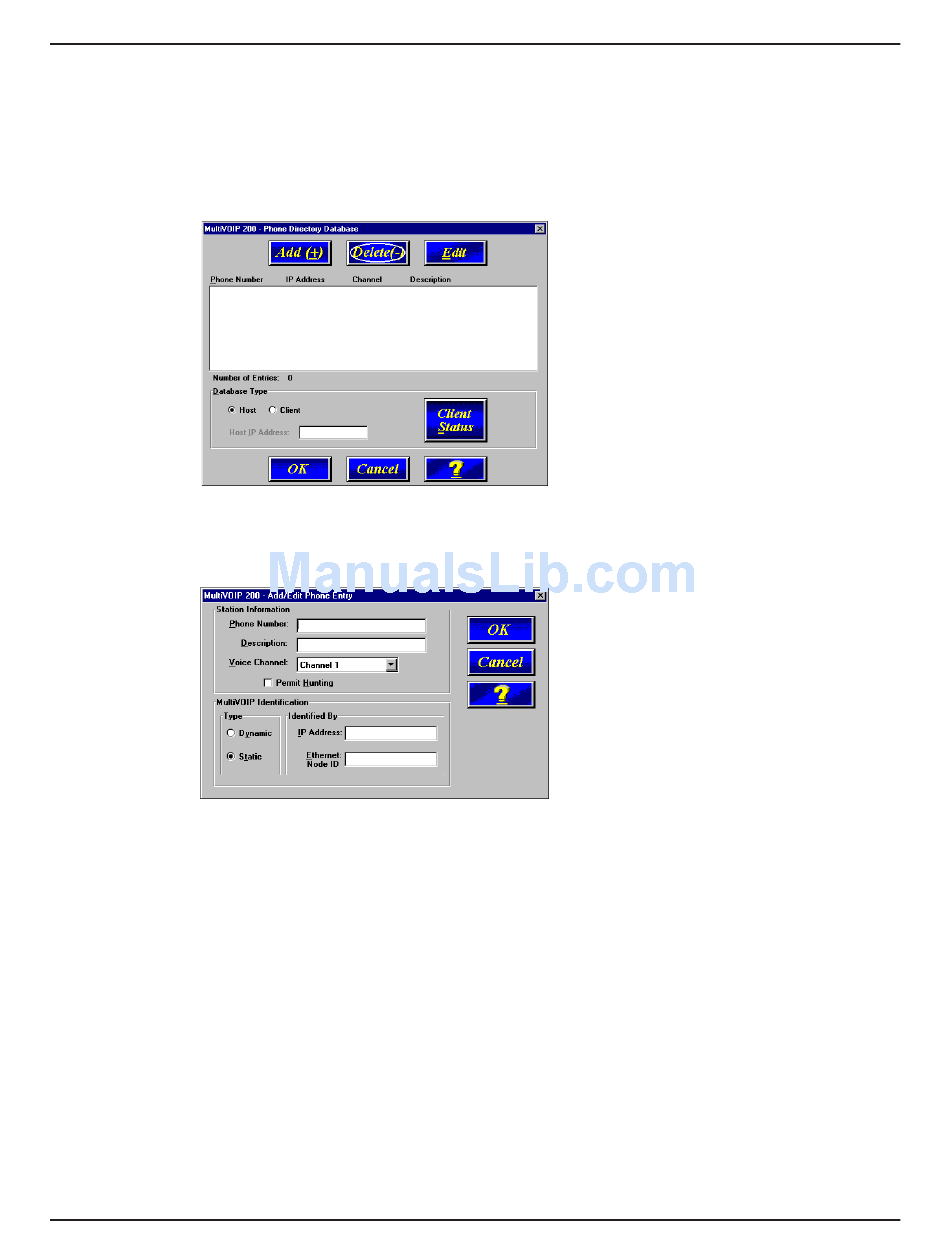

26. From the Program Group, double-click MultiVOIP Configuration. Click Phone Book. The
Phone Directory Database dialog box displays. You will build your personalized MultiVOIP
Phone Directory in the following steps.
The MultiVOIP configured as a "Host" will contain the host database. The host database has
the phone numbers of all the MultiVOIP's available for communication on an IP network. This
database is downloaded to each Client MultiVOIP as it comes online.
Click Add to begin building your phone directory database.
27. The Add/Edit Phone Entry dialog box displays.
In the Station Information group, enter the unique phone number of the local device con-
nected to Channel 1 in the Phone Number box. For example phone number 101.
28. The Description is optional, but can be useful in associating the channel to the extension. If
you want, enter a description of your local phone number. This description identifies the
phone number you entered in the previous step.
29. The Permit Hunting option enables the answering unit to roll over to a second channel if the
first channel is busy. Click Permit Hunting if you want the calls to roll over to a second voice/
fax channel.
Note: The Host MultiVOIP must have a static IP address that the remote MultiVOIP can
reference to obtain a downloaded copy of the host phone directory database.
Chapter 3 - Software Loading and Configuration
28
