Installing Your MultiVOIP Software

The following installation procedures do not provide every screen or option in the process of installing
the MultiVOIP software. It is assumed that a technical person with a thorough knowledge of
Windows and the software loading process is doing the installation. Additional information on the
MultiVOIP software is provided in Chapter 4, MultiVOIP Software, and in the online Help.

Configuring Your Host MultiVOIP

Configuring your Host MultiVOIP involves software loading and configuration.
Software Loading
The software loading procedure does not provide every screen or option in the loading process. It is
assumed that a technical person with a thorough knowledge of Windows and the software loading
process is performing the installation.
If you are installing a MultiVOIP behind a firewall, add the following UDP ports to your firewall.
Q.931 Signaling, Ch1 [900]
Ch1 RTP [5004]
Refer to your firewall user documentation to enter and open these ports.
1. Verify that your MultiVOIP 200 has been properly cabled, that the power is turned on, and that
the Boot LED is off.
2. Insert the MultiVOIP 200 CD into your CD-ROM drive. The CD should start automatically. It
may take 10 to 20 seconds for the MultiTech CD installation window to display.
If the Multi-Tech Installation CD window does not display automatically, click My Computer,
then right click the CD ROM drive icon, click Open, and then click the Autorun icon.

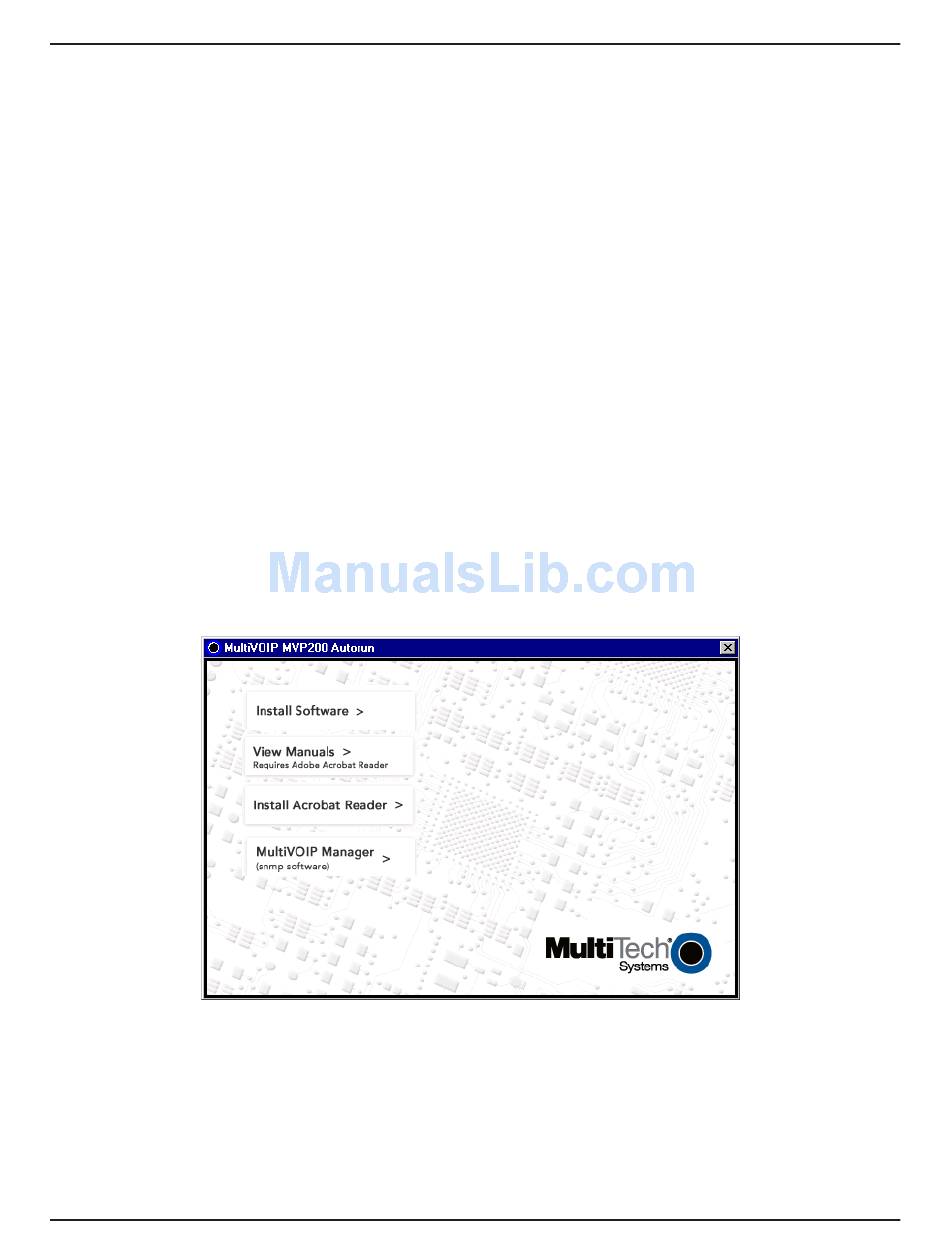

3. When the Multi-Tech Installation CD dialog box displays, click the Install Software icon.
Chapter 3 - Software Loading and Configuration
Q.931 Signaling, Ch2 [902]
Ch1 RTCP [5005]
Status [5000]
Ch2 RTP [5006] Ch2 RTCP [5007]
21
