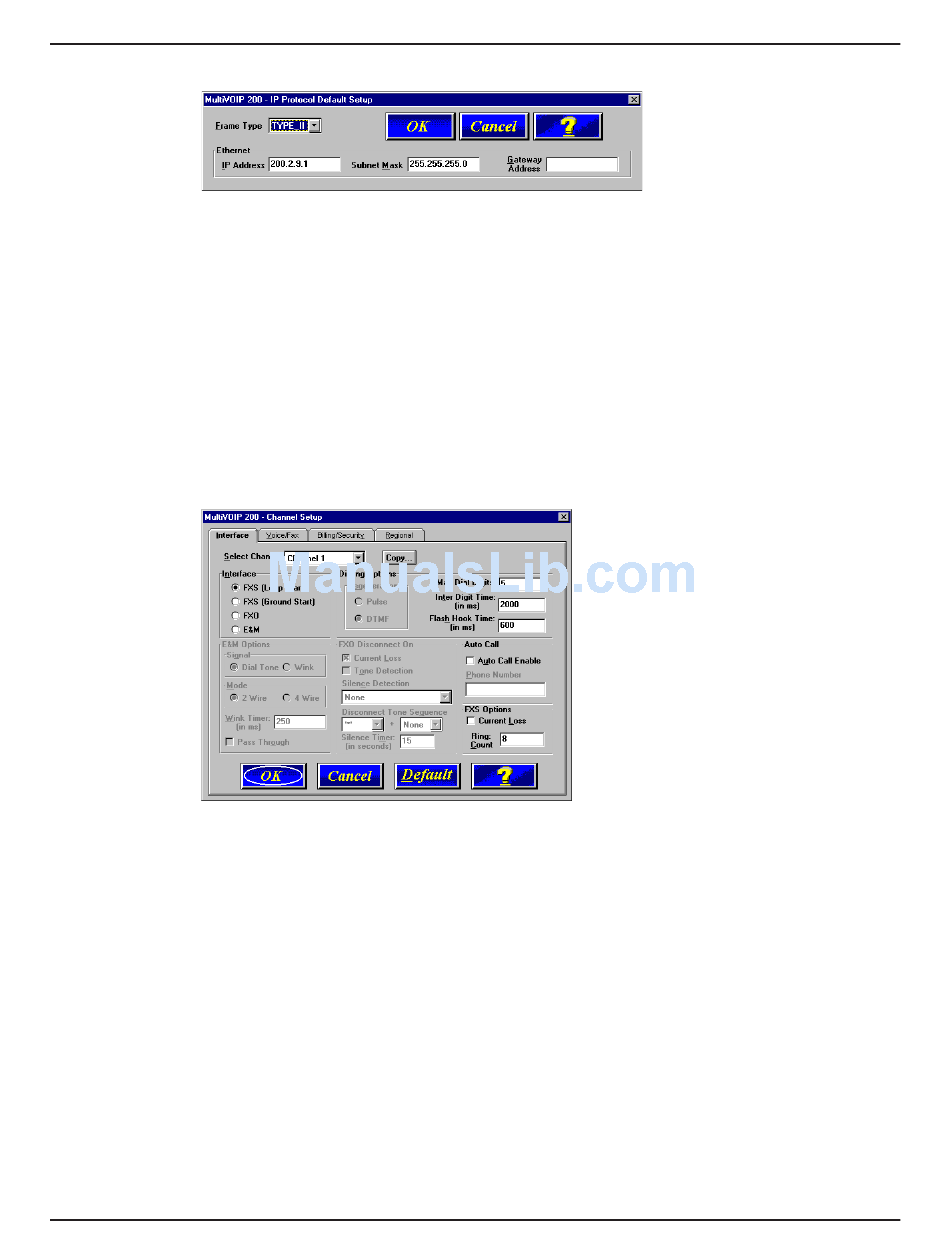

11. The IP Protocol Default Setup dialog box displays.
The default Frame Type is TYPE_II. If this does not match your IP network, change the Frame
Type by selecting SNAP from the Frame Type list. The available Frame Type choices are
TYPE_II and SNAP.
12. In the Ethernet group, enter your unique LAN IP address in the IP Address box, then enter
the Subnet Mask and Gateway Address for your LAN in the corresponding boxes.
The IP address is your unique LAN IP address, and the Gateway address is the IP address of
the device connecting your MultiVOIP to the Internet.
Click OK when you are finished.
13. The Channel Setup dialog box displays. It is used to define the voice/fax channel interface,
voice coder, fax parameters, billing options, security settings, and regional phone parameters
(tone pairs) for each channel.
Configure each channel for the type of interface you are connecting to. To change the chan-
nel number, select the channel you want to configure from the Select Channel list.
14. The Interface group defaults to FXS (Loop Start). Select the interface option to correspond
to the interface type being connected to the Voice/Fax connector on the back panel of the
MultiVOIP.
If you are connecting a station device such as an analog telephone, a fax machine, or a Key
Telephone System (KTS) to the Voice/Fax connector on the back of the unit, FXS (Loop
Start) will likely be the correct Interface option most of the time.
If the station device uses ground start, then choose the FXS (Ground Start) option. Refer to
the device's user documentation.
If you are using an extension from your PBX, then choose the FXO option. Check with your
in-house telephone personnel to verify connection type.
If you are connecting to an E&M trunk on your PBX, then choose E&M option.
