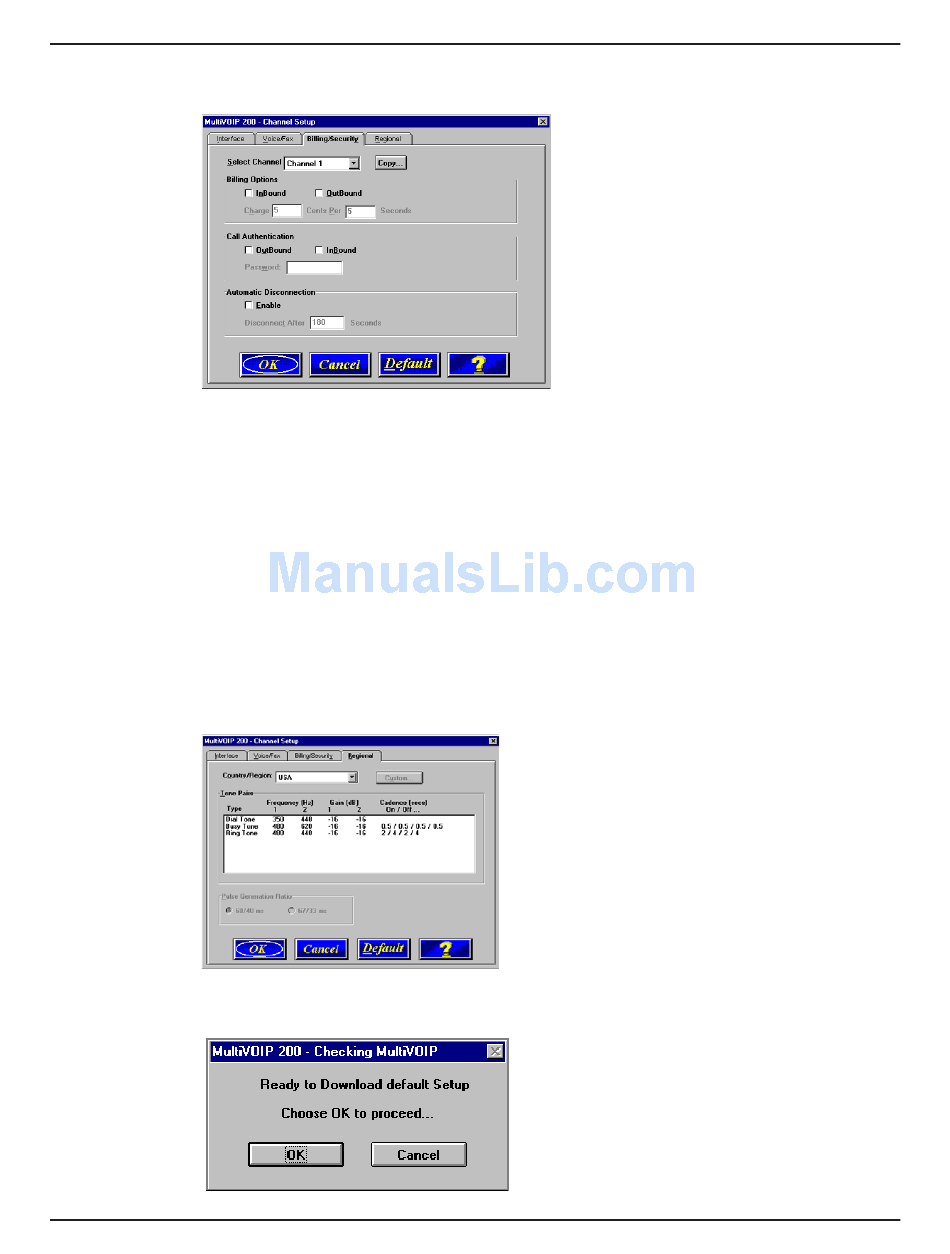

12. The Billing/Security tab displays the parameters for automatic disconnection, billing options,
and dialing options.
13. You can set up billing options for inbound and outbound calls by selecting them in the Billing
Options group and then entering the charge in cents per number of seconds.
14. The Call Authentication option enables password protection for outbound and inbound calls
on the selected voice/fax channel. If you enable password protection on inbound or outbound
calls, you need to also enter a password of up to 14 numeric characters in the Password box.
15. The Automatic Disconnect option limits call duration to the number of seconds entered in the
Disconnect After box. The default value of 180 seconds can be changed to any other value
up to 65,535 (roughly 18.2 hours).
If your country/region is not the default USA, click the Regional tab and proceed to step 15.
Otherwise, proceed to step 16 to begin building your phone directory database.
16. To change the Tone Pairs on the Regional tab, select your specific country or region from the
Country/Region list.
The Tone Pairs group parameters change per your selections. Click OK. The following
dialog box displays.
