Remote Site Administrator

3. Unpack your MultiVOIP.
4. Connect one end of the power supply to a live AC outlet and connect the other end to the
Power connection on your MultiVOIP.
Voice/Fax Channel
Connections
E&M FXO FXS
E&M
PSTN

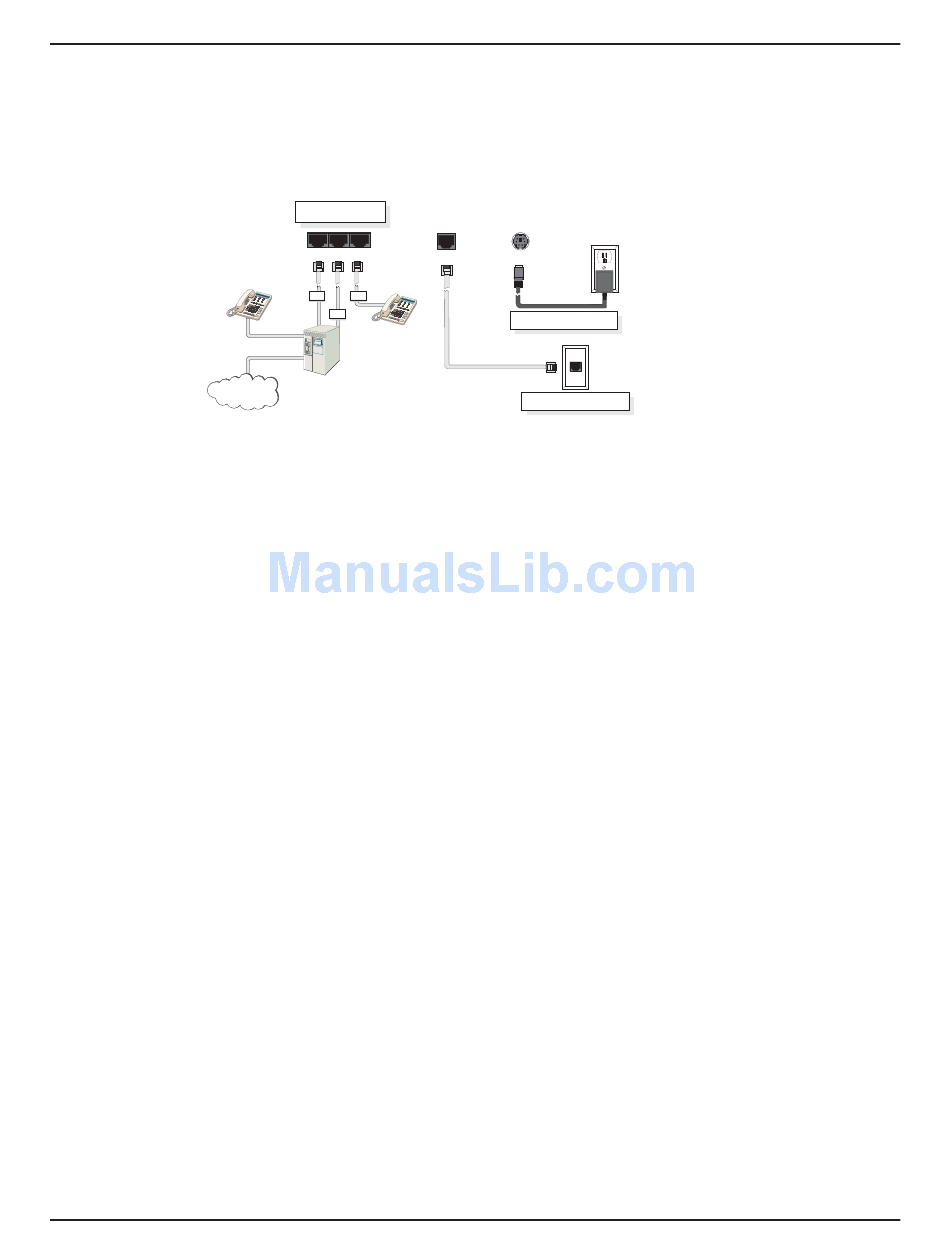

Figure 5. Remote Site Cable Connection
5. Connect a network cable to the ETHERNET 10BASE-T (RJ-45) connector on the back of your
MultiVOIP.
6. If you are connecting a station device such as an analog telephone, a fax machine, or a Key
Telephone System (KTS) to your MultiVOIP, connect the smaller end of a special adapter
cable (supplied) to the Voice/Fax Channel 1 FXS connector on the back of the MultiVOIP and
the other end to the station device.
If you are connecting a PBX extension to your MultiVOIP, connect the smaller end of a special
adapter cable (supplied) to the Voice/Fax Channel 1 FXO connector on the back of the
MultiVOIP and the other end to the PBX extension.
If you are connecting an E&M trunk from a telephone switch to your MultiVOIP, connect one
end of an RJ-45 phone cord to the Voice/Fax Channel 1 E&M connector on the back of the
MultiVOIP and the other end to the trunk phone jack. See connector drawing in Appendix B.
If you are connecting to an E&M trunk, you need to ensure that the E&M trunk jumper is in the
correct position for the E&M type trunk. The default E&M jumper position is E&M type 2. To
change the E&M jumper position, perform the E&M jumper block positioning procedure.
7. Repeat the above step to connect the remaining telephone equipment to each Voice/Fax
Channel on your MultiVOIP.
8. Turn on power to the MultiVOIP by placing the ON/OFF switch on the back panel to the ON
position. Wait for the Boot LED on the MultiVOIP to go off before proceeding. This may take
a couple of minutes.
9. At this time your VOIP network should be fully operational. Dial one of the sites in your
network using the dialing directory supplied by your network Administrator.
10BASET
ETHERNET
POWER
FXS
FXO
Chapter 3 - Software Loading and Configuration
Power Connection
Ethernet Connection
