Front Panel Description

The front panel has three groups of LEDs that provide the status of the Ethernet connection
(Ethernet), Voice/Fax channels (Voice/Fax 1 and 2), and general status of the MultiVOIP (Boot and
Power). The front panel is shown in Figure 1-4, and a description of each LED follows.

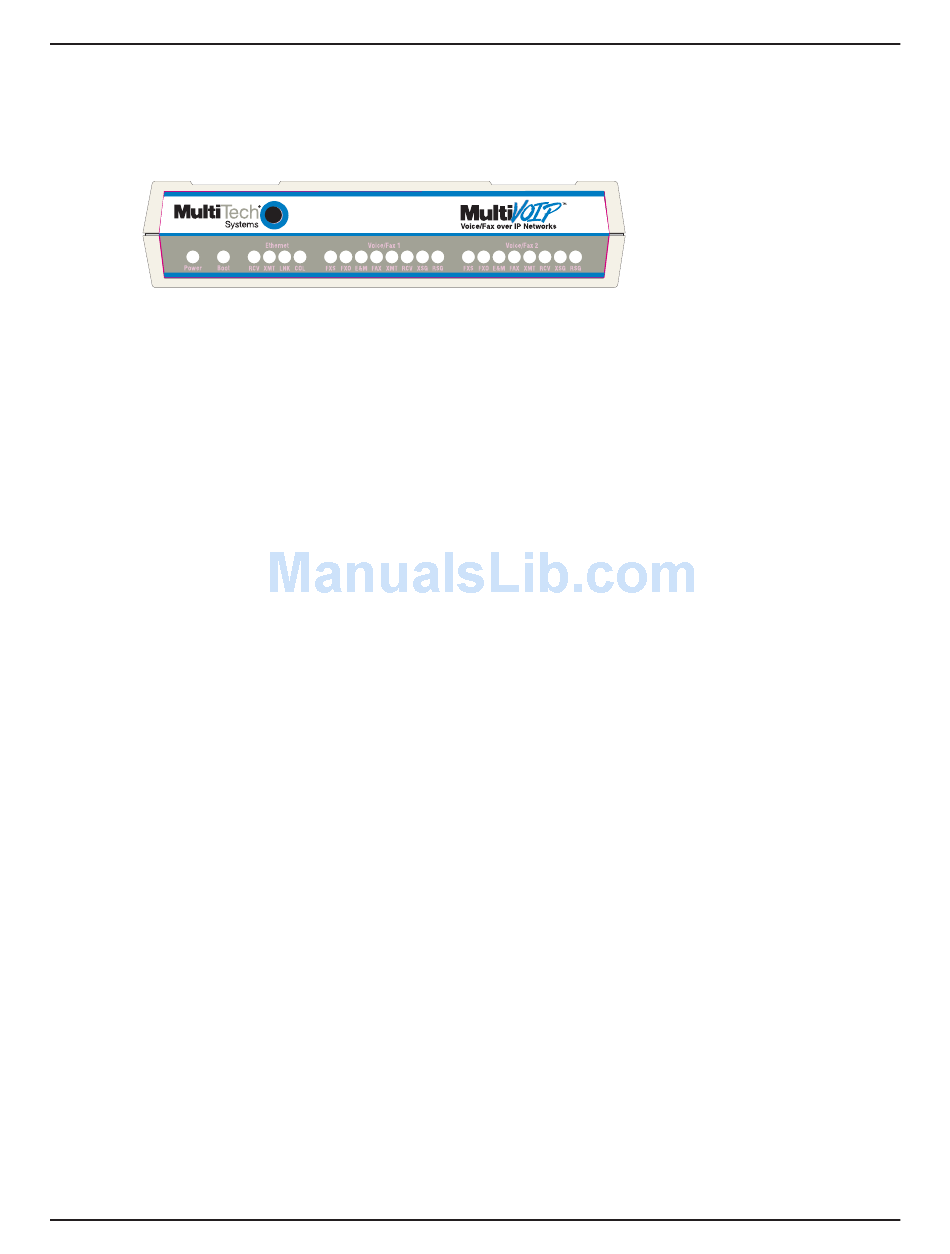

Figure 1-4. Front Panel
Ethernet
RCV Receive Data indicator blinks when packets are being received from the local area network.
XMT Transmit Data indicator blinks when packets are being transmitted to the local area network.
LNK Link indicator lights when the Ethernet link senses voltage from a concentrator or external
device.
COL Collision indicator lights when a collision is detected on the Ethernet link.
Voice/Fax 1 and 2
FXS Foreign Exchange Station indicator lights when the voice/fax channel is configured for FXS
operation.
FXO Foreign Exchange Office indicator lights when the voice/fax channel is configured for FXO
operation.
E&M Ear and Mouth indicator lights when the voice/fax channel is configured for E&M operation.
FAX Fax indicator lights when there is fax traffic on the voice/fax channel.
XMT Transmit indicator blinks when voice packets are being transmitted to the local area network.
RCV Receive indicator blinks when voice packets are being received from the local area network.
XSG Transmit Signal indicator lights when the FXS-configured channel is off-hook, the FXO-
configured channel is receiving a ring from the Telco, or the M lead is active on the E&M
configured channel.
RSG Receive Signal indicator lights when the FXS-configured channel is ringing, the FXO-
configured channel has taken the line off-hook, or the E lead is active on the E&M-configured
channel.
Boot
The Boot indicator lights when the MultiVOIP is booting or downloading setup.
Power
The Power indicator lights when power is applied to the MultiVOIP.
