Configuring Your Client MultiVOIPs

If you are installing a MultiVOIP behind a firewall, you need to add the following UDP ports to your
firewall.
Q.931 Signaling, Ch1 [900] Q.931 Signaling, Ch2 [902]
Ch1 RTP [5004]
Refer to your firewall user documentation to enter and open these ports.
1. Disconnect the PC from the command port of the Host MultiVOIP and connect it to the com-
mand port on the Client MultiVOIP.

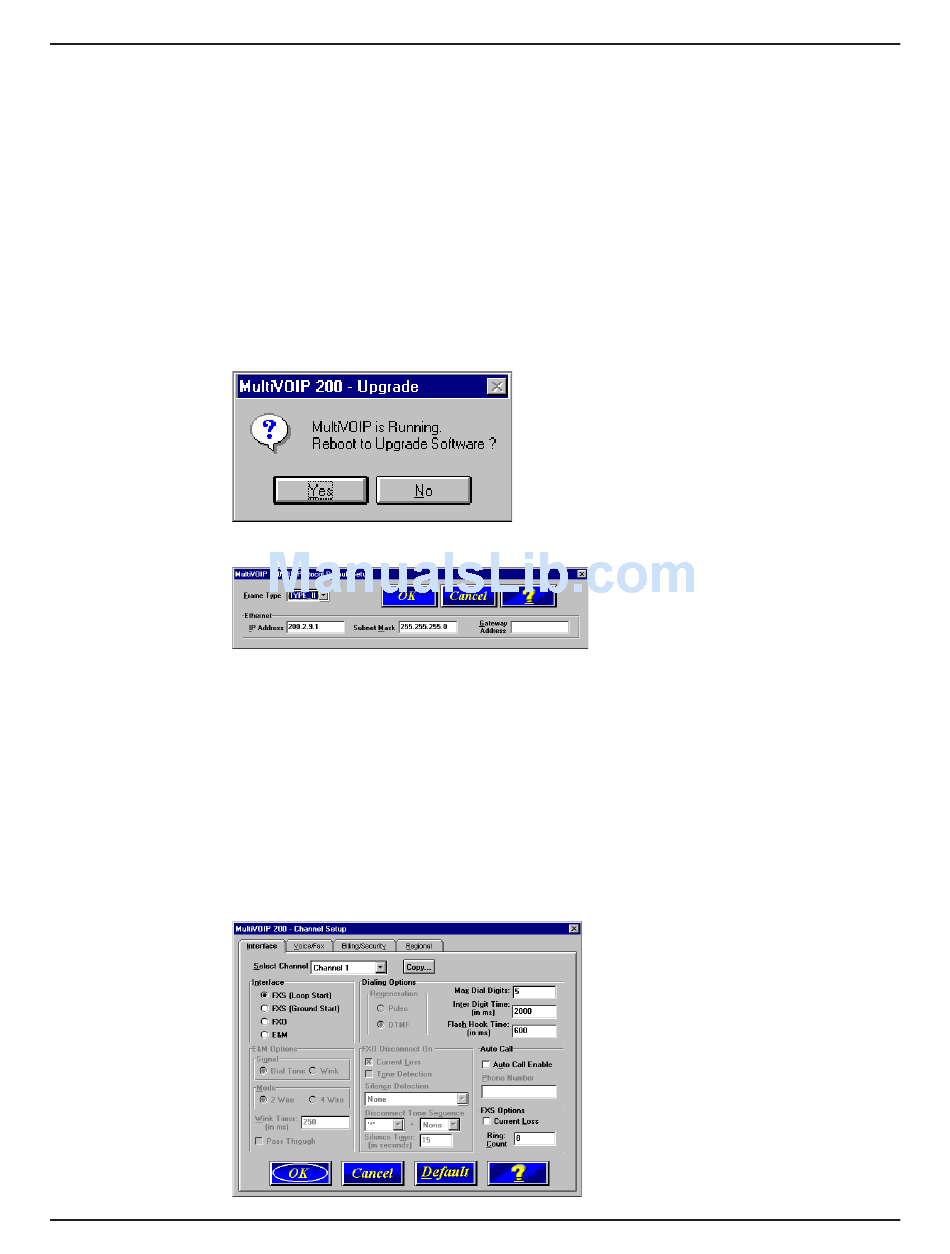

2. From your desktop, click Start | Programs I MultiVOIP I Upgrade Software. The following
dialog box displays.
3. Click Yes. The IP Protocol Default Setup dialog box displays.
The default Frame Type is TYPE_II. If this does not match your IP network, select the Frame
Type from the Frame Type list. The Frame Type choices are TYPE_II and SNAP.
4. In the Port Address group, enter the IP Address and IP Mask. In the Gateway Address
group, enter the gateway IP address for the client unit.
The IP address is your unique LAN IP address, and the Gateway address is the IP address of
the device connected to the Internet/Intranet.
Click OK when you are finished. The Channel Setup dialog box displays.
5. The Channel Setup dialog box defines the channel interface, voice coder, fax parameters,
and regional telephone parameters for each channel.
Chapter 3 - Software Loading and Configuration
Ch1 RTCP [5005]
Status [5000]
Ch2 RTP [5006] Ch2 RTCP [5007]
