2.2.1 Connect Power to the Speaker

Figure 2-1
2.2.1.1 VoIP V2 Speaker to a 802.3af Compliant PoE Switch
Figure 2-1
5 Ethernet cable.
802.3af Compliant PoE Switch
Operations Guide
through Figure 2-3 illustrates how to connect power to the VoIP V2 Speaker.
illustrates how to connect the VoIP V2 Speaker to a 802.3af compliant PoE switch via a Cat

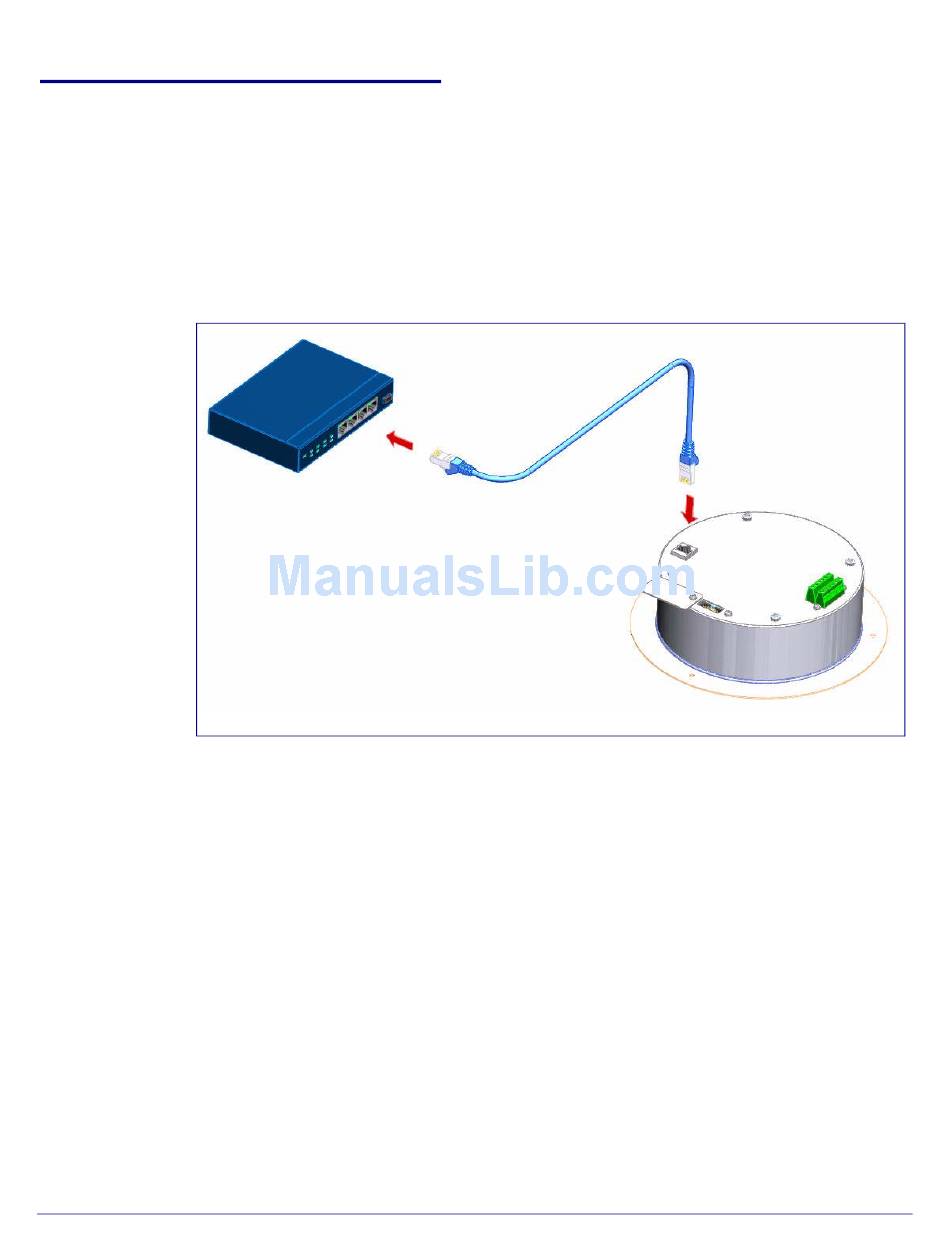

Figure 2-1. VoIP V2 Speaker to a 802.3af Compliant PoE Switch
930274I
Installing the VoIP V2 Speaker
Device Configuration
Cat 5 Ethernet cable
VoIP V2 Speaker
