CyberData 011072 Installation Quick Reference

© 2010, CyberData Corporation, ALL RIGHTS RESERVED 930276B Quick Reference
Installation Quick Reference

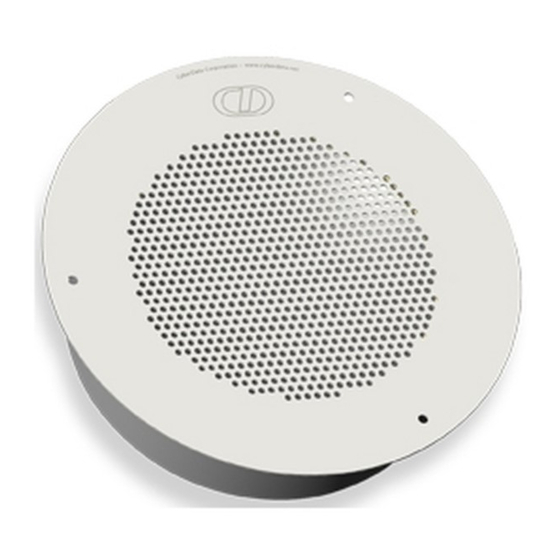

V2 Analog Ceiling Speaker
011072
This V2 Analog Speaker is an option for the CyberData V2 Standard speaker that supports an
amplified audio output for a second analog speaker.
When connecting this Analog speaker to the CyberData V2 IP speaker, the total speaker wattage
is the same. However, by connecting this analog speaker, additional coverage can be realized.
This analog speaker can be mounted with the same mounting hardware option available for the
IP versions of CyberData speakers.
Getting Started
Create a plan for the locations of your speakers.
●
● Prior to installation, consult local building and electrical code requirements.
Typical System Installation
802.3af Compliant Ethernet Switch
1 2
V2 Analog Speaker V2 IP Speaker Clock Kit
Parts
(1) Template for Speaker
(1) Speaker Assembly
and Screw Holes*
* See the last page
of this document
Quick Reference
3 4 5 6
IP Phone IP PBX Server
(1) Drop Ceiling Mounting Kit (1) Drywall Mounting Kit
(3) Plastic Ribbed Anchors
(3) #8 Nylon Thumb Nuts
(3) #8 Fender Washers
(3) #8 Sheet Metal Screws
(3) 8-32 x 1 1/4" Mounting
Screws
930276B © 2010, CyberData Corporation, ALL RIGHTS RESERVED
