1.7 Optional Connections (J9 and J10)

Function
*Auxiliary power input for use
when PoE power is not available.
12 VDC @ 1A.
Relay contacts rated at
30 VDC @ 1A.
5 VDC @ 100 mA.
*Do not use auxiliary power input when speaker J1 is connected to a PoE power source.

1.8 Dimensions

Figure 1-4
3.0 [75]
Operations Guide

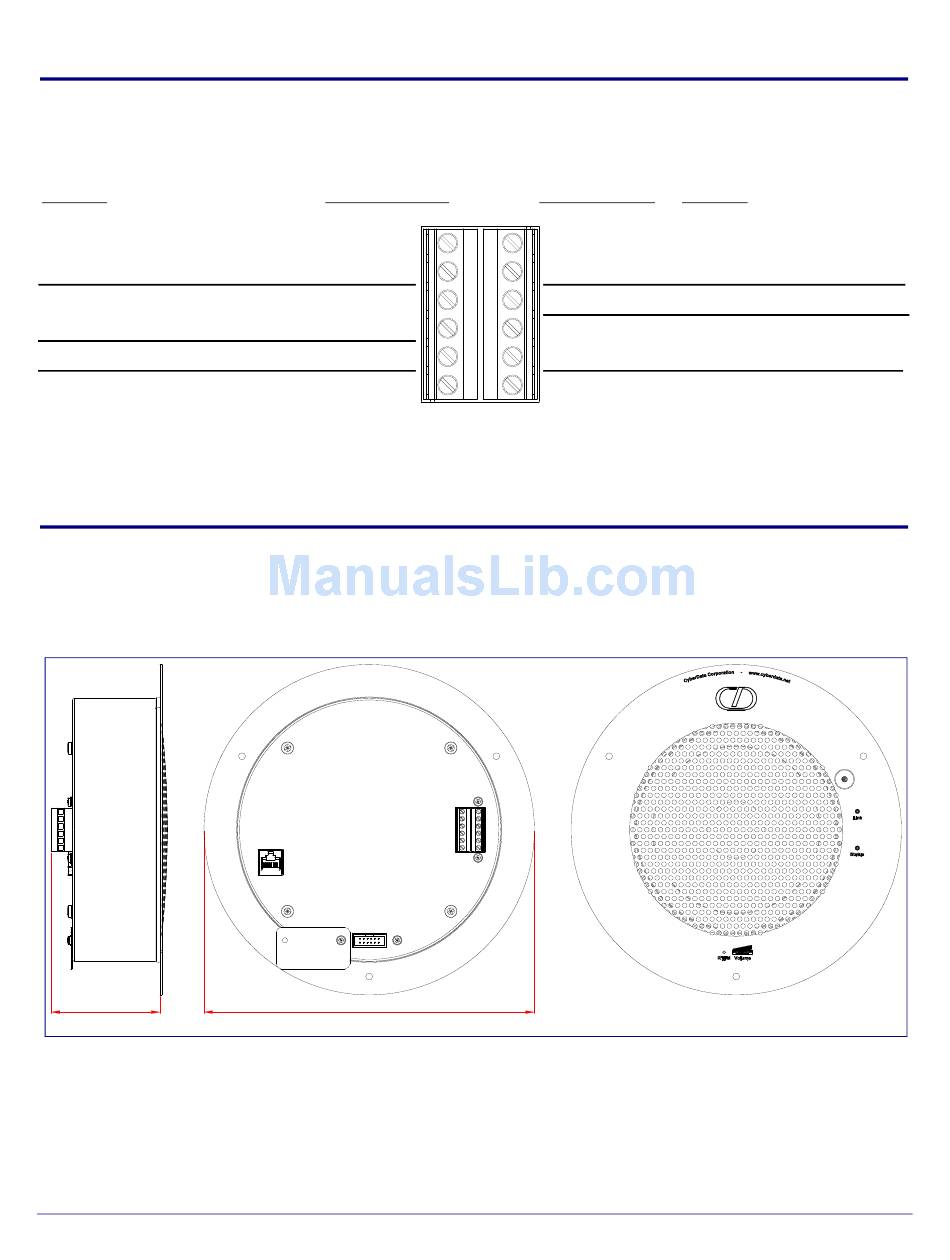

Figure 1-3. Optional Connections (J9 and J10)
J10 Connections
AUX POWER (+)
(+12VDC @ 1A)
AUX POWER (-)
RELAY COM
RELAY NO
+5V OUT
J10
shows the dimensions for the V2 Speaker.
Figure 1-4. Dimensions
9.0 [229]
Dimensions are in Inches [Millimeter]
930274I
Optional Connections (J9 and J10)
J9 Connections
Auxiliary 8-Ohm speaker
AUX SPEAKER (-)
connection (not to be used
when the Clock is connected.
AUX SPEAKER (+)
GND
Audio line - level output to
LINE OUT (-)
external audio amplifier.
LINE OUT (+)
2v P-P into 10k Ohms.
J9
Product Overview
Function
