1.7 Optional Connections (J9 and J10)

Function
*Auxiliary power input for
use when PoE power is not
available. 12 VDC @ 1A.
Relay contacts rated at 
30 VDC @ 1A.
5 VDC @ 100 mA.
*Do not use auxiliary power input when speaker J1 is connected to a PoE power source.
Operations Guide

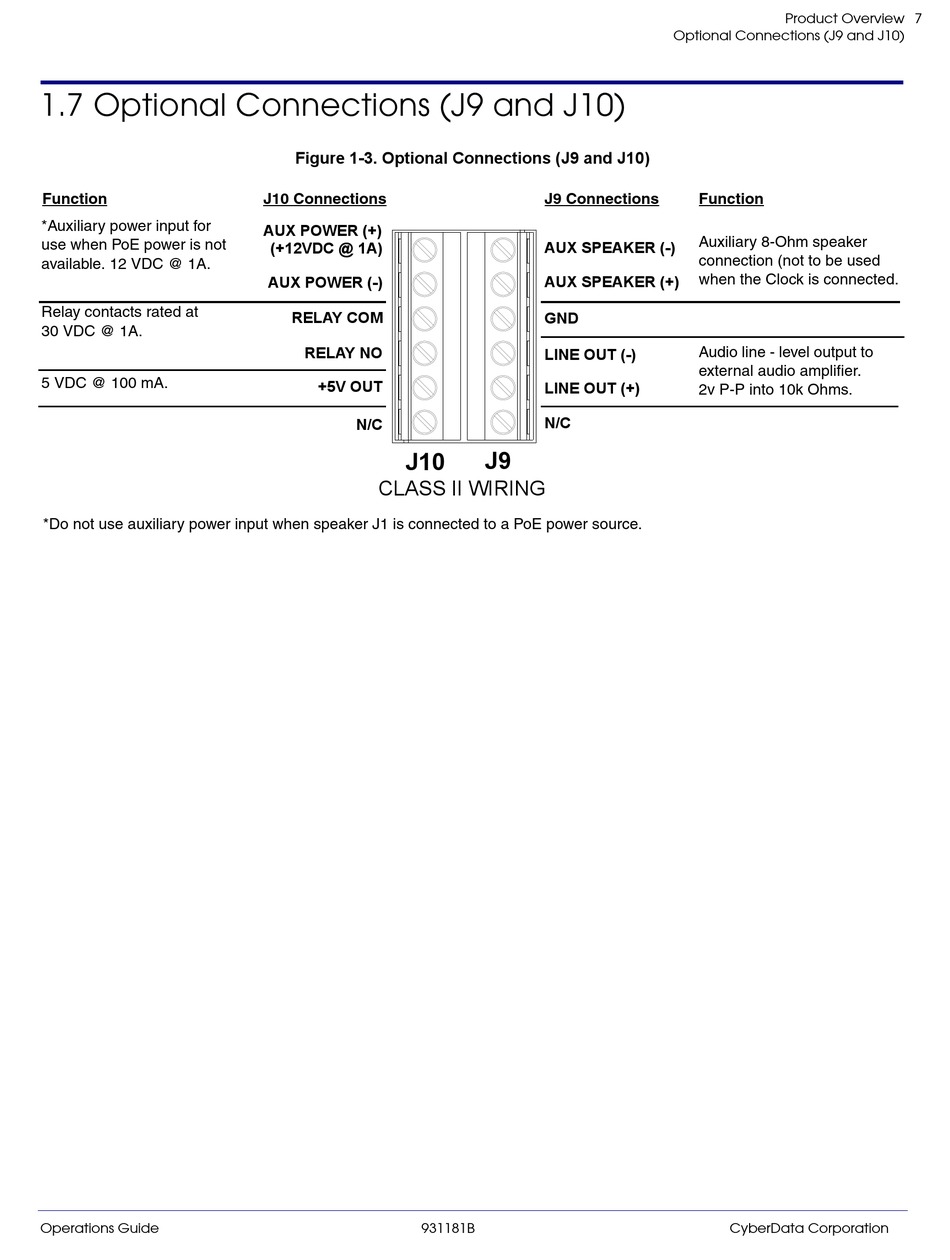

Figure 1-3. Optional Connections (J9 and J10)
J10 Connections
AUX POWER (+)
(+12VDC @ 1A)
AUX POWER (-)
RELAY COM
RELAY NO
+5V OUT
N/C
J10
CLASS II WIRING
931181B
J9 Connections
AUX SPEAKER (-)
AUX SPEAKER (+)
GND
LINE OUT (-)
LINE OUT (+)
N/C
J9
Product Overview
Optional Connections (J9 and J10)
Function
Auxiliary 8-Ohm speaker 
connection (not to be used
when the Clock is connected.
Audio line - level output to 
external audio amplifier. 
2v P-P into 10k Ohms.
