HP c-Class Overview page 43

QuickSpecs
Technical Specifications

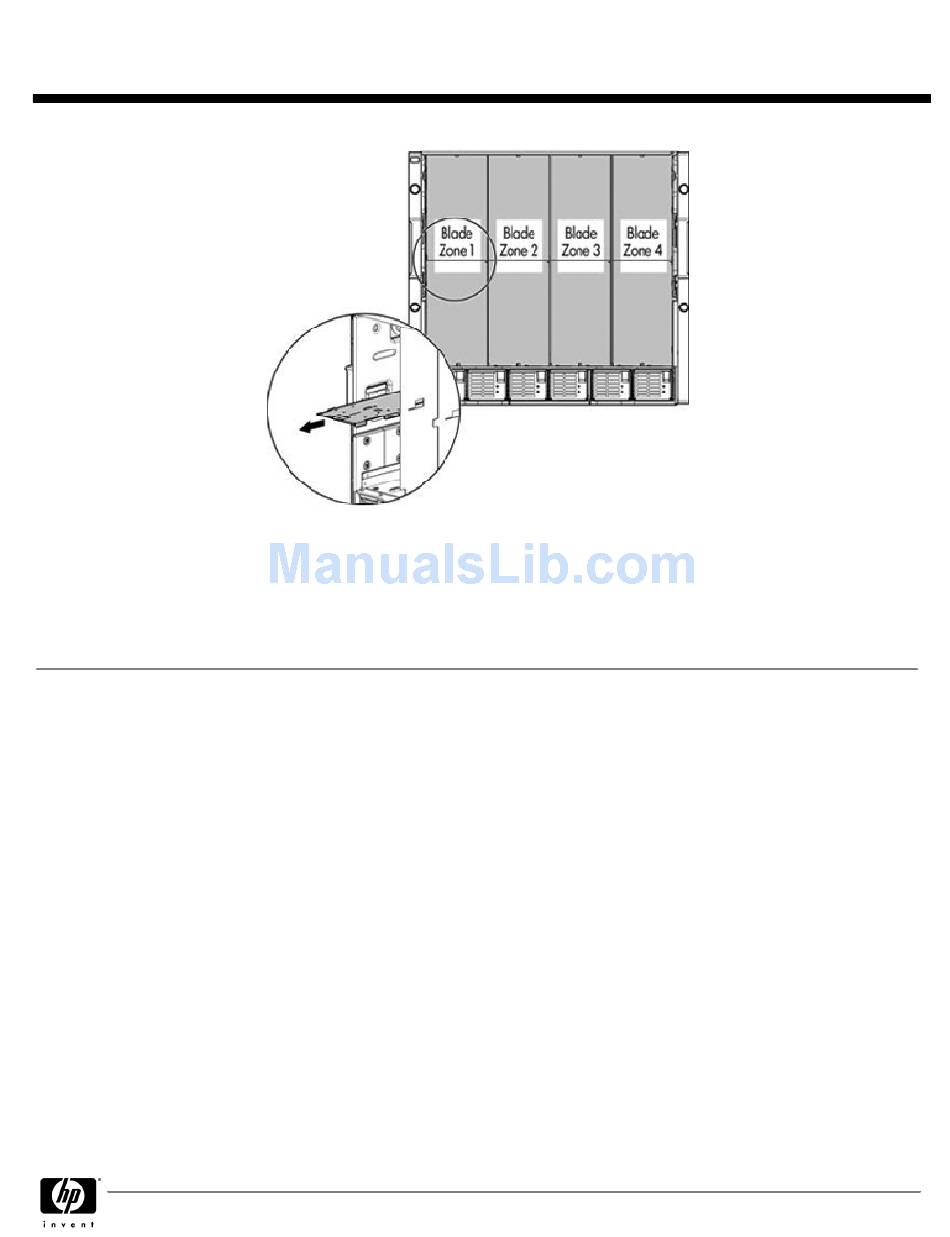

The c7000 enclosure is divided into 4 quadrants by the vertical support metalwork. Within each quadrant a removable divider is
used to support half height devices. To install a full-height blade in any quadrant this divider must be removed. As a consequence a
quadrant can only contain either full-height server blades or half-height server blades.
NOTE: Storage blades and Tape blades can be installed in the same quadrant as both full-height and half-height blades, a bracket NOTE:
NOTE: NOTE:
ships with each SB40c that allows a half-height blade to be mounted on top of an SB40c/Tape Blade that allows a half-height blade
to be mounted on top of the storage blade.
NOTE: NOTE: NOTE: The lower tape or storage blade cannot be removed without first removing the upper half height blade. NOTE:
HP BladeSystem HP BladeSystem HP BladeSystem HP BladeSystem
c3000 Server Blade c3000 Server Blade c3000 Server Blade c3000 Server Blade
Enclosure -Rack Model Enclosure -Rack Model Enclosure -Rack Model Enclosure -Rack Model
Dimensions Dimensions Dimensions Dimensions
Shipping Dimensions Shipping Dimensions Shipping Dimensions Shipping Dimensions
C3000 Enclosure Weight Unboxed C3000 Enclosure Weight C3000 Enclosure Weight C3000 Enclosure Weight
Max Enclosure Weight Max Enclosure Weight Max Enclosure Weight Max Enclosure Weight
(approximated for fully
loaded enclosure)
Temperature Range Temperature Range Temperature Range Temperature Range
Relative Humidity Relative Humidity Relative Humidity Relative Humidity
(non-condensing)
Wet Bulb Temperature Wet Bulb Temperature Wet Bulb Temperature Wet Bulb Temperature
DA - 12517 Worldwide — Version 19 — September 15, 2008
Height
Width
Depth
Height
Width
Depth
Shipping
Unboxed
Shipping
Operating
Non-Operating
Operating
Non-Operating
Operating
Non-Operating
HP BladeSystem c-Class Infrastructure HP BladeSystem c-Class Infrastructure HP BladeSystem c-Class Infrastructure HP BladeSystem c-Class Infrastructure
10.4 in (265 mm)
19.1 in (485 mm)
32.877 in (835 mm)
23.0 in (584 mm)
23.88 in (607 mm)
39.88 in (1013 mm)
145 lb (65.8 kg) approximately
195 lb (88.5 kg) approximately
300 lb (136 kg) approximately
350 lb (158.8 kg) approximately
50° to 95° F (10° to 35° C)
-22° to 140° F (-30° to 60° C)
20% to 80%
5% to 95%
82.4° F (28° C)
101.7° F (38.7° C)
