HP c-Class Overview page 39

QuickSpecs
Technical Specifications
Number of Fans Number of Fans Number of Fans Number of Fans
4
6
Number of Power Supplies Number of Power Supplies Number of Power Supplies Number of Power Supplies (for PS Redundant or non-redundant
mode)
2
3
4
5
6
Number of Power Supplies Number of Power Supplies (For AC Redundant mode) Number of Power Supplies Number of Power Supplies
2
4
6
NOTE: NOTE: NOTE: NOTE: With four fans, the enclosure will support only 4 half-Height Server blades in the bottom half of the enclosure device bays.
With six fans, all 8 server bays may be filled.
NOTE: NOTE: NOTE: NOTE: For correct operation, fans and server blades must be installed in the correct bays. The Onboard Administrator will ensure
that fans and blades are correctly placed before allowing systems to power on.

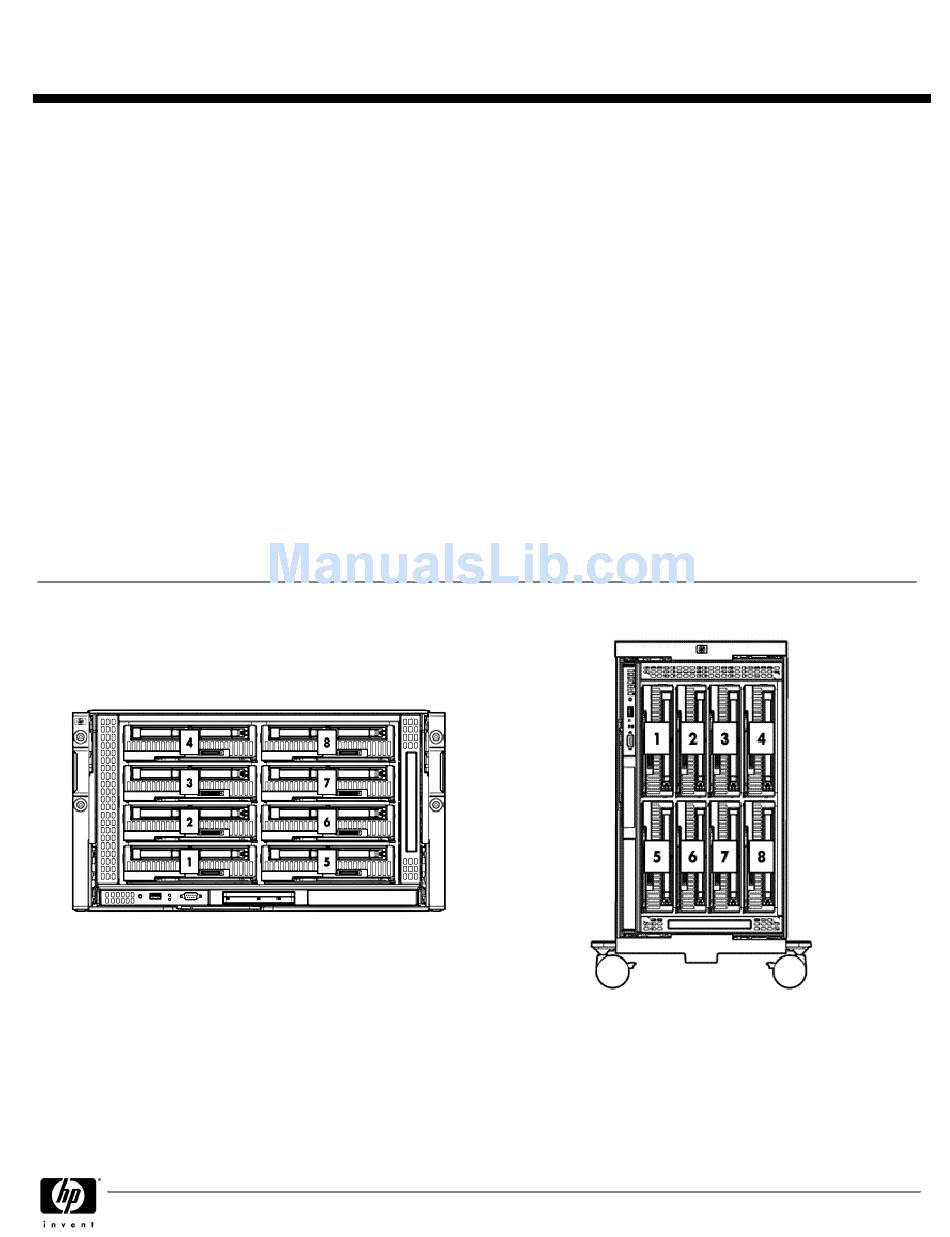

HP BladeSystem c3000 Enclosure - Racks HP BladeSystem c3000 Enclosure - Racks HP BladeSystem c3000 Enclosure - Racks HP BladeSystem c3000 Enclosure - Racks
1. Device Bay 1
2. Device Bay 2
3. Device Bay 3
4. Device Bay 4
5. Device Bay 5
6. Device Bay 6
7. Device Bay 7
Half-height server blade bay numbering Half-height server blade bay numbering Half-height server blade bay numbering Half-height server blade bay numbering
DA - 12517 Worldwide — Version 19 — September 15, 2008
HP BladeSystem c-Class Infrastructure HP BladeSystem c-Class Infrastructure HP BladeSystem c-Class Infrastructure HP BladeSystem c-Class Infrastructure
Fan Bays Used Fan Bays Used Fan Bays Used Fan Bays Used
2,4,5, 6
all bays filled
Power Supply Bays Used Power Supply Bays Used Power Supply Bays Used Power Supply Bays Used
1 & 2
1, 2, & 3
1, 2, 3, 4
1 through 5
All bays
Place Power Supplies in bays: Place Power Supplies in bays: Place Power Supplies in bays: Place Power Supplies in bays:
1 & 4
1, 2, 4, & 5
all bays filled
HP BladeSystem c3000 Enclosure - Tower HP BladeSystem c3000 Enclosure - Tower HP BladeSystem c3000 Enclosure - Tower HP BladeSystem c3000 Enclosure - Tower
1. Device Bay 1
2. Device Bay 2
3. Device Bay 3
4. Device Bay 4
5. Device Bay 5
6. Device Bay 6
7. Device Bay 7
Page 39
