HP c-Class Overview page 40

QuickSpecs
Technical Specifications
8. Device Bay 8
NOTE: Half-height server blades should be populated from the bottom half of the enclosure, in the following order (bays 1, 5, 2, 6, NOTE: NOTE: NOTE:
3, 7, 4, & 8)

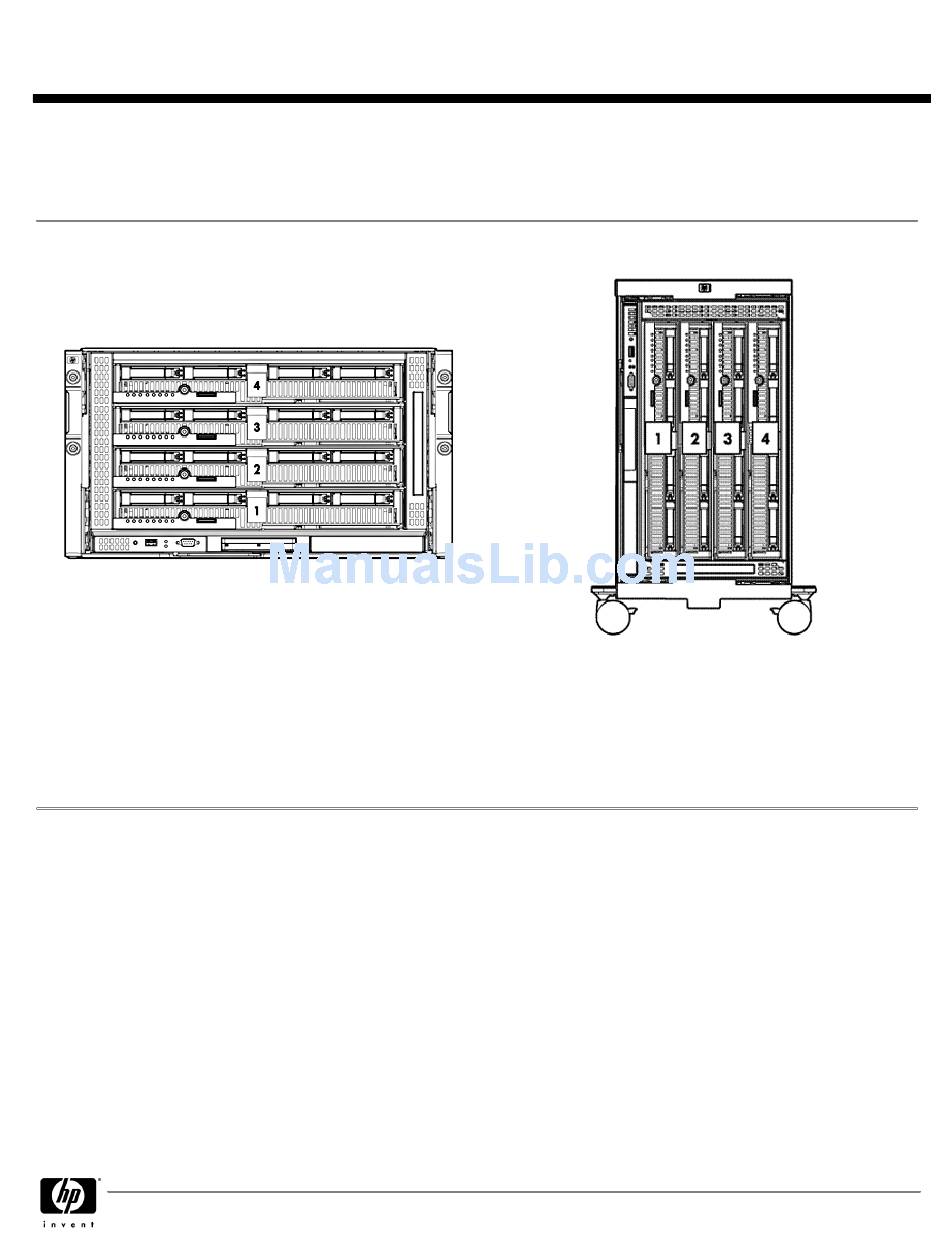

Full-height server blade bay numbering Full-height server blade bay numbering Full-height server blade bay numbering Full-height server blade bay numbering
HP BladeSystem c3000 Enclosure - Racks HP BladeSystem c3000 Enclosure - Racks HP BladeSystem c3000 Enclosure - Racks HP BladeSystem c3000 Enclosure - Racks
1. Device Bay 1
2. Device Bay 2
3. Device Bay 3
4. Device Bay 4
NOTE: NOTE: NOTE: NOTE: Full-height servers should be populated from the bottom to the top (bays 1 thru 4). With four fans, only the bottom 2 bays
can be used; with six fans, all bays can be used.
Mixed Configuration - Full Height and Half Height Population Mixed Configuration - Full Height and Half Height Population Mixed Configuration - Full Height and Half Height Population Mixed Configuration - Full Height and Half Height Population
The c3000 enclosure is divided into 2 zones or quadrants by the horizontal (vertical on Tower model) support metalwork. Zone 1
includes bays 1, 2, 4, & 5; and Zone 2 contains bays 3, 4, 7, & 8. Within each zone a removable divider is used to support half
height devices. To install a full-height blade in any zone this divider must be removed. An optional mini-divider support bracket is
included with every c3000 enclosure. As a consequence of using the mini-divider in the Zone 2, this zone can only contain one full
height blade and 2 half-height blades. Zone 1 can contain either 4 half-height blades, or by removing the divider, it can contain 2
full-height blades.
NOTE: Please read the RTF card (included with each c3000 enclosure) and the "HP BladeSystem c3000 Setup and Installation NOTE: NOTE: NOTE:
Guide" for more information on using bay dividers and the mini-divider for mixed configurations.
NOTE: NOTE: Storage or tape blades can be installed in the same zone as both full-height and half-height blades, a bracket ships with NOTE: NOTE:
each SB40c that allows a half-height blade to be mounted to the left side of a storage or tape blade.
NOTE: NOTE: NOTE: NOTE: In this case, the SB40c or tape blade cannot be removed without first removing the half height blade and mounting bracket.
NOTE: For Mixed configurations of full height and half height population rules; please see the c3000 Enclosure installation and NOTE: NOTE: NOTE:
DA - 12517 Worldwide — Version 19 — September 15, 2008
HP BladeSystem c-Class Infrastructure HP BladeSystem c-Class Infrastructure HP BladeSystem c-Class Infrastructure HP BladeSystem c-Class Infrastructure
8. Device Bay 8
HP BladeSystem c3000 Enclosure - Tower HP BladeSystem c3000 Enclosure - Tower HP BladeSystem c3000 Enclosure - Tower HP BladeSystem c3000 Enclosure - Tower
1. Device Bay 1
2. Device Bay 2
3. Device Bay 3
4. Device Bay 4
