HP c-Class Overview page 2

QuickSpecs
Overview
22. Power Supply Bay 6
23. Insight Display

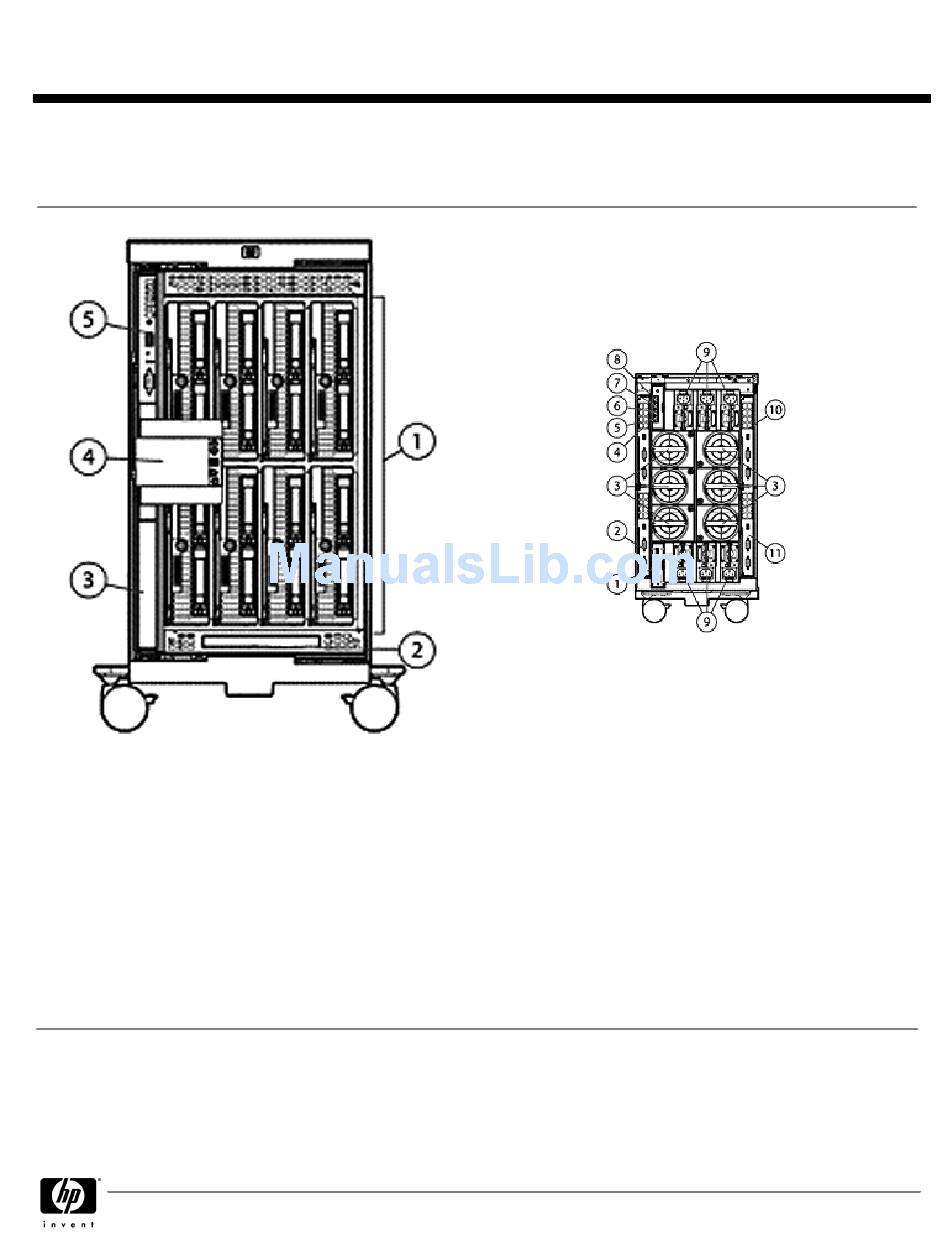

HP BladeSystem c3000 Enclosure - Front View HP BladeSystem c3000 Enclosure - Front View
HP BladeSystem c3000 Enclosure - Front View HP BladeSystem c3000 Enclosure - Front View
1. Device Bays 1 thru 8
2. Enclosure DVD Drive
3. Standby Onboard Administrator (reserved for Future)
4. Insight Display
5. Active Onboard Administrator
DA - 12517 Worldwide — Version 19 — September 15, 2008
HP BladeSystem c-Class Infrastructure HP BladeSystem c-Class Infrastructure HP BladeSystem c-Class Infrastructure HP BladeSystem c-Class Infrastructure
HP BladeSystem c3000 Enclosure - Tower - Rear View HP BladeSystem c3000 Enclosure - Tower - Rear View
HP BladeSystem c3000 Enclosure - Tower - Rear View HP BladeSystem c3000 Enclosure - Tower - Rear View
1. Local KVM interface
2. Interconnect Bay 1
3. Active Cool Fans
4. Interconnect Bay 2
5. Enclosure Up-link and Service Port
6. Enclosure Down-link
7. iLO/Onboard Administrator Port
8. iLO/Onboard Administrator Port 2 (reserved for future)
9. Power Supplies
10. Interconnect Bay 4
11. Interconnect Bay 3
Page 2
