5.1.7 PCI-1610AJU

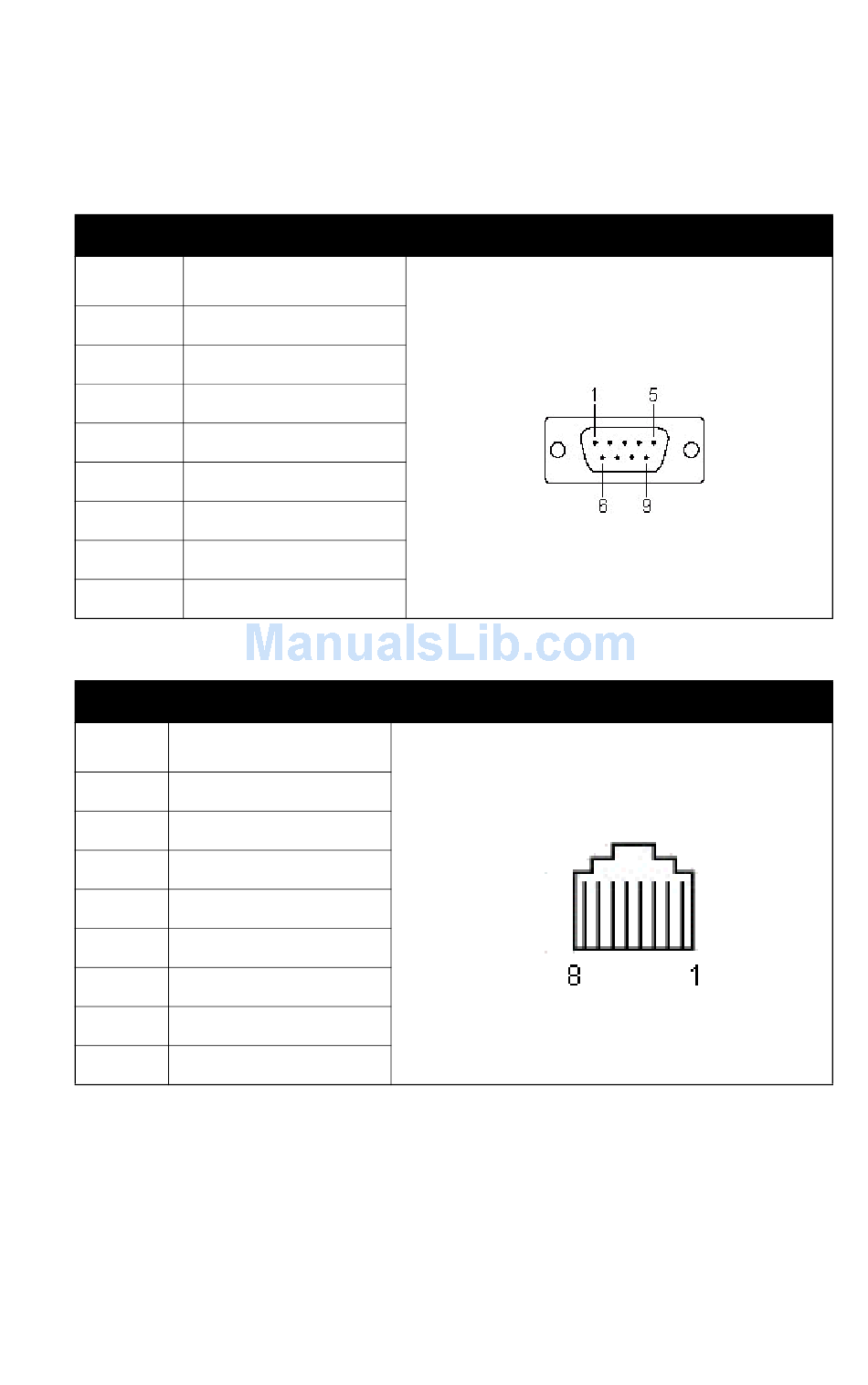

The following table and figure show the pin assignments for the PCI-
1610AJU card's male DB9 on the cable and RJ45 on the bracket in RS-
232 modes.
Table 5.12: PCI-1610AJU male DB9 on cable
Pin RS-232
1 DCD
2 RxD
3 TxD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
Table 5.13: PCI-1610AJU RJ45 on bracket
Pin RS-232
1 RTS
2 DTR
3 RxD
4 DSR
5 TxD
6 GND
7 DCD
8 CTS
81 Chapter 5
