Summary of Contents for Advantech PCI-1602UP
- Page 1 User Manual PCI/ PCI Express COMM Series User Manual Industrial Serial Communication Cards...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
-
Page 3: Declaration Of Conformity
This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information. -
Page 4: Packing List
Warnings, Cautions and Notes Warning! Warnings indicate conditions, which if not observed, can cause personal injury! Caution! Cautions are included to help you avoid damaging hardware or losing data. e.g. There is a danger of a new battery exploding if it is incorrectly installed. Do not attempt to recharge, force open, or heat the battery. -
Page 5: Safety Instructions
The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein. - Page 6 Safety Precaution - Static Electricity Follow these simple precautions to protect yourself from harm and the products from damage. To avoid electrical shock, always disconnect the power from your PC chassis before you work on it. Don't touch any components on the CPU card or other cards while the PC is on.
-
Page 7: Table Of Contents
Jumper and Switch Locations ..............11 Figure 2.1 PCI-1601A/B Silk Screen ......... 11 Figure 2.2 PCI-1602 Silk Screen ..........11 Figure 2.3 PCI-1602UP Silk Screen .......... 12 Figure 2.4 PCI-1603 Silk Screen ..........12 Figure 2.5 PCI-1604UP Silk Screen .......... 13 Figure 2.6 PCI-1610A/B, PCI-1612A/B Silk Screen .... - Page 8 Table 5.1: PCI-1601A/B and PCI-1602 Male DB9 on bracket... 40 5.1.2 PCI-1602UP................40 Table 5.2: PCI-1602UP Male DB9 on cable......40 Table 5.3: PCI-1602UP Female DB25 on bracket ....41 5.1.3 PCI-1603..................41 Table 5.4: PCI-1603 Male DB9 on bracket........ 41 5.1.4...
- Page 9 Male DB9 on cable ........... 48 5.1.8 PCI-1622B/C................48 Table 5.16: PCI-1622B/C Male DB9 on cable ......48 Table 5.17: PCI-1622B/C Female DB78 on bracket....49 Wiring ...................... 50 5.2.1 5.2.1 RS-232 Signal Wiring............50 Table 5.18: Terminal or PC (DTE) Connections......50 Table 5.19: Modem Connections..........
- Page 10 PCI/ PCI Express-Communication User Manual...
-
Page 11: Chapter 1 Introduction
Chapter Introduction... -
Page 12: Description
SCSI, LAN, etc. Advantech serial communication card leverages the “Plug and Play” capability defined in the PCI 2.1/2.2 bus specification. The board requires only one PCI slot within the personal computer and provides independent serial channels. -
Page 13: Specifications
Models PCI bus specification 2.2 PCI-1601A/B, PCI-1602 PCI-1610A/B, PCI-1612A/B PCI-1620A/B PCI bus specification 2.2 PCI-1602UP, PCI-1603, PCI-1604UP PCI-1610C, PCI-1612C PCI-1622C PCI Express bus specifications PCIe-1620A/B, PCIe-1622A/B IRQ: All ports use the same IRQ assigned by PCI/ PCIe Plug-and-Play ... -
Page 14: Table 1.1: Data Signals
Data Signals: Table 1.1: Data Signals Communication Interfaces Bus Interface Model Name Ports Current RS-232 RS-422 RS-485 Loop Universal Low-Profile PCI PCI-1602UP V ** PCI-1604UP Universal PCI PCI-1601A/B PCI-1602 PCI-1603 PCI-1610A/B/C PCI-1612A/B/C PCI-1620A/B PCIe-1622B/C PCI Express PCIe-1620A/B PCIe-1622A/B 1. RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND 2. -
Page 15: Table 1.2: Power Consumption
Power Consumption Table 1.2: Power Consumption Model Typical PCI-1601A/B 220 mA(+5V) 270 mA(+5V) PCI-1602 250 mA(+5V) 300 mA(+5V) PCI-1602UP 300 mA(+5V) PCI-1603 250 mA(+5V) 300 mA(+5V) PCI-1604UP 300 mA(+5V) 60 mA(+12V) 80 mA(+12V) PCI-1610A/B 150 mA(+5V) 180 mA(+5V) PCI-1610C... -
Page 16: Ordering Information
2-port RS-422/485 PCI Comm. Card w/Surge PCI-1602 2-port RS-422/485 PCI Comm. Card w/Isolation 2-port RS-422/485 Low Profile PCI Comm. Card w/Surge + Isolation PCI-1602UP PCI-1603 2-port RS-232 PCI Comm. Card w/Isolation 2-port RS-232 Low Profile PCI Comm. Card w/Surge + Isolation... -
Page 17: Table 1.4: Pci/ Pcie Communication Cards Selection Guide
Form Factor Ports Comm. Interface Protection **All are Support Surge Isolation Universal architecture. PCI-1601 1000V RS-422/485 2500V PCI-1602 Low-Profile 1000V 2500V PCI-1602UP Universal RS-232/Current Loop 2500V PCI-1603 Low-Profile 1000V 2500V PCI-1604UP RS-232 Universal 1000V PCI-1610 RS-232 1000V 2500V 1000V PCI-1612... - Page 18 PCI/ PCI Express-Communication User Manual...
-
Page 19: Chapter 2 Hardware Configuration
Chapter Hardware Configuration... -
Page 20: Initial Inspection
Initial Inspection 1. PCI/ PCI Express Communication card 2. ICOM CD-ROM including: a. User manual b. Industrial Communication Driver c. Utility tool We carefully inspect our PCI/ PCI Express communication card mechanically and electrically before shipping. It should be free of marks and scratches and in perfect working condition on receipt. -
Page 21: Jumper And Switch Locations
Jumper and Switch Locations Figure 2.1 PCI-1601A/B Silk Screen Figure 2.2 PCI-1602 Silk Screen 11 PCI/ PCI Express-Communication User Manual... -
Page 22: Figure 2.3 Pci-1602Up Silk Screen
Figure 2.3 PCI-1602UP Silk Screen Figure 2.4 PCI-1603 Silk Screen PCI/ PCI Express-Communication User Manual... -
Page 23: Figure 2.5 Pci-1604Up Silk Screen
Figure 2.5 PCI-1604UP Silk Screen Figure 2.6 PCI-1610A/B, PCI-1612A/B Silk Screen 13 PCI/ PCI Express-Communication User Manual... -
Page 24: Figure 2.7 Pci-1610/1612C Silk Screen
Figure 2.7 PCI-1610/1612C Silk Screen Figure 2.8 PCI-1620A/B Silk Screen PCI/ PCI Express-Communication User Manual... -
Page 25: Figure 2.9 Pci-1622B Silk Screen
Figure 2.9 PCI-1622B Silk Screen Figure 2.10 PCI-1622C Silk Screen 15 PCI/ PCI Express-Communication User Manual... -
Page 26: Figure 2.11Pcie-1620A/B Silk Screen
Figure 2.11 PCIe-1620A/B Silk Screen Figure 2.12 PCIe-1622A/B Silk Screen PCI/ PCI Express-Communication User Manual... -
Page 27: Jumper Settings
Jumper Settings This section tells how to set the jumpers to configure your card. It gives the card default configuration and your options for each jumper. 2.3.1 How to Set Jumpers You configure your card to match the needs of your application by setting jumpers. A jumper is the simplest kind of electric switch. -
Page 28: Mode Selection By Jumper/Dip Settings
2.3.2.1 PCI-1603 The board will be shipped in the RS-232 mode, passive Rx and active Tx. On the 10*2 pin jumper groups (JP2 & JP4)— A, B, C, D and E are set to RS-232 transmis- sion mode. On the 6*2 pin jumper groups (JP3 & JP5)—C, D and E are set to passive Rx and active Tx. -
Page 29: Figure 2.16Pcie-1622 Series Rs-232/422/485 Selection
2.3.3.2 RS-232/422/485 Selection (for PCIe-1622A/B) Should you wish to configure the PCIe-1622A/B to operate in the RS-232 or RS422/ RS-485 mode, you will locate jumpers at CN10 to CN17 to make connection as shown below. Figure 2.16 PCIe-1622 Series RS-232/422/485 Selection 2.3.3.3 RS-422/485 Selection (for PCI-1601A/B/1602/1602UP) You can set each port individually for either RS-422 (the default) or RS-485 opera-... -
Page 30: Figure 2.20 Active Mode Jumper Setting
Then decide which mode the Tx and Rx will operate in. The options are active or pas- sive. In the active mode, the Tx or Rx will generate the current requirement for data transfer over the link. In the passive mode, the current is generated by the card at the other end of the link. -
Page 31: Table 2.2: Enable Mode Selection
2.3.3.5 Enable mode selection You set the Enable mode using two, four or eight position DIP switches, one for each port. If the switches are set to "AUTO", the driver automatically senses the direction of the data flow and switches the direction of transmission. No handshaking is neces- sary. -
Page 32: Card Installation
Card Installation Note! We strongly recommend that you install the software driver before you install the hardware into your system, since this will guarantee a smooth and trouble-free installation process. Turn off your PC’s power supply whenever you install or remove the PCI/PCIe communication card or its cables. -
Page 33: Chapter 3 Driver Setup & Installation
Chapter Driver Setup & Installation... -
Page 34: Introduction
Introduction This chapter describes the driver installation, configuration and removal procedures for the for the afore mentioned Windows operating system. We strongly recommend that you install the software driver before you install the hardware into your system, since this will guarantee a smooth and trouble-free installation process. Driver Setup Windows operating system supports COM1 to COM256, meaning up to 256 serial ports. - Page 35 After the setup program is launched, you’ll see the following Screen. Click the Continue button and the catalogue select page appears. Then click the Installation button for installation. 25 PCI/ PCI Express-Communication User Manual...
- Page 36 Choose the driver you want to install, then click the hyperlink. PCI/ PCI Express-Communication User Manual...
-
Page 37: Driver Uninstall
Driver Uninstall Insert the ICOM DVD and click the driver you want to uninstall. Choose “Modify” radio button if you want to save another driver. Or choose “Remove” radio button to remove all installed components. 27 PCI/ PCI Express-Communication User Manual... - Page 38 PCI/ PCI Express-Communication User Manual...
-
Page 39: Icom Tools
Chapter ICOM Tools... -
Page 40: Introduction
Introduction Advantech ICOM Tools is a convenient utility that has been designed to help you test the performance of ICOM cards through analyzing the port status. It features an easy to use graphical user interface that will soon make you familiar with testing via menu commands and toolbar buttons. -
Page 41: Tool Bar
4.3.2 Tool Bar Using the Tool Bar buttons is a more intuitive way to implement the functions of ICOM Tools. Port Select: Selects the port(s) you want to perform testing on Port Setup: Sets up configuration of the port you have selected Port Close: Closes the port you have selected Port Run: Runs the port test on the port you have selected Port Stop: Stops the port test on the port you have selected... -
Page 42: Port Status
receive data later. Another port, which operates as passive loopback, will retransmit any received data on the Rx line and then send these data onto the Tx line. These two modes will form a logical loop and help to verify the integrity of data transmitted over the communication link. - Page 43 33 PCI/ PCI Express-Communication User Manual...
-
Page 44: Status Bar
For information about specific messages on this area, please refer to Section 4.5, Messages on the Status Bar and Message Logo area. 4.4 Using the ICOM Tools Utility To launch the ICOM Tools testing utility, access Start/Programs/Advantech PCI Comm Tools/COM Examine Tools to start the port testing utility. 4.4.1 4.4.1 Port Selection... -
Page 45: Figure 4.3 Ports You Select Will Appear In The Selected Port Checkbox Group
Select the port(s) you want to perform test on from the checkboxes next to each COM port. You can either click the checkbox or double-click the name(s) of the port(s) to select/deselect port(s) to perform the test on. The port(s) you selected will immediately appear in the Selected Port field. -
Page 46: Configuring A Port
4.4.2 Configuring a Port You can choose to configure a specific port (or to configure all ports) before running your test. Just click a Com Port Tab to select the port you want to configure, and then click the Port Setup button or use the Port/Setup menu command (or if you want to configure all ports at once, just click the All Ports Setup button or access the... -
Page 47: Close Port
Figure 4.6 Test Information on the Performance Listing Area The Performance Listing Area Port The com port number Rx length Received packet length in bytes Bytes/Sec Transmission rate in Bytes/Sec Last Abnormal Status Last abnormal status Stop the Test If you want to stop the test on a specific port, just click Port Stop button or access Port/Stop menu command (or if you want to stop test on all ports, just click All Ports Stop... -
Page 48: Message Logo Messages
N/A PORT: the port is not available in the system READY: the port is ready to run or to be configured. RUNNING: the test is running on the port STOPPED: the test running on the port has been stopped by the user 4.5.2 Message Logo Messages Port Opened: The user has opened the port... -
Page 49: Pin Assignments And Wiring
Chapter Pin Assignments and Wiring... -
Page 50: Pin Assignments
5.1.2 PCI-1602UP The following tables and figures show the pin assignments of 1 female DB25 connec- tor on the bracket to two male DB9 for PCI-1602UP card in RS-422 and RS-485 modes. Table 5.2: PCI-1602UP Male DB9 on cable RS-422... -

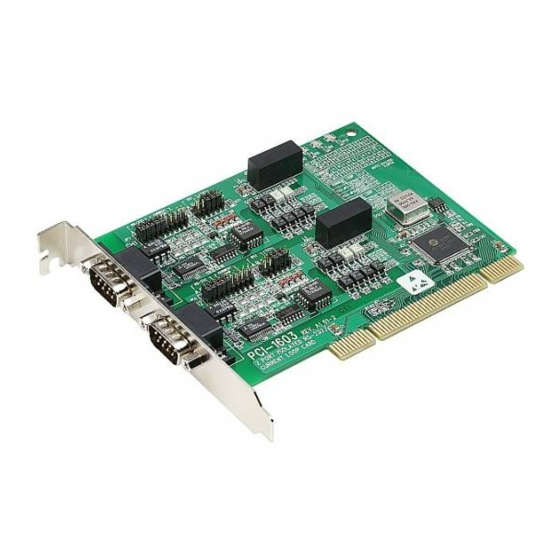

Page 51: Pci-1603
Table 5.3: PCI-1602UP Female DB25 on bracket RS-422 RS-485 RS-422 RS-485 2_Tx- 2_Data- 2_RTS- 2_Tx+ 2_Data+ 2_RTS+ 2_Rx+ 2_CTS+ 2_Rx- 2_CTS- 2_GND 2_GND 1_Tx- 1_Data- 1_RTS- 1_Tx+ 1_Data+ 1_RTS+ 1_Rx+ 1_CTS+ 1_Rx- 1_CTS- 1_GND 1_GND 5.1.3 PCI-1603 The following table and figure shows the pin assignments of two male DB9 connectors on the bracket for PCI-1603 in RS-232 and current loop modes. -
Page 52: Pci-1604Up
5.1.4 PCI-1604UP The following tables and figures show the pin assignments of 1 female DB25 connec- tor on the bracket to two male DB9 for PCI-1604UP card in RS-232 modes. Table 5.5: PCI-1604UP Male DB9 on cable RS-232 Table 5.6: PCI-1604UP Female DB25 on bracket RS-232 RS-232 2_DCD... -
Page 53: Pci-1610A/B/C
5.1.5 PCI-1610A/B/C The following tables and figures show the pin assignments of 1 female DB37 connec- tor on the bracket to male DB9/DB25 for PCI-1610A/B/C cards in RS-232 modes. Table 5.7: PCI-1610A/B/C Male DB9 on cable RS-232 Table 5.8: PCI-1610A/B/C Male DB25 on cable RS-232 43 PCI/ PCI Express-Communication User Manual... -
Page 54: Table 5.9: Pci-1610A/B/C Female Db37 On Bracket
Table 5.9: PCI-1610A/B/C Female DB37 on bracket RS-232 RS-232 3_RI 3_DCD 3_DTR 3_GND 3_DSR 3_CTS 3_RTS 3_RxD 3_TxD 4_RI 4_DCD 4_DTR 4_GND 4_DSR 4_CTS 4_RTS 4_RxD 4_TxD 2_RI 2_DCD 2_DTR 2_GND 2_DSR 2_CTS 2_RTS 2_RxD 2_TxD 1_RI 1_DCD 1_DTR 1_GND 1_DSR 1_CTS 1_RTS... -
Page 55: Pci-1612A/B/C
5.1.6 PCI-1612A/B/C The following tables and figures show the pin assignments of 1 female DB37 connector on the bracket to male DB9/DB26 for the PCI-1612A/B/C cards in RS-232, RS-422 and RS-485 modes. Table 5.10: PCI-1612A/B/C Male DB9 on cable RS-232 RS-422 RS-485 Data-... -
Page 56: Table 5.12: Pci-1612A/B/C Female Db37 On Bracket
Table 5.12: PCI-1612A/B/C Female DB37 on bracket RS-232 RS-422 RS-485 RS-232 RS-422 RS-485 3_RI 3_CTS- 3_DCD 3_TxD- 3_Data- 3_DTR 3_RxD- 3_GND 3_GND 3_GND 3_DSR 3_RTS- 3_CTS 3_CTS+ 3_RTS 3_RTS+ 3_RxD 3_TxD+ 3_Data+ 3_TxD 3_RxD+ 4_RI 4_CTS- 4_DCD 4_TxD- 4_Data- 4_DTR 4_RxD 4_GND 4_GND... -
Page 57: Pci-1620A/B, Pcie-1620A/B And Pcie-1622A/B
5.1.7 PCI-1620A/B, PCIe-1620A/B and PCIe-1622A/B The following tables and figures show the pin assignments of 1 female DB62 connec- tor on the bracket to DB9/DB25 for the PCI-1620A/B and PCIe-1620A/B cards. Table 5.13: PCI-1620A/B, PCIe-1620A/B and PCIe-1622A/B Female DB62 on bracket RS-232 RS-422 RS-485... -
Page 58: Male Db9 On Cable
Table 5.14: PCI-1620A/B/C, PCIe-1620A/B, and PCIe-1622A/B Male DB9 on cable RS-232 RS-422 RS-485 Table 5.15: PCI-1620A/B/C, PCIe-1620A/B, and PCIe-1622A/B Male DB25 on cable RS-232 RS-422 RS-485 5.1.8 PCI-1622B/C The following table and figure show the pin assignments of 1 female DB78 connector on the bracket to DB9/DB25 for the PCI-1622B/C cards in RS-422 and RS-485 modes. -
Page 59: Table 5.17: Pci-1622B/C Female Db78 On Bracket
Table 5.17: PCI-1622B/C Female DB78 on bracket RS-422 RS-485 RS-422 RS-485 8_GND 8_GND 8_TxD- 8_Data- 8_RTS- 8_TxD+ 8_Data+ 8_RTS+ 7_GND 7_GND 7_RTS- 7_TxD- 7_Data- 7_RTS+ 7_TxD+ 7_Data+ 6_RTS- 6_TxD- 6_Data- 6_RTS+ 6_TxD+ 6_Data+ 5_GND 5_GND 5_RTS- 5_TxD- 5_Data- 5_RTS+ 5_TxD+ 5_Data+ 4_RTS- 4_TxD-... -
Page 60: Wiring
Wiring 5.2.1 5.2.1 RS-232 Signal Wiring Since the RS-232 interface is not strictly defined, many devices have their own con- nection methods which may ignore some signal lines or define reserved lines for other functions. It is best to refer to the user’s manual for your device for installation instructions. -
Page 61: Rs-422 Signal Wiring
For DTE to DCE connections, use a straight through cable (i.e., you don't have to reverse lines 2 and 3, lines 4 and 5, and lines 6 and 20 since, in general, the DCE RS-232 interfaces are reversed themselves). Table 5.20: Terminal without Handshake DB-25 Male Terminal, PC (DTE) Signal... -
Page 62: Rs-485 Signal Wiring
5.2.3 RS-485 Signal Wiring The RS-485 standard supports half-duplex communication. This means that just two wires are needed to both transmit and receive data. Handshaking signals (such as RTS, Request To Send) are normally used to control the direction of the data flow and to switch the transmission accordingly. -
Page 63: Appendix A Scale Of Connectors
Appendix Scale of Connectors... -
Page 64: Connector Size Comparrison
Connector Size Comparrison Figure A.1 DB9 Male Figure A.2 DB25 Female PCI/ PCI Express-Communication User Manual... -
Page 65: Figure A.3 Db25 Male
Figure A.3 DB25 Male Figure A.4 DB37 Female 55 PCI/ PCI Express-Communication User Manual... -
Page 66: Figure A.5 Db62 Female
Figure A.5 DB62 Female PCI/ PCI Express-Communication User Manual... - Page 67 57 PCI/ PCI Express-Communication User Manual...
- Page 68 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2014...
