- Page 1 User Manual PCI-1761 8-ch Relay & 8-ch Isolated Digital Input PCI Card...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
-
Page 3: Declaration Of Conformity
EMI leakage, we strongly recommend the use of CE-compliant industrial enclo- sure products. Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. -
Page 4: Safety Instructions
The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein. -
Page 5: Table Of Contents
I/O Connectors ..................9 Figure 2.2 I/O Connector Pin Assignments ......... 9 Driver Installation ..................9 Figure 2.3 Advantech Automation Software Setup....10 Figure 2.4 Driver Setup Options ..........10 Hardware Installation ................11 Figure 2.5 Device Name on the Device Manager...... 12 Device Setup &... - Page 6 Board ID - BASE+2H ................27 Table C.4: Register for Board ID..........27 Interrupt Status Register - BASE+3H/4H/5H .......... 28 Table C.5: Register for Interrupt Status ........28 Interrupt Control Register - BASE+3H/4H/5H ......... 29 Table C.6: Register for Interrupt Control........29 PCI-1761 User Manual...
-
Page 7: Chapter 1 Overview
Chapter Overview... -
Page 8: Introduction

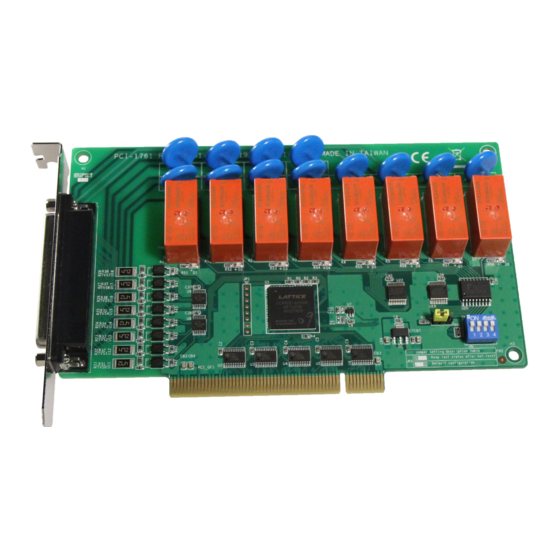

When the system has undergone a hot reset (i.e. without turning off the system power), the PCI-1761 can either retain outputs values of each channel, or return to its default configuration as open status, depending on its on-board jumper setting. This function protects the system from wrong operations during unexpected system resets. -
Page 9: Applications
Plug-and-Play function. Board ID The PCI-1761 has a built-in DIP Switch that helps define each card's ID when multi- ple PCI-1761 cards have been installed on the same PC chassis. The board ID set- ting function is very useful when users build their system with multiple PCI-1761 cards. -
Page 10: Figure 1.1 Installation Flow Chart
Start to write your own application Figure 1.1 Installation Flow Chart Software Overview Advantech offers a rich set of DLL drivers, third-party driver support and application software to help fully exploit the functions of your PCI-1761 card: DLL driver (on the companion CD-ROM) ... -
Page 11: Accessories
Appendix C, Register Structure and Format. Accessories Advantech offers a complete set of accessory products to support the PCI-1761 card. These accessories include: Wiring Cable The PCL-10137 shielded cable is specially designed for PCI-1761 cards to provide high resistance to noise. - Page 12 PCI-1761 User Manual...
-
Page 13: Chapter 2 Installation
Chapter Installation... -
Page 14: Unpacking
PC) issues a reset signal on the PCI bus. Some users will want to clear their relays only as part of system power-on. The PCI-1761 satisfies both these needs by provid- ing jumper JP2. Depending on the application, this capability may allow relay outputs to be "OFF"... -
Page 15: I/O Connectors
I/O Connectors Pin Assignments Figure 2-2 shows the pin assignments for the 37-pin I/O connector on the PCI-1761 Figure 2.2 I/O Connector Pin Assignments Driver Installation We recommend you install the driver before you install PCI-1761 card into your sys- tem, since this will guarantee a smooth installation process. -
Page 16: Figure 2.3 Advantech Automation Software Setup
Figure 2.3 Advantech Automation Software Setup Select the Device Manager option to install. Select the Individual Driver option. Select the specific device then follow the installation instructions step by step to complete your device driver installation and setup. Figure 2.4 Driver Setup Options... -
Page 17: Hardware Installation
2. Plug in the power cord and turn on the computer . After the PCI-1761 card is installed, you can verify whether it is properly installed on your system in the Device Manager: Access the Device Manager through Control Panel/System/Device Manager. -
Page 18: Figure 2.5 Device Name On The Device Manager
Setup, Configuration and Testing of your device. Device Setup & Configuration The Advantech Device Manager program is a utility that allows you to set up, config- ure and test your device, and later stores your settings on the system registry. These settings will be used when you call the APIs of Advantech Device Drivers. -
Page 19: Figure 2.6 Device Manager Dialog Box
Please click the Setup button to configure your device. On the Device Setting dialog box (Fig. 2-7), you can configure the ID0 ~ ID7 Interrupt trigger mode either as Rising Edge or Falling Edge. Figure 2.7 Device Setting Dialog Box PCI-1761 User Manual... - Page 20 After your card is properly installed and configured, you can click the Test button to Note! As we have noted, the device name 001:<PCI-1761 BoardID=0 I/ O=c400H> begins with a device number "001", which is specifically assigned to each card. The device number is passed to the driver to specify which device you wish to control.
-
Page 21: Chapter 3 Signal Connections
Chapter Signal Connections... -
Page 22: Overview
This chapter provides useful information about how to connect input and output signals to the PCI-1761 via the I/O connector. Isolated Digital Input Connections The PCI-1761 has 8 isolated digital input channels designated IDI0~IDI7. Each of isolated digital input channel accepts 10~50 V voltage inputs, and accept bi-direc- tional input. -
Page 23: Relay Connections
Relay Connections After power on, the initial relay output status of PCI-1761 is shown as below: Figure 3.2 Relay Output Connection A write operation to I/O address, BASE +0, will change the output status of each relay. For example, if Bit 0 of BASE +0 is set "1" (logic high), relay 0, K0, will switch from position "NORMALLY CLOSED", R0_NC, to position "NORMALLY OPEN",... - Page 24 PCI-1761 User Manual...
- Page 25 Appendix Specifications...
-
Page 26: Appendix A Specifications
7 / 2 ms, max. 15 / 6 ms Resistance Contact: 100 mΩ max. @ 1A/12V Insulation: 10 GΩ min. @ 25°C/ 500V /50%RH Life Expectancy Mechanical 3 x 10 cycles min. Electrical cycles min. @ 8A/250V 2 x 10 cycles min. @ 3A/250V PCI-1761 User Manual... -
Page 27: Table A.3: General Specifications
Operating 0 ~ +60 °C (32 ~ 140°F) (refer to IEC 68-2-1,2) Storage -20 ~ +70 °C (-4 ~158 °F) Relative Humidity 5 - 95 % RH non-condensing (refer to IEC 68-2-3) Certifications CE Class A certified PCI-1761 User Manual... - Page 28 PCI-1761 User Manual...
-
Page 29: Appendix B Block Diagram
Appendix Block Diagram... -
Page 30: Block Diagram
Block Diagram Appendix PCI-1761 User Manual... -
Page 31: Appendix C Register Structure And Format
Appendix Register Structure and Format... -
Page 32: Overview
For example, BASE+0 is the card's base address and BASE+7 is the base address plus seven bytes. Table C-1 shows the function of each register of the PCI-1761 or driver and its address relative to the card's base address. -
Page 33: Relay I/O Registers - Base+0H
C.3 Relay I/O Registers - BASE+0H The PCI-1761 offers 8-ch relay actuators. These I/O channels use the input and out- put ports at addresses BASE+0H. Table C.2: Register for Relay Output Status Read Relay Output Status Bit # BASE +0H Table C.3: Register for Relay Output... -
Page 34: Interrupt Status Register - Base+3H/4H/5H
Interrupt triggering control bits (n = 0 ~ 7) The interrupt can be triggered by a rising edge or falling edge of the interrupt signal, as determined by the value in this bit. Rising edge trigger Falling edge trigger PCI-1761 User Manual... -
Page 35: Interrupt Control Register - Base+3H/4H/5H
