3.5.2 Configuring a PCI Bridge Device

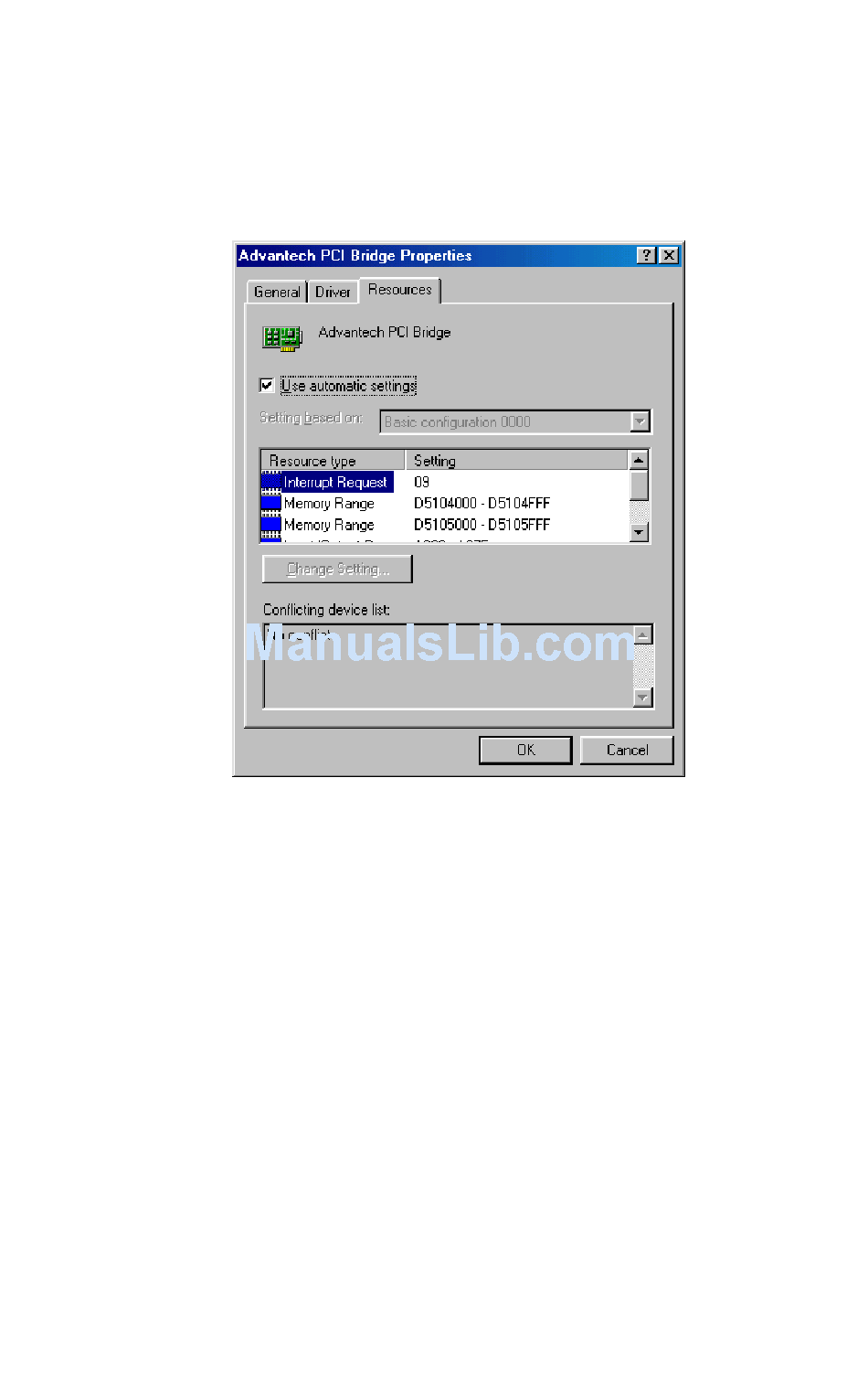

Double-click the Advantech PCI Bridge device to evoke its Properties
page, and then select the Resources tab on the Properties page to look up
or configure the current configuration of the PCI Bridge device to make
sure there are no conflicting devices. Click other tabs to look up or con-
figure the device.
Note: The Input/Output Range information is helpful to recog-
nize the communication port attached to the device.
After you have made necessary changes or if you are satisfied with the
default settings, click OK to accept. If you want to cancel the configura-
tion, just click Cancel.

3.5.3 Configuring Ports

The ports will be configured automatically, so you don't need to do any-
thing.
53 Chapter 3
