5.1.6 PCI-1610AUP/UP

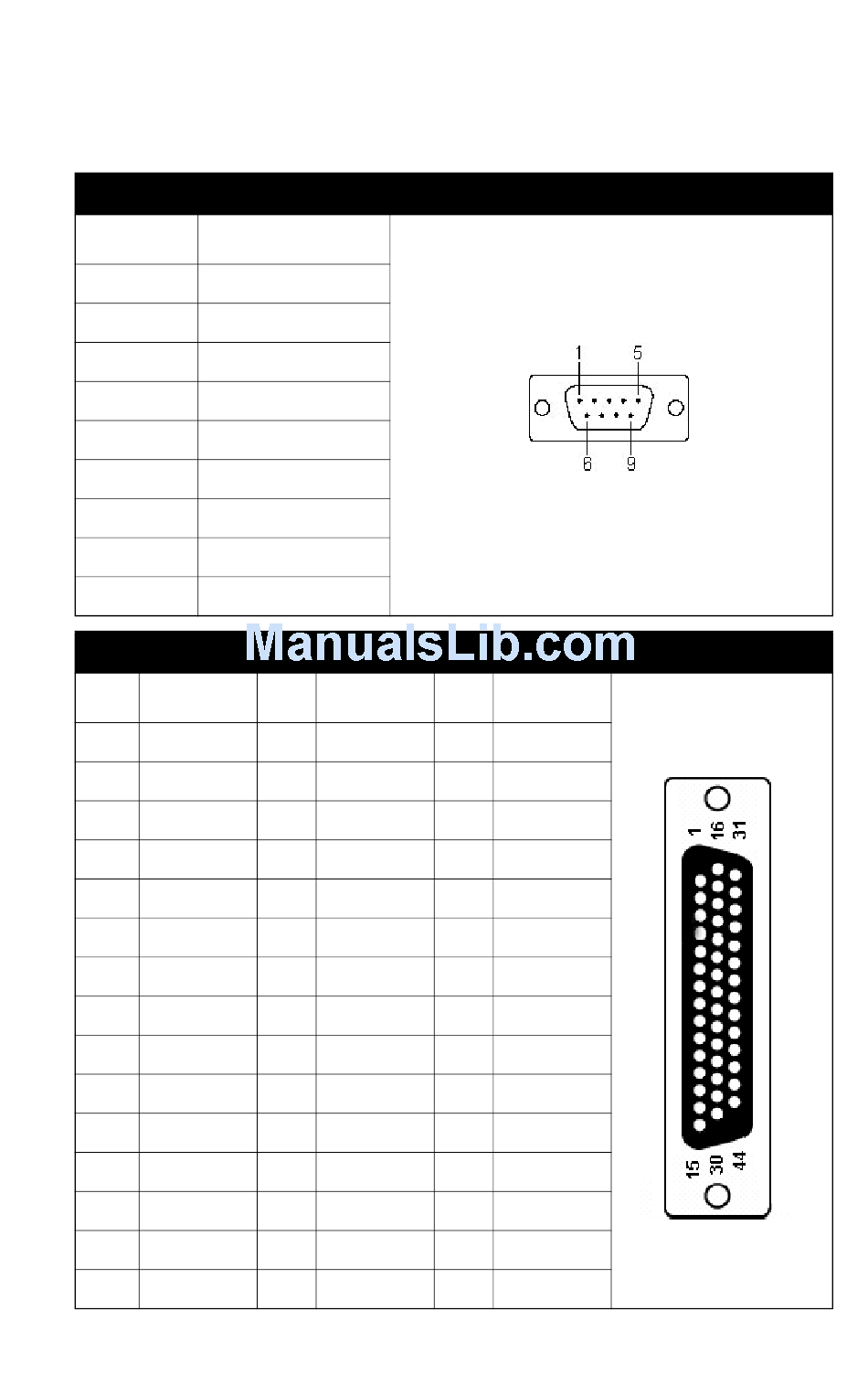

The following tables and figures show the pin assignments for the PCI-
1610AUP/UP card's male DB9 on the cable and female DB44 on the
bracket in RS-232 mode.
Table 5.10: PCI-1610AUP/UP male DB9 on cable
Pin
1
2
3
4
5
6
7
8
9
Table 5.11: PCI-1610AUP/UP female DB44 on bracket
Pin RS-232
1 1_TxD
2 1_RxD
3 1_RTS
4 -
5 2_TxD
6 2_RxD
7 2_RTS
8 -
9 3_TxD
10 3_RxD
11 3_RTS
12 -
13 4_TxD
14 4_RxD
15 4_RTS
PCI-COMMUNICATION User Manual 80
RS-232
DCD
RxD
TxD
DTR
GND
DSR
RTS
CTS
RI
Pin RS-232
16 1_CTS
17 1_DTR
18 1_DSR
19 -
20 2_CTS
21 2_DTR
22 2_DSR
23 -
24 3_CTS
25 3_DTR
26 3_DSR
27 -
28 4_CTS
29 4_DTR
30 4_DSR
Pin RS-232
31 1_DCD
32 1_RI
33 1_GND
34 -
35 2_DCD
36 2_RI
37 2_GND
38 -
39 3_DCD
40 3_RI
41 3_GND
42 4_DCD
43 4_RI
44 4_GND
