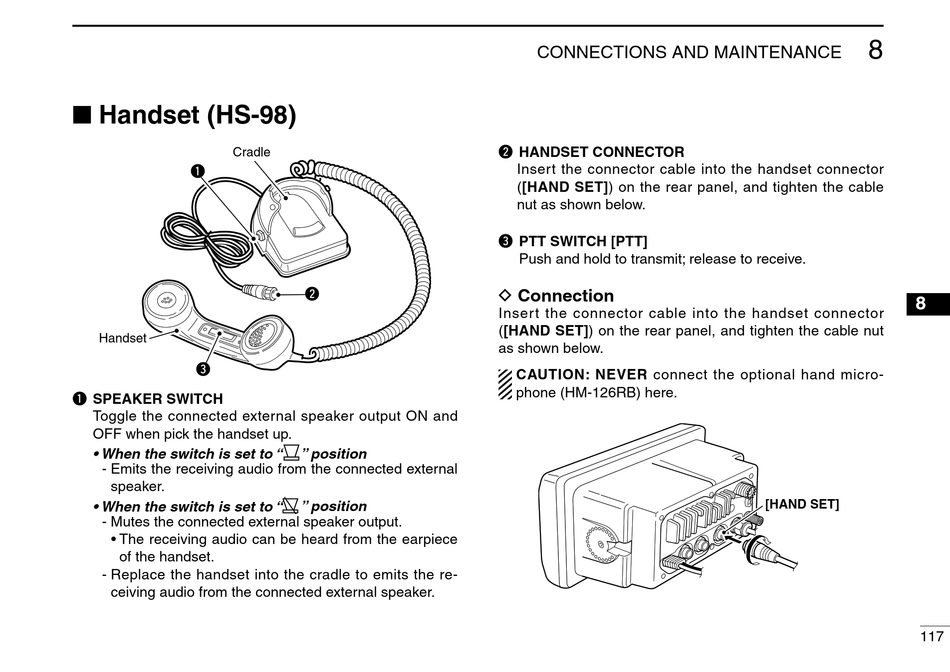

n Handset (HS-98)
Cradle
q
Handset
e
q SPEAKER SWITCH
Toggle the connected external speaker output ON and
OFF when pck the handset up.
• When the switch is set to "
- Emts the recevng audo from the connected external
speaker.
• When the switch is set to "
- Mutes the connected external speaker output.
• The recevng audo can be heard from the earpece
of the handset.
- Replace the handset nto the cradle to emts the re-
cevng audo from the connected external speaker.
w
" position
" position
CONNECTIONS AND MAINTENANCE
w HANDSET CONNECTOR
Insert the connector cable nto the handset connector
([HAND SET]) on the rear panel, and tghten the cable
nut as shown below.
e PTT SWITCH [PTT]
Push and hold to transmt; release to receve.
D Connection
Insert the connector cable nto the handset connector
([HAND SET]) on the rear panel, and tghten the cable nut
as shown below.
CAUTION: NEVER connect the optonal hand mcro-
phone (HM-126RB) here.
