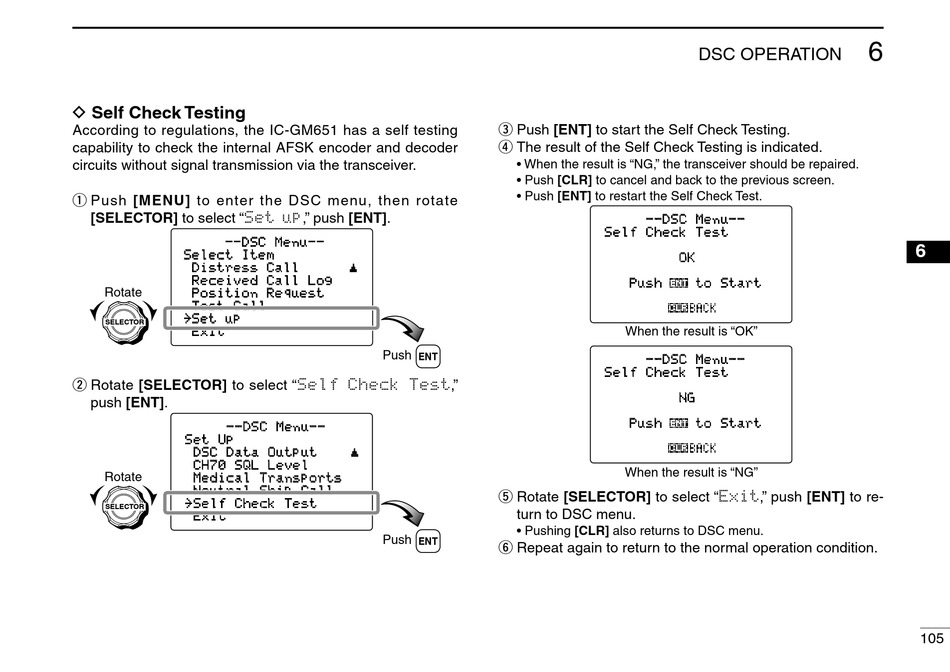

D Self Check Testing

Accordng to regulatons, the IC-GM651 has a self testng
capablty to check the nternal AFSK encoder and decoder
crcuts wthout sgnal transmsson va the transcever.
q Push [MENU] to enter the DSC menu, then rotate
[SELECTOR] to select "Set up," push [ENT].
--DSC Menu--
Select Item
Distress Call
Received Call Log
Rotate
Position Request
Test Call
˘Set up
SELECTOR
Exit
w Rotate [SELECTOR] to select "Self Check Test,"
push [ENT].
--DSC Menu--
Set Up
DSC Data Output
CH70 SQL Level
Rotate
Medical Transports
Neutral Ship Call
˘Self Check Test
SELECTOR
Exit
e Push [ENT] to start the Self Check Testng.
r The result of the Self Check Testng s ndcated.
• When the result s "NG," the transcever should be repared.
• Push [CLR] to cancel and back to the prevous screen.
• Push [ENT] to restart the Self Check Test.
≤
Push
≤
t Rotate [SELECTOR] to select "Exit," push [ENT] to re-
turn to DSC menu.
• Pushng [CLR] also returns to DSC menu.
Push
y Repeat agan to return to the normal operaton condton.
DSC OPERATION
--DSC Menu--
Self Check Test
OK
Push to Start
When the result is "OK"
--DSC Menu--
Self Check Test
NG
Push to Start
When the result is "NG"
