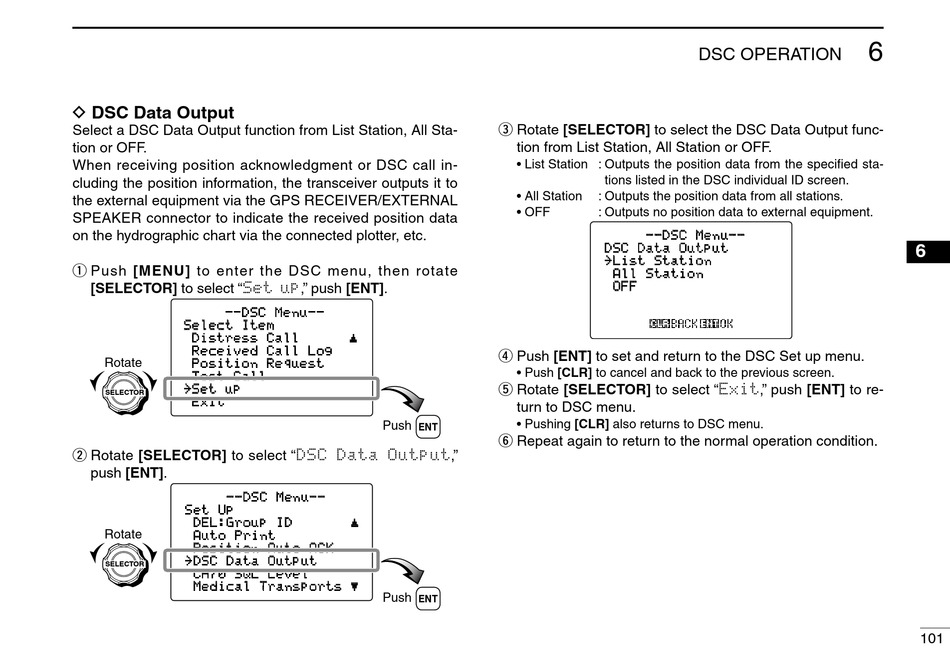

D DSC Data Output

Select a DSC Data Output functon from Lst Staton, All Sta-
ton or OFF.
When recevng poston acknowledgment or DSC call n-
cludng the poston nformaton, the transcever outputs t to
the external equpment va the GPS RECEIVER/EXTERNAL
SPEAKER connector to ndcate the receved poston data
on the hydrographc chart va the connected plotter, etc.
q Push [MENU] to enter the DSC menu, then rotate
[SELECTOR] to select "Set up," push [ENT].
--DSC Menu--
Select Item
Distress Call
Received Call Log
Rotate
Position Request
Test Call
˘Set up
SELECTOR
Exit
w Rotate [SELECTOR] to select "DSC Data Output,"
push [ENT].
--DSC Menu--
Set Up
DEL:Group ID
Rotate
Auto Print
Position Auto ACK
˘DSC Data Output
SELECTOR
CH70 SQL Level
Medical Transports ≥
e Rotate [SELECTOR] to select the DSC Data Output func-
ton from Lst Staton, All Staton or OFF.
• Lst Staton : Outputs the poston data from the specfied sta-
• All Staton
• OFF
≤
r Push [ENT] to set and return to the DSC Set up menu.
• Push [CLR] to cancel and back to the prevous screen.
t Rotate [SELECTOR] to select "Exit," push [ENT] to re-
turn to DSC menu.
• Pushng [CLR] also returns to DSC menu.
Push
y Repeat agan to return to the normal operaton condton.
≤
Push
DSC OPERATION
tons lsted n the DSC ndvdual ID screen.
: Outputs the poston data from all statons.
: Outputs no poston data to external equpment.
--DSC Menu--
DSC Data Output
˘List Station
All Station
OFF
