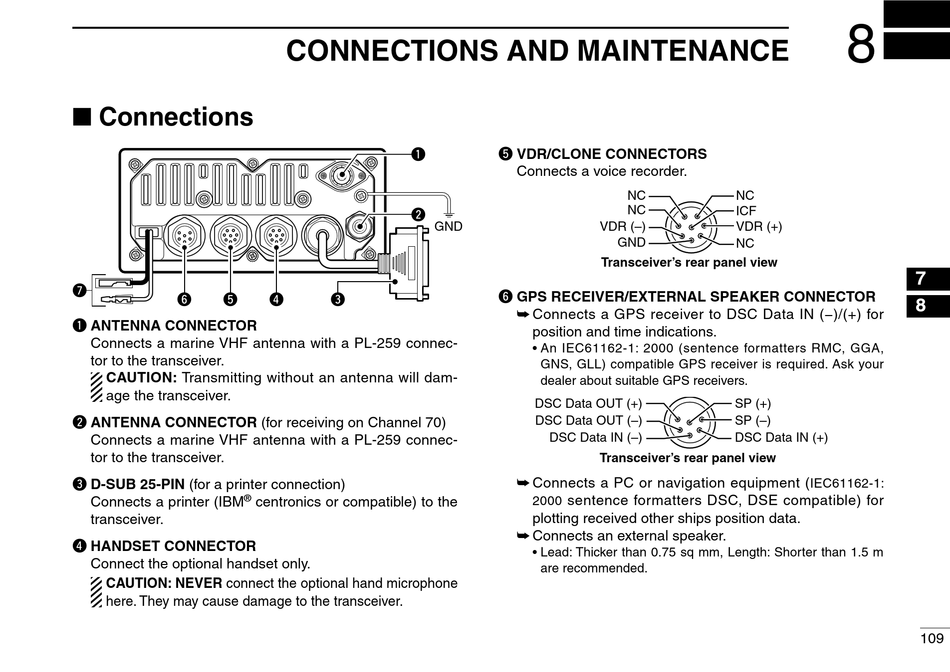

n Connections
u
y t
q ANTENNA CONNECTOR
Connects a marne VHF antenna wth a PL-259 connec-
tor to the transcever.
CAUTION: Transmttng wthout an antenna wll dam-
age the transcever.
w ANTENNA CONNECTOR (for recevng on Channel 70)
Connects a marne VHF antenna wth a PL-259 connec-
tor to the transcever.
e D-SUB 25-PIN (for a prnter connecton)
®
Connects a prnter (IBM
transcever.
r HANDSET CONNECTOR
Connect the optonal handset only.
CAUTION: NEVER connect the optonal hand mcrophone
here. They may cause damage to the transcever.

CONNECTIONS AND MAINTENANCE

q
w
GND
r e
centroncs or compatble) to the
t VDR/CLONE CONNECTORS
Connects a voce recorder.
NC
NC
VDR (–)
GND
Transceiver's rear panel view
y GPS RECEIVER/EXTERNAL SPEAKER CONNECTOR
➥ Connects a GPS recever to DSC Data IN (−)/(+) for
poston and tme ndcatons.
• An IEC61162-1: 2000 (sentence formatters RMC, GGA,
GNS, GLL) compatble GPS recever s requred. Ask your
dealer about sutable GPS recevers.
DSC Data OUT (+)
DSC Data OUT (–)
DSC Data IN (–)
Transceiver's rear panel view
➥ Connects a PC or navgaton equpment (
sentence formatters DSC, DSE compatble) for
2000
plottng receved other shps poston data.
➥ Connects an external speaker.
• Lead: Thcker than 0.75 sq mm, Length: Shorter than 1.5 m
are recommended.
8
NC
ICF
VDR (+)
NC
SP (+)
SP (–)
DSC Data IN (+)
IEC61162-1:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
109
