Mb-75 NstallatOn - Icom IC-GM651 Instruction Manual

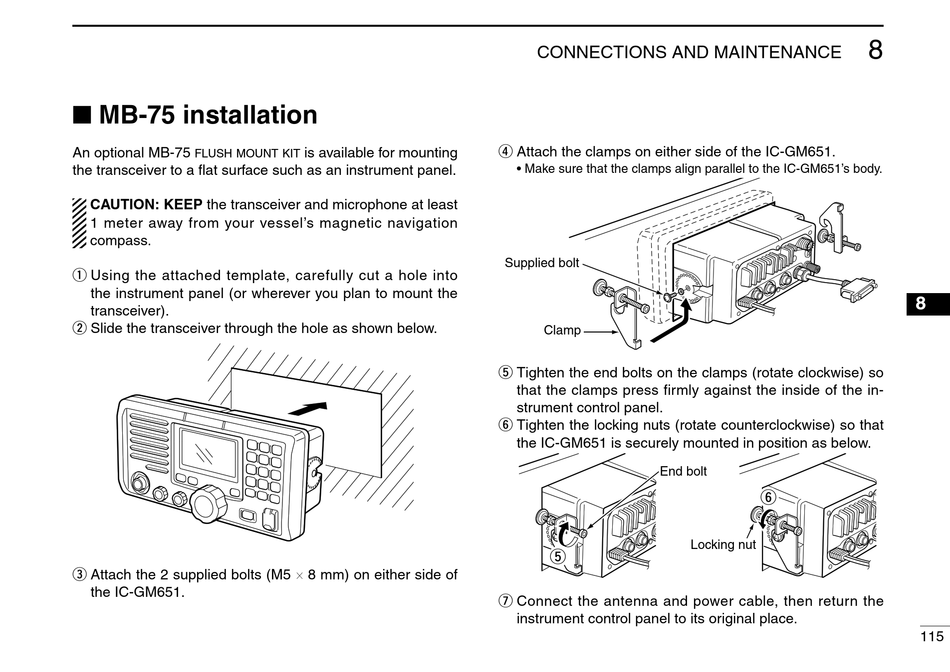

n MB-75 installation
An optonal MB-75
flush mount kit
the transcever to a flat surface such as an nstrument panel.
CAUTION: KEEP the transcever and mcrophone at least
1 meter away from your vessel's magnetc navgaton
compass.
q Usng the attached template, carefully cut a hole nto
the nstrument panel (or wherever you plan to mount the
transcever).
w Slde the transcever through the hole as shown below.
e Attach the 2 suppled bolts (M5 × 8 mm) on ether sde of
the IC-GM651.
s avalable for mountng
CONNECTIONS AND MAINTENANCE
r Attach the clamps on ether sde of the IC-GM651.
• Make sure that the clamps algn parallel to the IC-GM651's body.
Supplied bolt
Clamp
t Tghten the end bolts on the clamps (rotate clockwse) so
that the clamps press frmly aganst the nsde of the n-
strument control panel.
y Tghten the lockng nuts (rotate counterclockwse) so that
the IC-GM651 s securely mounted n poston as below.
End bolt
t
u Connect the antenna and power cable, then return the
nstrument control panel to ts orgnal place.
8
y
Locking nut
