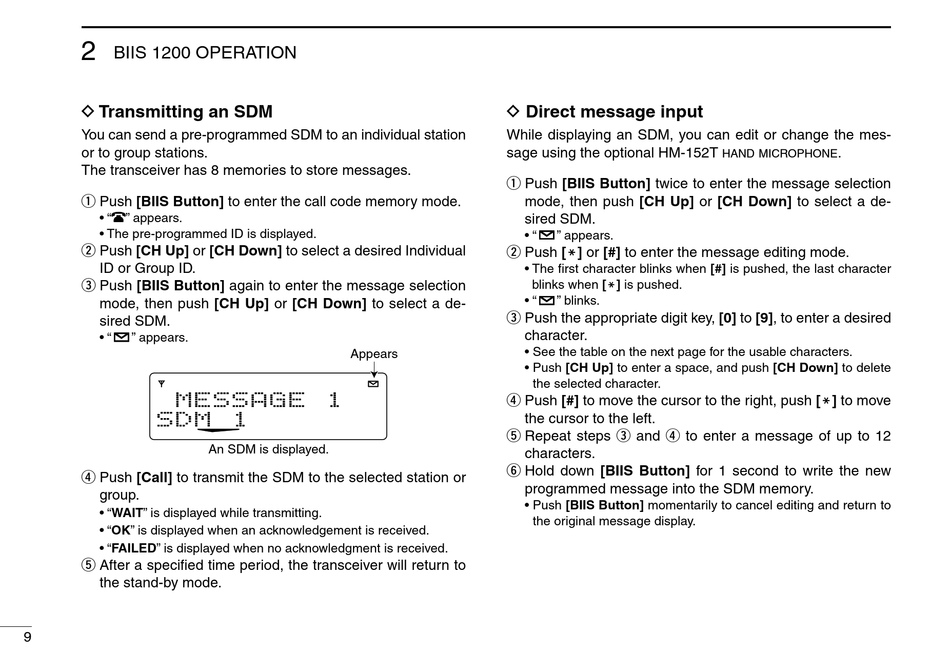

D Transmitting An Sdm - Icom IC-F6062D Operating Manual

2
BIIS 1200 OPERATION

D Transmitting an SDM

You can send a pre-programmed SDM to an individual station
or to group stations.
The transceiver has 8 memories to store messages.
q Push [BIIS Button] to enter the call code memory mode.
• " " appears.
• The pre-programmed ID is displayed.
w Push [CH Up] or [CH Down] to select a desired Individual
ID or Group ID.
e Push [BIIS Button] again to enter the message selection
mode, then push [CH Up] or [CH Down] to select a de-
sired SDM.
• " " appears.
M E S S A G E
S D M
r Push [Call] to transmit the SDM to the selected station or
group.
• "WAIT" is displayed while transmitting.
• "OK" is displayed when an acknowledgement is received.
• "FAILED" is displayed when no acknowledgment is received.
t After a specified time period, the transceiver will return to
the stand-by mode.
9
Appears
1
1
An SDM is displayed.
D Direct message input
While displaying an SDM, you can edit or change the mes-
sage using the optional HM-152T
q Push [BIIS Button] twice to enter the message selection
mode, then push [CH Up] or [CH Down] to select a de-
sired SDM.
• " " appears.
w Push [M] or [#] to enter the message editing mode.
• The first character blinks when [#] is pushed, the last character
blinks when [M] is pushed.
• " " blinks.
e Push the appropriate digit key, [0] to [9], to enter a desired
character.
• See the table on the next page for the usable characters.
• Push [CH Up] to enter a space, and push [CH Down] to delete
the selected character.
r Push [#] to move the cursor to the right, push [M] to move
the cursor to the left.
t Repeat steps e and r to enter a message of up to 12
characters.
y Hold down [BIIS Button] for 1 second to write the new
programmed message into the SDM memory.
• Push [BIIS Button] momentarily to cancel editing and return to
the original message display.
.
hand microphone
