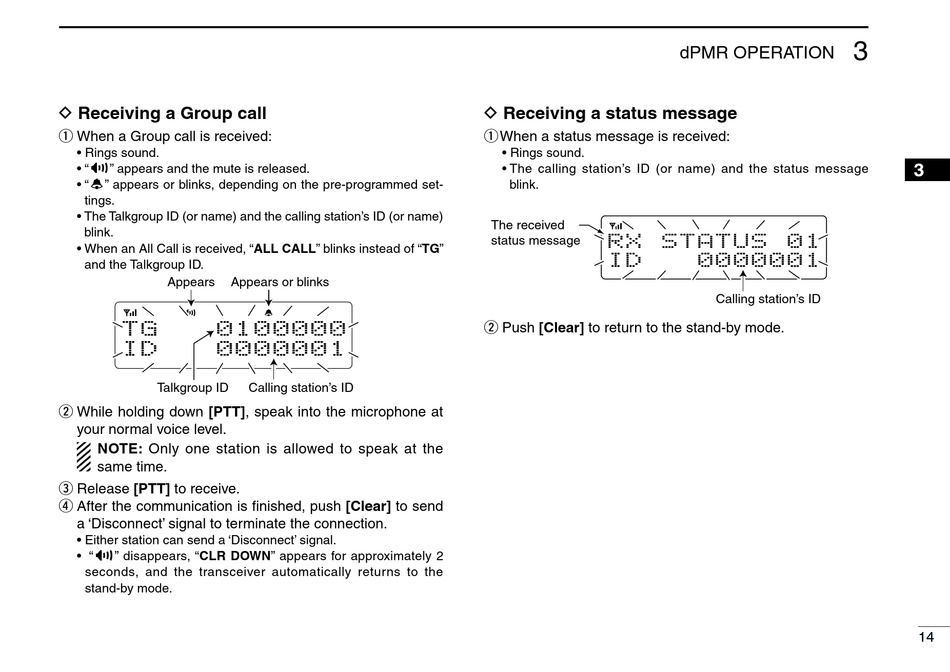

D Receiving A Group Call - Icom IC-F6062D Operating Manual

D Receiving a Group call

q When a Group call is received:
• Rings sound.
• " " appears and the mute is released.
• " " appears or blinks, depending on the pre-programmed set-
tings.
• The Talkgroup ID (or name) and the calling station's ID (or name)
blink.
• When an All Call is received, "ALL CALL" blinks instead of "TG"
and the Talkgroup ID.
Appears Appears or blinks
T G 0 1 0 0 0 0 0
I D 0 0 0 0 0 0 1
Talkgroup ID
w While holding down [PTT], speak into the microphone at
your normal voice level.
NOTE: Only one station is allowed to speak at the
same time.
e Release [PTT] to receive.
r After the communication is finished, push [Clear] to send
a 'Disconnect' signal to terminate the connection.
• Either station can send a 'Disconnect' signal.
• " " disappears, "CLR DOWN" appears for approximately 2
seconds, and the transceiver automatically returns to the
stand-by mode.
Calling station's ID
D Receiving a status message
q When a status message is received:
• Rings sound.
• The calling station's ID (or name) and the status message
blink.
The received
R X S T A T U S
status message
I D
w Push [Clear] to return to the stand-by mode.
3
dPMR OPERATION
0 1
0 0 0 0 0 0 1
Calling station's ID
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
14 14
