3

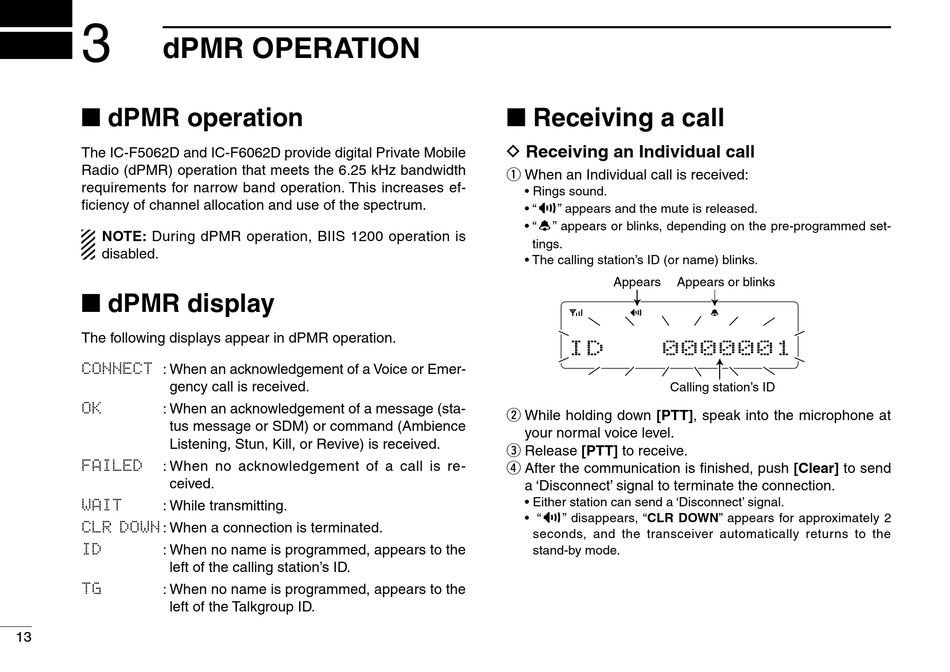

dPMR OPERATION

■ dPMR operation
The IC-F5062D and IC-F6062D provide digital Private Mobile
Radio (dPMR) operation that meets the 6.25 kHz bandwidth
requirements for narrow band operation. This increases ef-
ficiency of channel allocation and use of the spectrum.
NOTE: During dPMR operation, BIIS 1200 operation is
disabled.

■ dPMR display

The following displays appear in dPMR operation.
CONNECT : When an acknowledgement of a Voice or Emer-
gency call is received.
: When an acknowledgement of a message (sta-
OK
tus message or SDM) or command (Ambience
Listening, Stun, Kill, or Revive) is received.
: When no acknowledgement of a call is re-
FAILED
ceived.
: While transmitting.
WAIT
CLR DOWN : When a connection is terminated.
: When no name is programmed, appears to the
ID
left of the calling station's ID.
: When no name is programmed, appears to the
TG
left of the Talkgroup ID.
13 13

■ Receiving a call

D Receiving an Individual call
q When an Individual call is received:
• Rings sound.
• " " appears and the mute is released.
• " " appears or blinks, depending on the pre-programmed set-
tings.
• The calling station's ID (or name) blinks.
Appears Appears or blinks
I D 0 0 0 0 0 0 1
Calling station's ID
w While holding down [PTT], speak into the microphone at
your normal voice level.
e Release [PTT] to receive.
r After the communication is finished, push [Clear] to send
a 'Disconnect' signal to terminate the connection.
• Either station can send a 'Disconnect' signal.
• " " disappears, "CLR DOWN" appears for approximately 2
seconds, and the transceiver automatically returns to the
stand-by mode.
