n

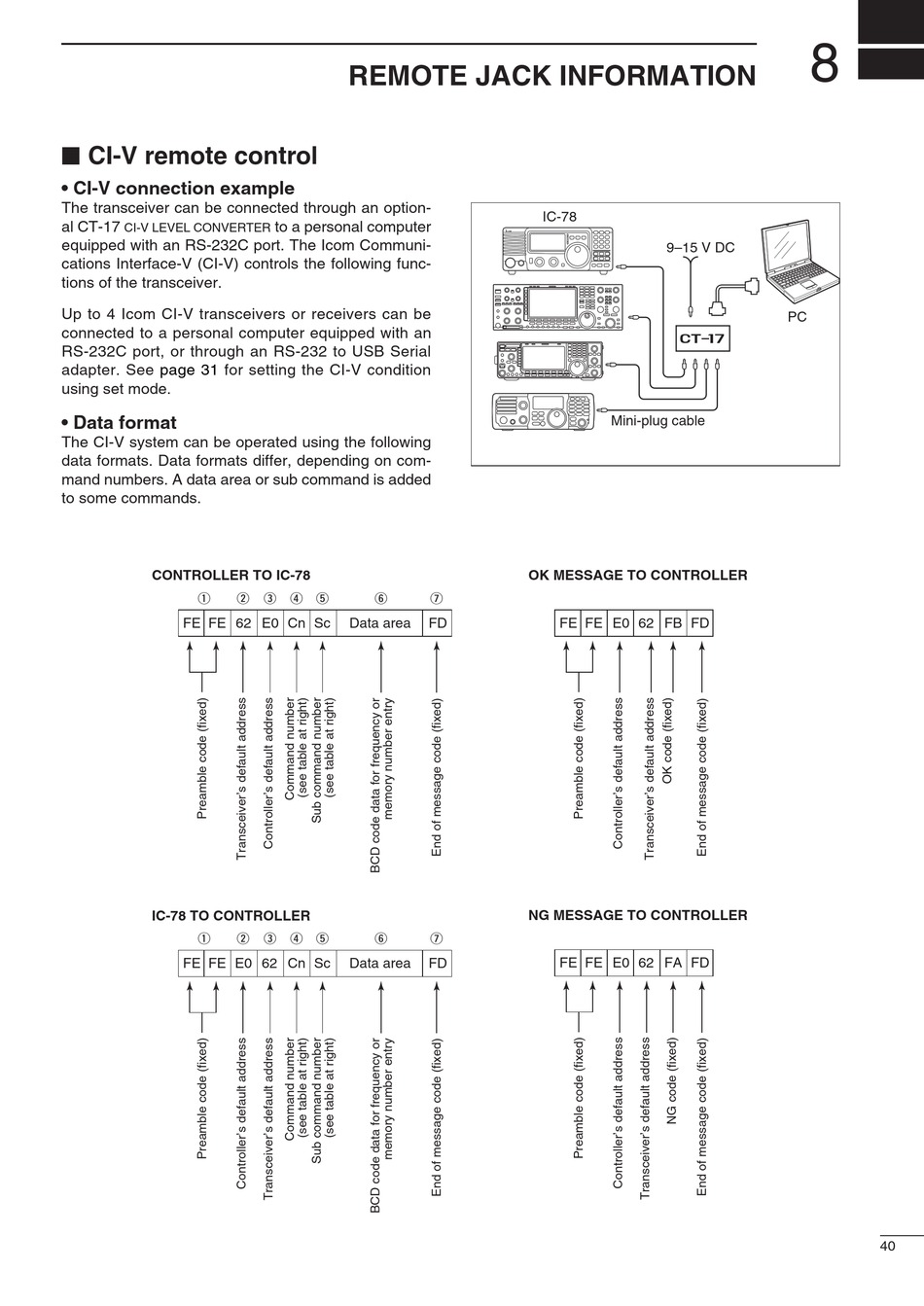

CI-V remote control

• CI-V connection example
The transceiver can be connected through an option-
al CT-17
CI-V LEVEL CONVERTER
equipped with an RS-232C port. The Icom Communi-
cations Interface-V (CI-V) controls the following func-
tions of the transceiver.
Up to 4 Icom CI-V transceivers or receivers can be
connected to a personal computer equipped with an
RS-232C port, or through an RS-232 to USB Serial
adapter. See
page 31
for setting the CI-V condition
using set mode.
• Data format
The CI-V system can be operated using the following
data formats. Data formats differ, depending on com-
mand numbers. A data area or sub command is added
to some commands.
CONTROLLER TO IC-78
q
FE
FE 62 E0 Cn Sc
IC-78 TO CONTROLLER
q
FE
FE E0 62 Cn Sc

REMOTE JACK INFORMATION

to a personal computer
w
e
r
t
y
Data area
w
e
r
t
y
Data area
IC-78
NB
NR
ANF
METER
V/M
1
A/B
2
SPLIT
3
1.8
=
3.5
7
MW
4
M-CL
5
AGC
6
10
14
18
COMP
7
SCAN
8
VOX
9
21
24
28
MODE
TS
.
RIT
MNF
0
F-INP
ENT
GENE
50
BAND
TUNER
FILTER
P.AMP
ATT
M-CH/RIT
SET
OK MESSAGE TO CONTROLLER
u
FD
FE FE E0 62 FB FD
NG MESSAGE TO CONTROLLER
u
FE FE E0 62 FA FD
FD
9–15 V DC
ct-17
Mini-plug cable
8
PC
40
