Polycom RealPresence Collaboration Server (RMX) 1500 Hardware Guide
•
•
3
4
5
The number of screws to install depends on the rack width.
6
1-10
On the RMX1500/4000 the center hole on the Rack Spacer must be left clear as it is required for
fixing the RMX to the rack post. See Figure 1-2.
On the RMX 2000 the top hole on the Rack Spacer must be left clear as it is required for fixing
the RMX to the rack post. See Figure 1-2.
Adjust the telescopic rack rail runner to the rack opening and mount it onto the marked
position of the rear post as described in step 2.

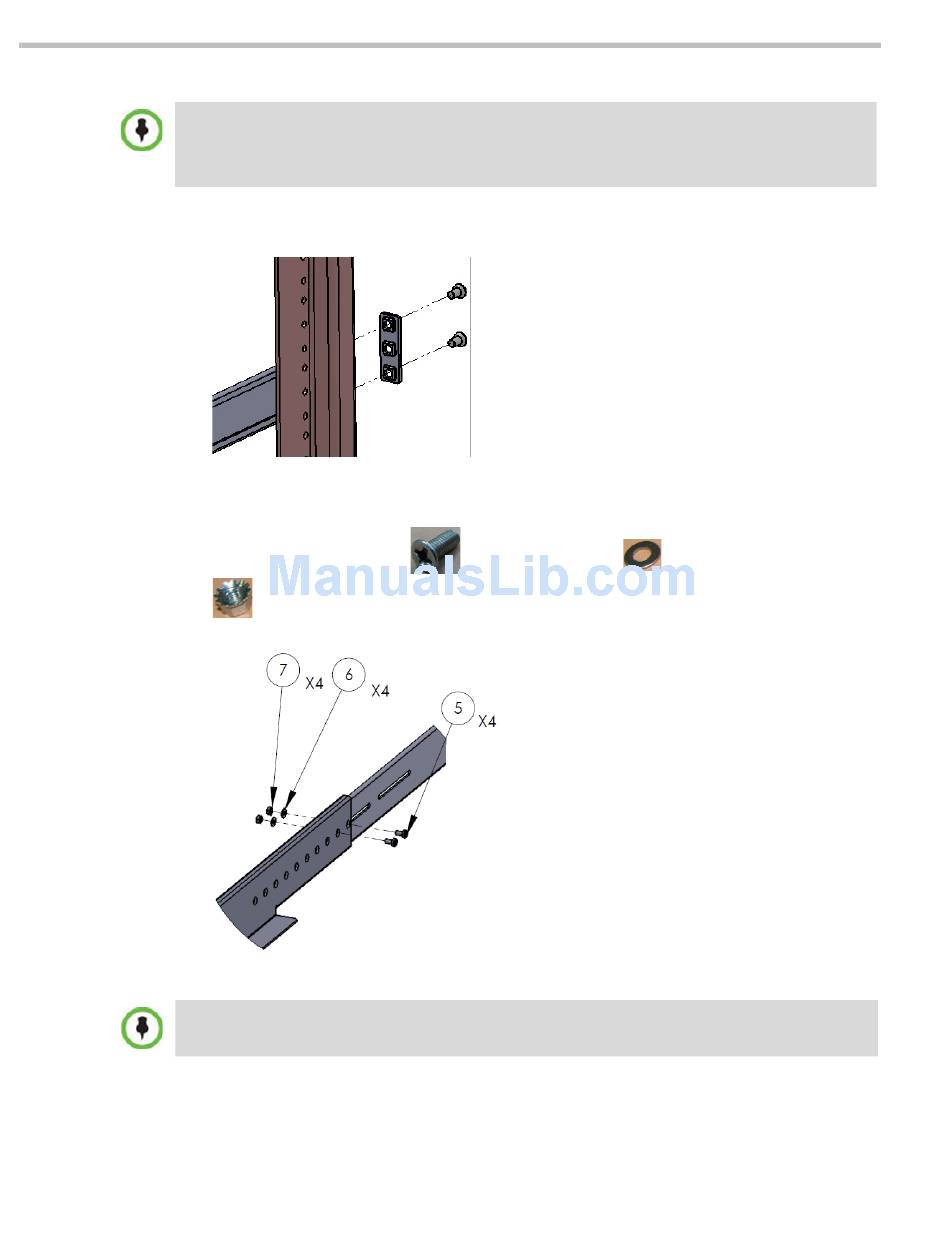

Figure 1-3 Detail of Rear RMX 1500/2000/4000 Rack Spacer Assembly
Repeat steps 2 and 3 for the right rack rail runner.
Install the flat head screw
(item 7) in the middle of the telescopic rack rail runner for added stability as
shown in Figure 1-4.
Figure 1-4 Detail of Left Rail Runner (front internal view)
Repeat step 5 for the right rack rail runner.
(item 5), flat washer (item 6) and nut spring
