Table 1-6
SLOT/Button/LED
USB Slot
VGA Slot
Keyboard Slot
Mouse Slot
ON/OFF Button
READY LED
IN USE LED
ERROR LED

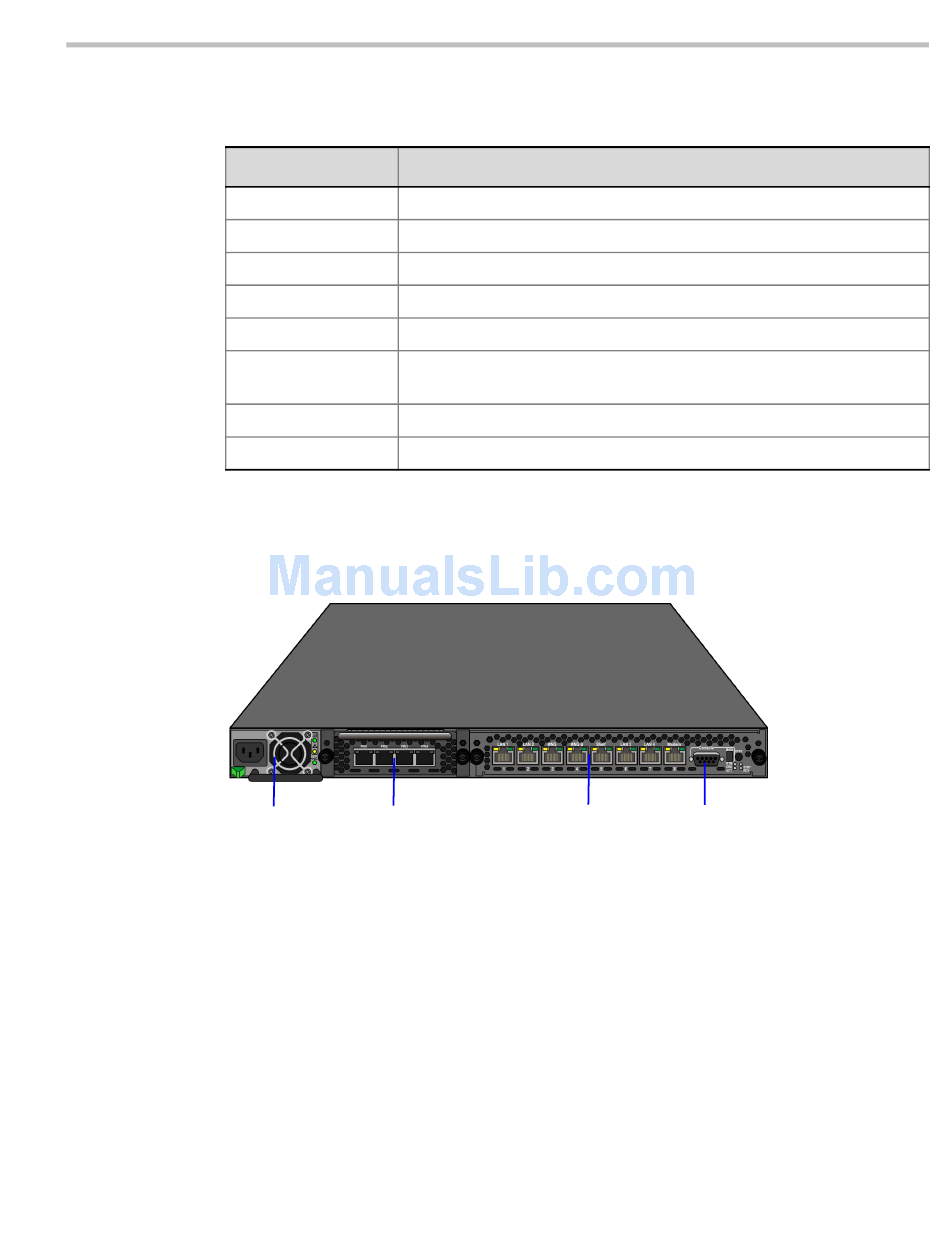

RealPresence Collaboration Server (RMX) 1500 Rear Panel

The RMX 1500 rear panel contains the RTM IP 1500 and optionally, the RTM ISDN 1500. In
addition, the rear panel houses the power supply with fan & AC inlet, and Serial port.
Power Supply
with built in Fan

RTM IP 1500

This card contains an Ethernet Switch that manages the network of the system, routes data
between the cards and components of the system and provides connectivity to external IP
networks. It controls and monitors the system fans and regulates power supply.
The RTM IP 1500 connections include:
•
•
•
•
•
Polycom, Inc.
RMX 1500 Front Panel Description
Description
USB key connection, used for first time configuration.
Monitor connection.
Keyboard connection.
Mouse connection.
Turns the RMX ON or OFF.
Orange - RMX Starting up.
Green - RMX ready/online.
Amber - In use, when a conference is active.
Red - Error.
RTM ISDN 1500
2 signalling & media ports
2 ethernet management ports
Shelf (Manager) port
Modem
1 Serial port
RTM IP 1500 Serial
Slot
Chapter 1-Hardware Description
1-15
