Axminster WS1000TA User Manual page 12

Assembly

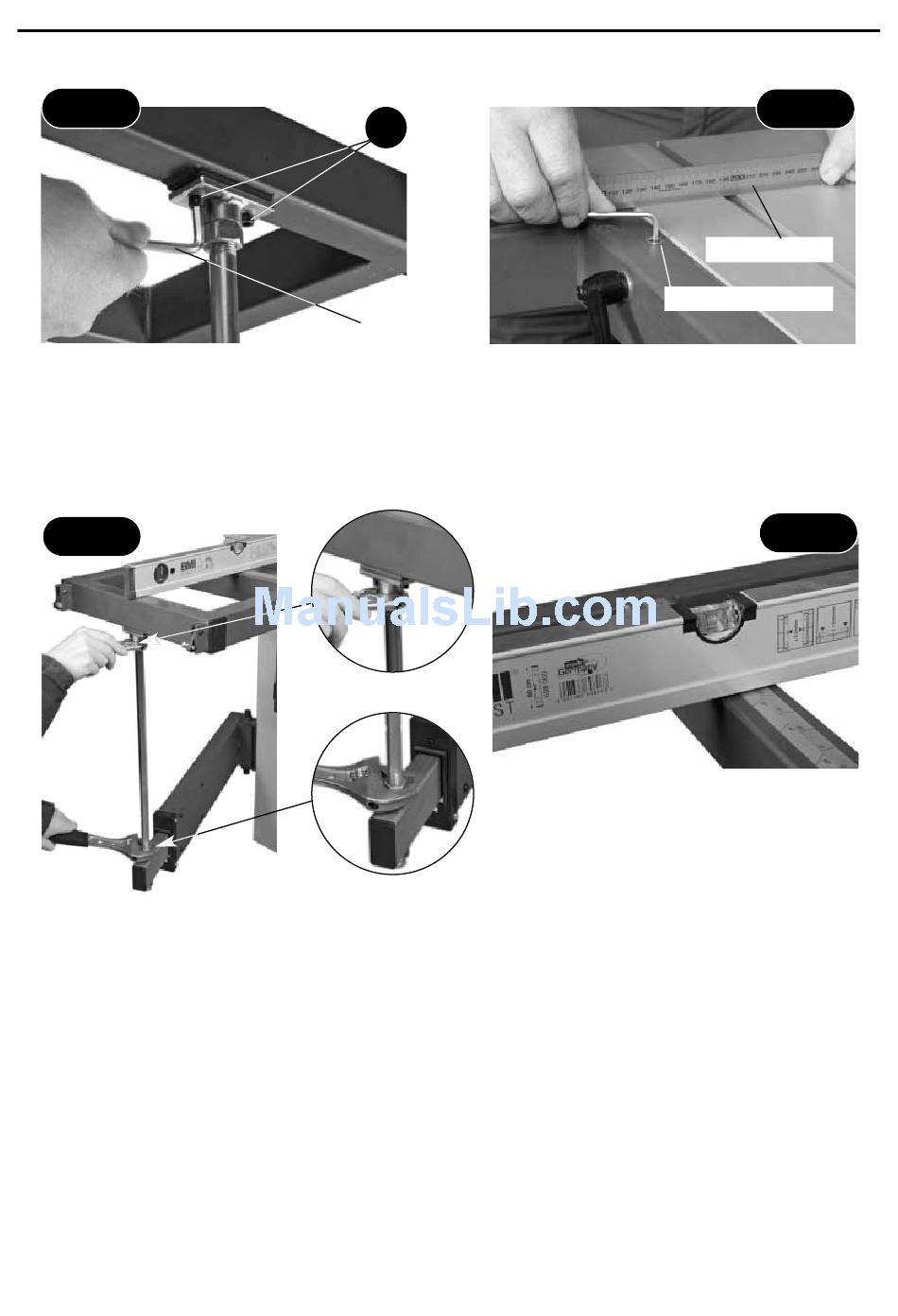

Fig 15
Locate the two M6 x 11mm caphead screws (B5), line up the extention table support rod (B7) bracket with the
pre-drilled holes in the extention table (B1), using the two M6 caphead screws and a 5mm allen key secure the
support rod (B7) to the table (B1) (See fig 15). On top of the extention table there are two adjustment grub
screws, using a straight edge adjust the screws using a 4mm allen key until both sliding and extention tables are
level (See fig 16). (Note: Turn clockwise to raise the extention table, counterclockwise to lower it).
Fig 17
Lift up the left 90˚ degree stop, see fig 19, locate the extention table fence assembly (B2), lower the fence
assembly onto the table casting (B1) making sure the pin beneath the fence inserts into the pre-drilled hole on
top of the table casting (B1), see figs 20 and 21. Push the fence up-against the 90˚ stop, position the angle bracket
(a) up-against the table casting B1 and turning butterfly knob clamps the fence (B2) to the table casting (B1)
(See fig 22). Lastly tighten the lift and shift handle (b) to prevent the pin from moving (See figs 22).
Note: The fence (B2) can be mounted to the opposite side of the table casting (B1) in the same way as
described above.
Continues Over....
12
B5
5mm Allen Key
Place a level on the extention table (B1) and
using two spanners adjust the four nuts on the
support rod (B7) until the extention table (B1)
is level (See figs 17 and 18)
Fig 16
Straght edge
Adjustment screw
Fig 18
