Axminster Woodturning Deluxe Pen Press Instructions

Code 106069
Date: 01.10.2021
5
Adjust the end support if needed to
push or to support the pen
7
Support the push
rod while operating
the toggle press
7mm Disassembly Bushing
Secure the 7mm bushing
1
into the sled clamp
Insert the 7mm tipped
3
end of the push rod
into the pen assembly
6
Lock
nut
2
Inset the pen
mechanism into
the 7mm bushing
Move the sled
4
close to the arm
press and lock in
place
Assembly/Disassembly

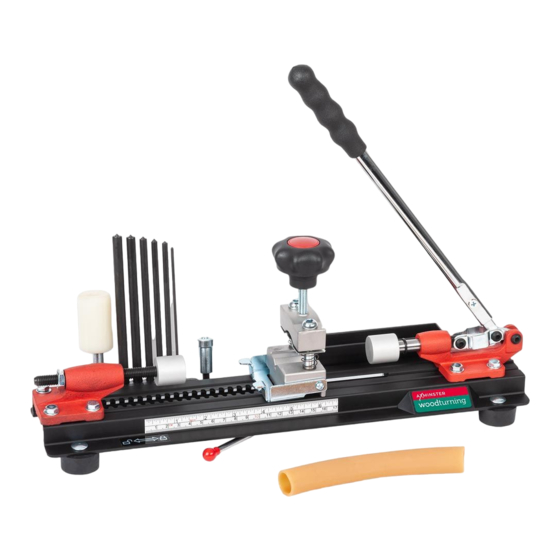

Deluxe Pen Press Instructions
• Combined tool for assembly and disassembly of pens
• Offers reliability, accuracy and control
• Press pen parts together for perfect results
• Allows disassembly of virtually any pen
• Features a strong arm with ergonomic handle
Carefully push
out the pen nib
Remove
the pen
mechanism
from the
bushing
8
5
Support the pen &
carefully push the
pen mechanism out
6
