Dimms; System Board - Intergraph InterServe 800 SL System Reference Manual

18
7. Replace the processor module. See the "Processor Modules" section above for details.
8. Replace the air duct and fan assembly, connecting the fan to the same plug on the
system board from which it was disconnected, and secure the air duct using the four
screws removed previously.

DIMMs

See the section, "Adding Memory," in Chapter 3, for important details on handling DIMMs.
The DIMM sockets are located near the top (front or right) corner of the system board. See
the system board diagrams in Chapter 5, "System Board," for connector and socket locations.
To replace a DIMM:
1. Access the DIMM sockets. See Chapter 1, "Accessing the Components," for details.
2. Press the release tabs outward, away from each other.
3. Grasp the top edge of the DIMM and pull it out of the socket.
4. Remove the new DIMM from the antistatic package.
5. Orient the DIMM so that the notches match the keys in the socket.
6. Push gently straight down until the release tabs snap into place.
7. When you restart the computer, the BIOS detects the new memory automatically.

System Board

You must swap the DIMMs, bus termination card (if installed), and processor module(s)
from the old system board to the new one. See the system board diagrams in Chapter 5,
"System Board," for connector and socket locations.

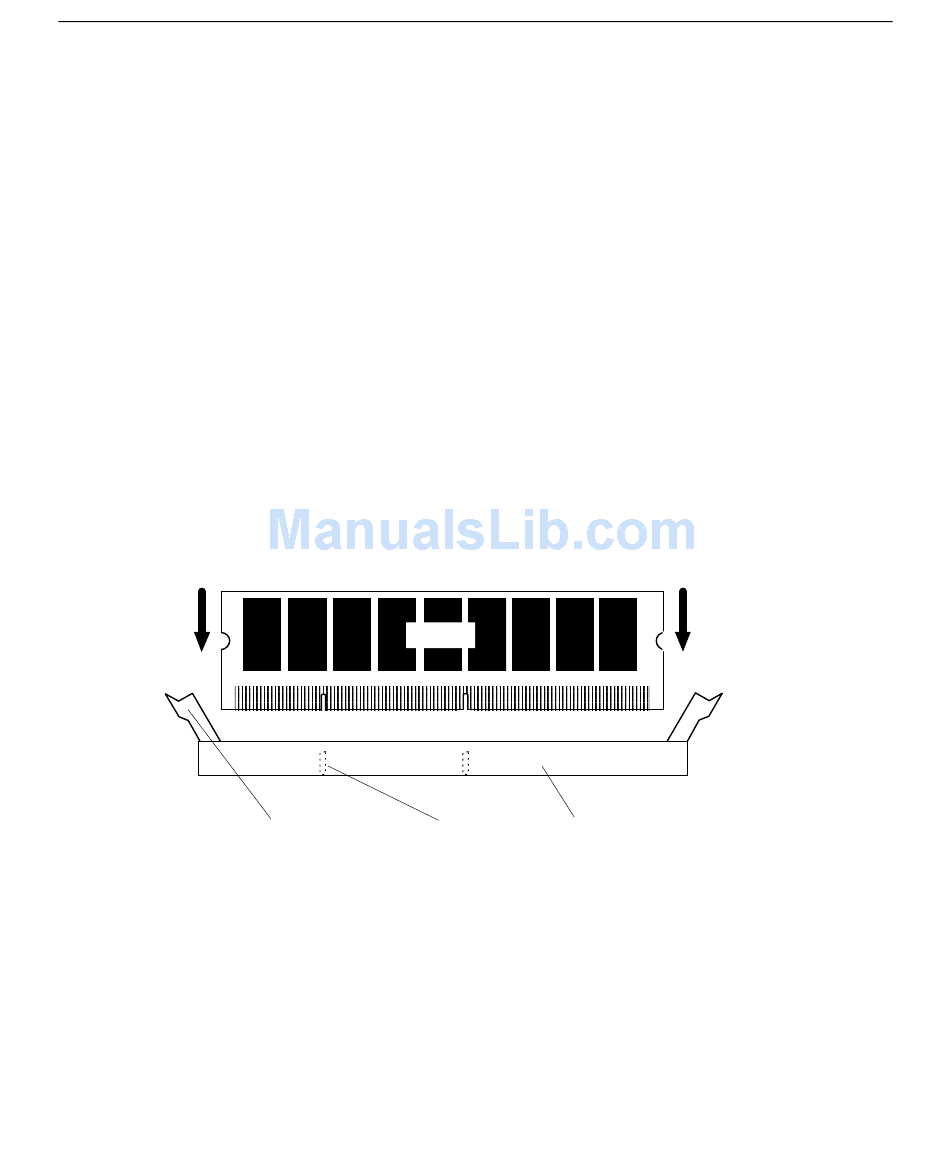

DIMM
Release Tab Notch
DIMM socket
