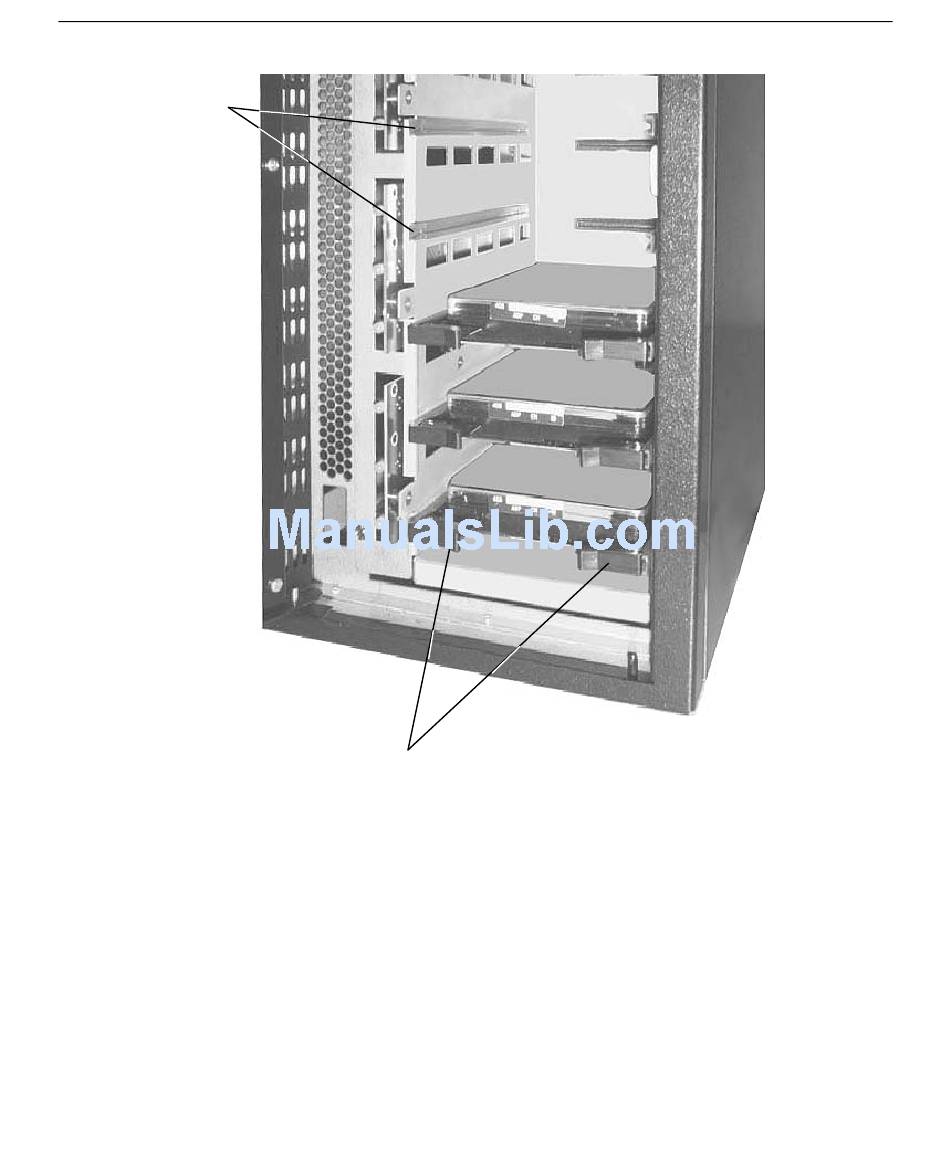

Slot

Guides

Latches

4. To insert the new drive, extend the latching clips on the disk drive and align the rails on

the sides of the drive with the slot guides. The metal casing of the drive faces up.

5. With your thumb, push the drive at the center between the latching clips until it slides

all the way into the slot and firmly engages the connector.

6. Close the latching clips to lock the drive in the slot.

7. Verify that the drive status LED lights. It may be green or amber, solid or flashing,

depending on the status of the array that the drive is in.

8. Label the new drive with the same ADP, CH, and ID numbers used on the replaced

drive.
