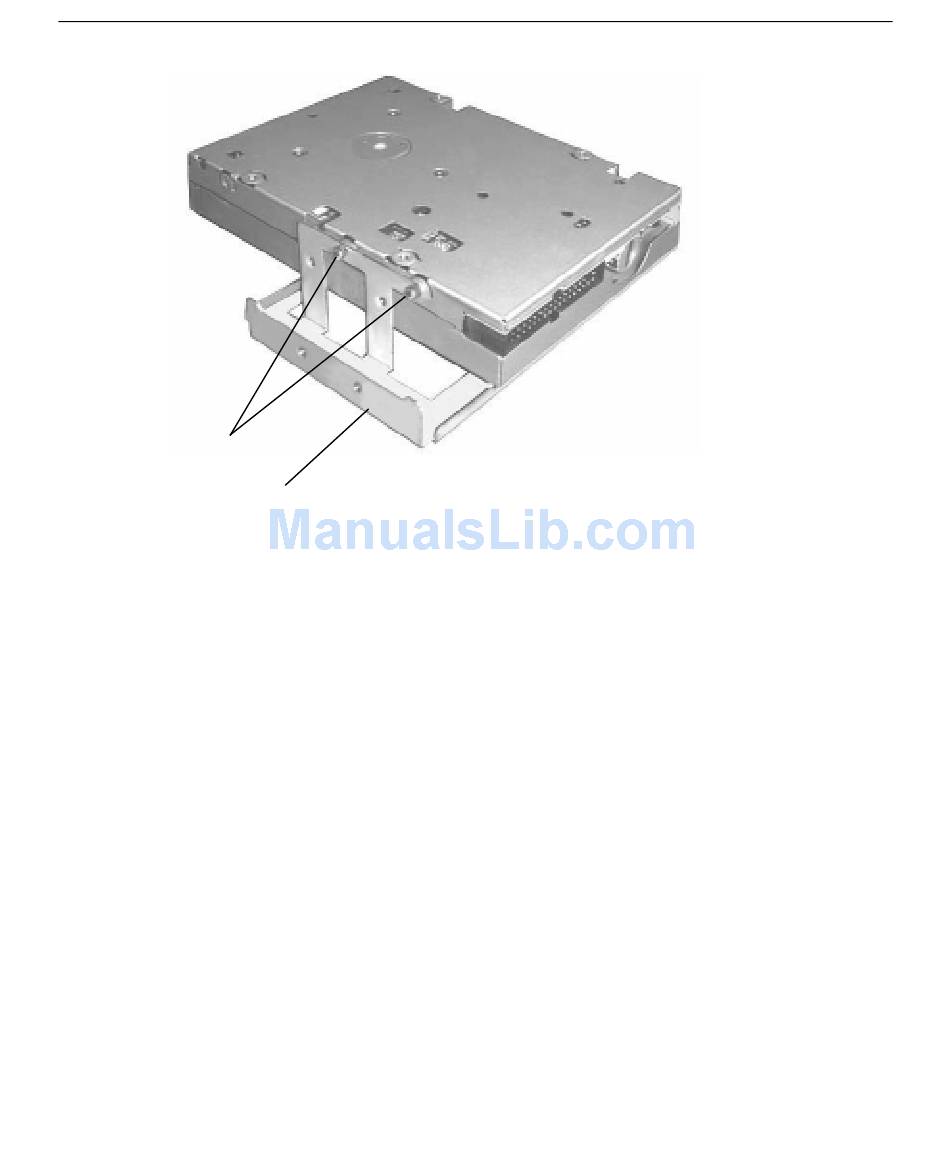

Screws
Bracket
7. Secure the new drive to the bracket using the screws removed in the previous step.
8. Install the drive into the base unit, and secure it using the screws removed in step 3.
9. Connect the previously removed cables to the new drive.
10. Reconnect the EIDE cable to the CD-ROM drive.

RAID Disk Drives

The disk drives in the RAID disk section can be easily replaced as follows.
To replace RAID disk drives:
1. Open the drive access door on the front of the system.
2. Flip the drive latches outward to disengage the RAID disk drive. The LED adjacent to
the drive turns off.
3. After waiting 30 seconds to allow the drive to spin down and park the heads, carefully
eject the drive.
WARNING Handling a spinning drive can cause the heads to crash! Subsequent failures may not
be noticeable for three to six months. Handle RAID disk drives carefully to minimize
repair costs.
