NOTE

If the system is off, the AC OK LED turns green when you turn on the circuit breaker. The

DC OK LED lights when you turn on the system.

4. Turn the spring-lock screw clockwise to secure the power supply.

Chassis Fans (CFAN123)

To replace the chassis fans:

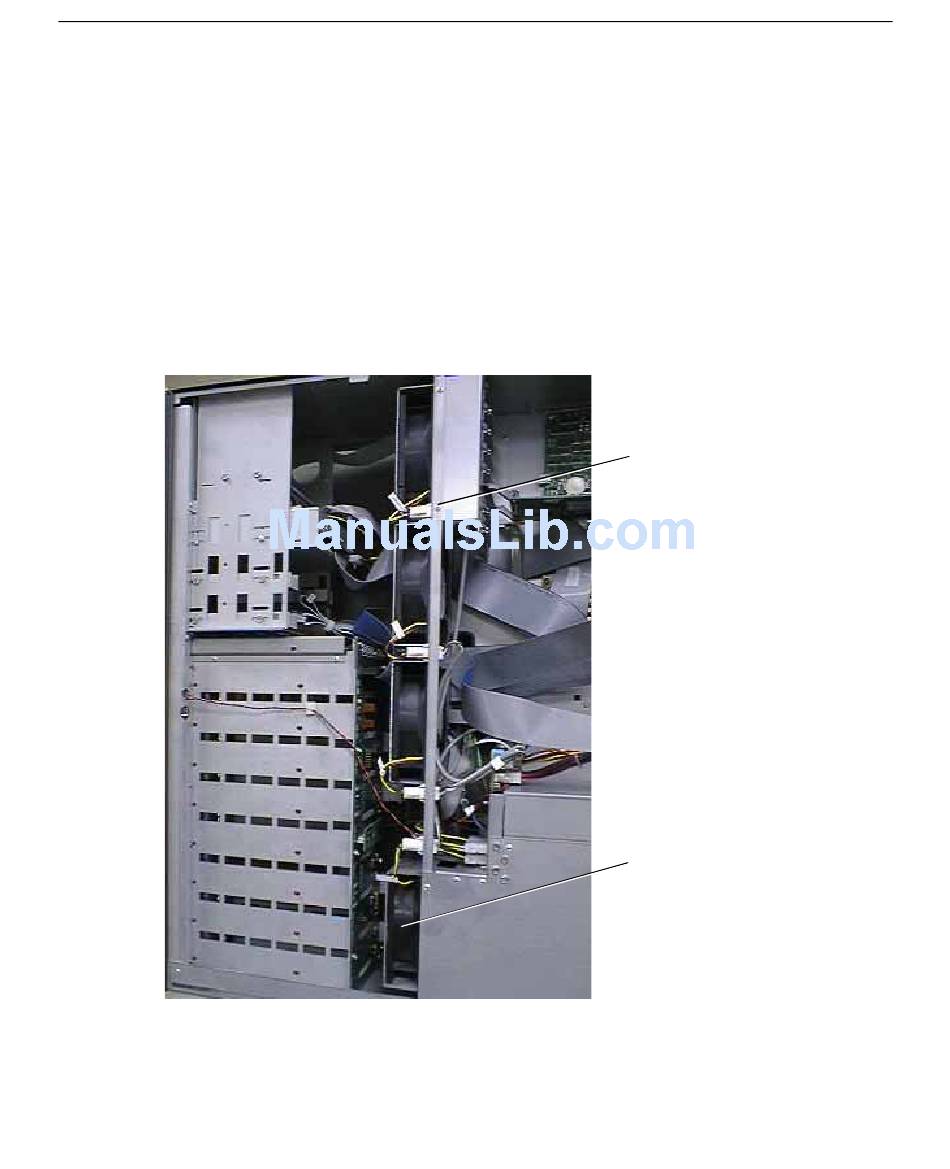

1. Remove the right side panel. The following figure shows the chassis fans from the right

side of the system. (Note that systems with redundant hot swap power supplies only

have the upper three fans installed.)

2. Disconnect the fan power cable from the inline connector. The inline connector is

mounted to the fan bulkhead.

WARNING Ensure the fans stop spinning before continuing.

Fan Bulkhead

and Cables

Chassis Fan

(one of four)
