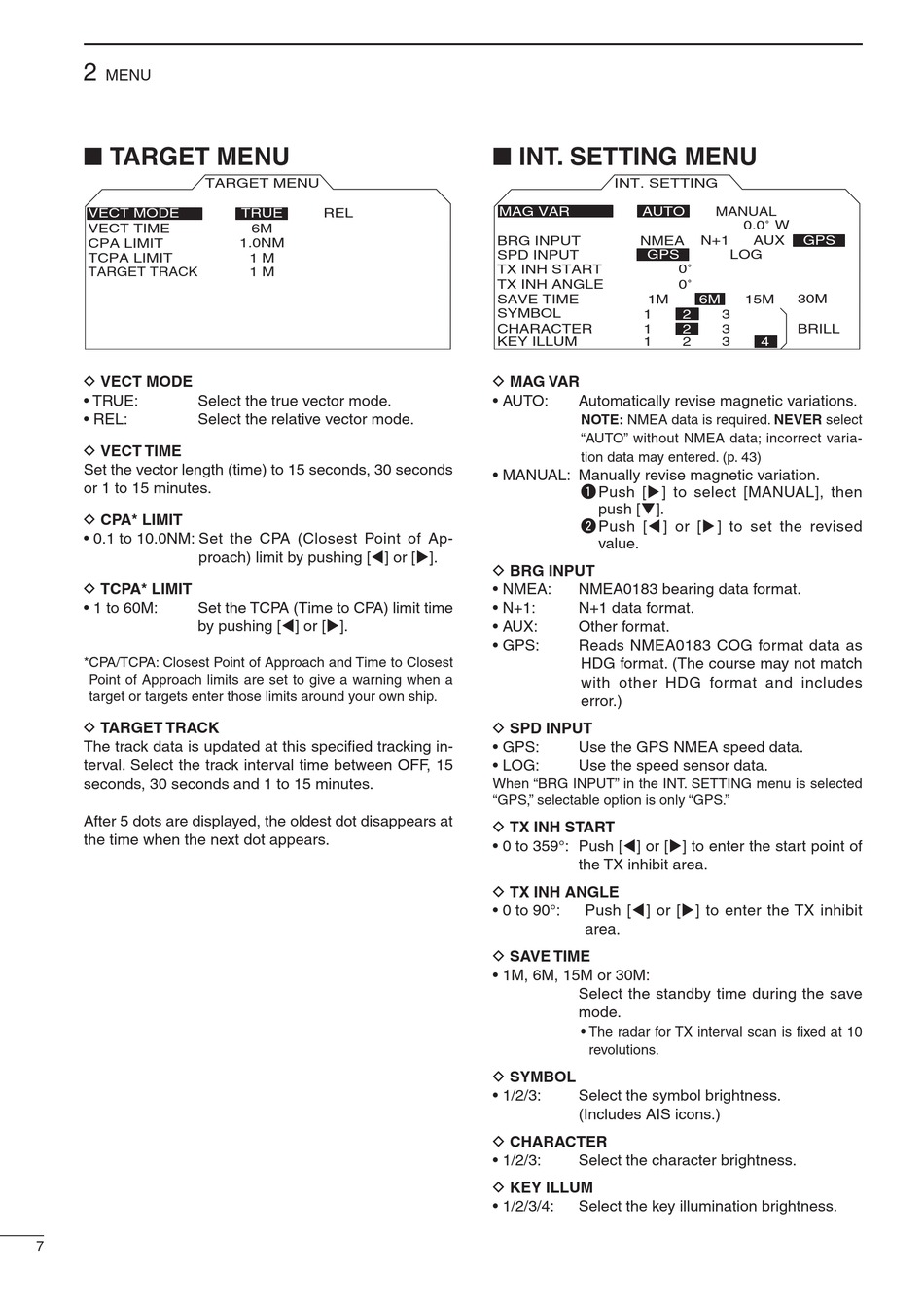

■ TARGET MENU
TARGET MENU
VECT MODE
VECT TIME
CPA LIMIT
TCPA LIMIT
TARGET TRACK
D VECT MODE
• TRUE: Select the true vector mode.
• REL: Select the relative vector mode.
D VECT TIME
Set the vector length (time) to 15 seconds, 30 seconds
or 1 to 15 minutes.
D CPA* LIMIT
• 0.1 to 10.0NM: Set the CPA (Closest Point of Ap-
proach) limit by pushing [t] or [u].
D TCPA* LIMIT
• 1 to 60M: Set the TCPA (Time to CPA) limit time
by pushing [t] or [u].
* CPA/TCPA: Closest Point of Approach and Time to Closest
Point of Approach limits are set to give a warning when a
target or targets enter those limits around your own ship.
D TARGET TRACK
The track data is updated at this specified tracking in-
terval. Select the track interval time between OFF, 15
seconds, 30 seconds and 1 to 15 minutes.
After 5 dots are displayed, the oldest dot disappears at
the time when the next dot appears.
7
TRUE REL
6M
1.0NM
1 M
1 M

■ INT. SETTING MENU

INT. SETTING
AUTO
MAG VAR
BRG INPUT NMEA
SPD INPUT GPS
TX INH START
TX INH ANGLE
SAVE TIME 1M
SYMBOL
1
CHARACTER 1
KEY ILLUM 1
D MAG VAR
• AUTO: Automatically revise magnetic variations.
NOTE: NMEA data is required. NEVER select
"AUTO" without NMEA data; incorrect varia-
tion data may entered. (p. 43)
• MANUAL: Manually revise magnetic variation.
q Push [u] to select [MANUAL], then
push [q].
w Push [t ] or [u ] to set the revised
value.
D BRG INPUT
• NMEA: NMEA0183 bearing data format.
• N+1: N+1 data format.
• AUX: Other format.
• GPS: Reads NMEA0183 COG format data as
HDG format. (The course may not match
with other HDG format and includes
error.)
D SPD INPUT
• GPS: Use the GPS NMEA speed data.
• LOG: Use the speed sensor data.
When "BRG INPUT" in the INT. SETTING menu is selected
"GPS," selectable option is only "GPS."
D TX INH START
• 0 to 359°: Push [t] or [u] to enter the start point of
the TX inhibit area.
D TX INH ANGLE
• 0 to 90°: Push [t] or [u] to enter the TX inhibit
area.
D SAVE TIME
• 1M, 6M, 15M or 30M:
Select the standby time during the save
mode.
• The radar for TX interval scan is fixed at 10
revolutions.
D SYMBOL
• 1/2/3: Select the symbol brightness.
(Includes AIS icons.)
D CHARACTER
• 1/2/3: Select the character brightness.
D KEY ILLUM
• 1/2/3/4: Select the key illumination brightness.
MANUAL
0.0 ˚ W
N+1 AUX GPS
LOG
0 ˚
0
˚
6M 15M 30M
2 3
2 3 BRILL
2 3 4
